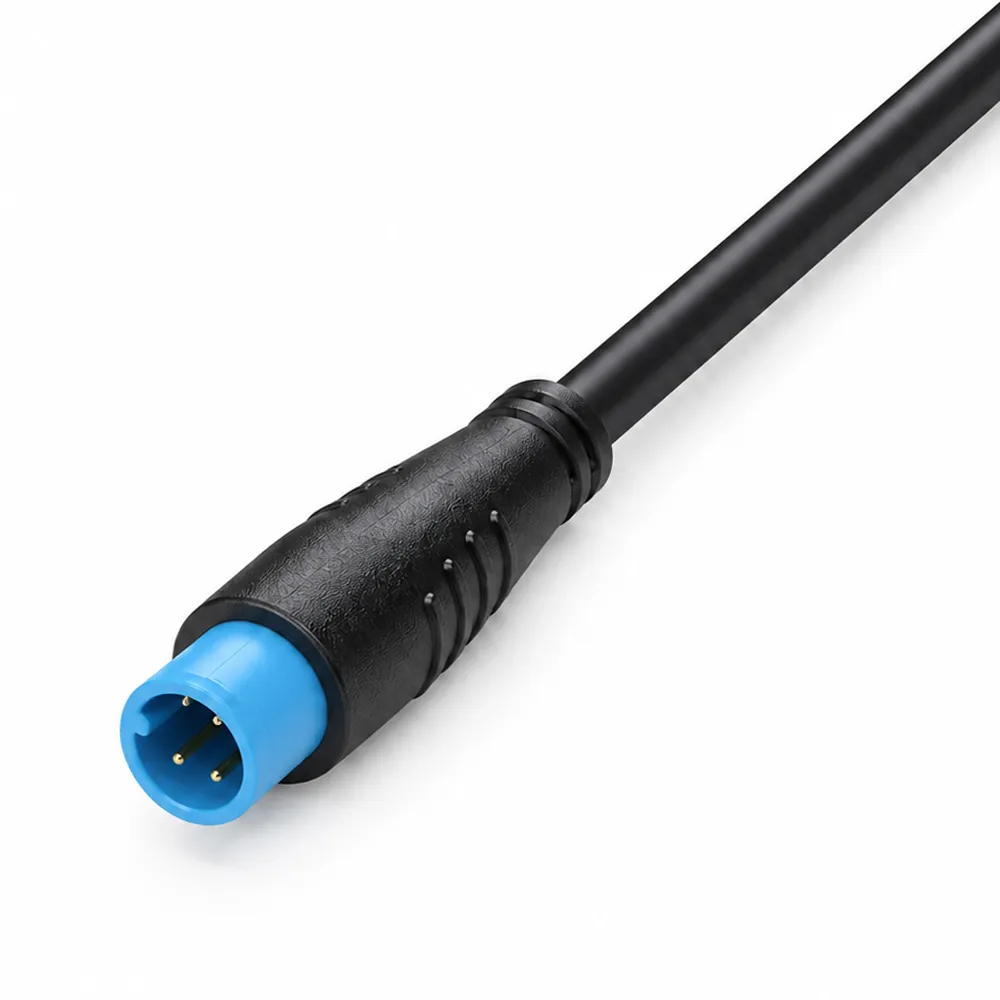

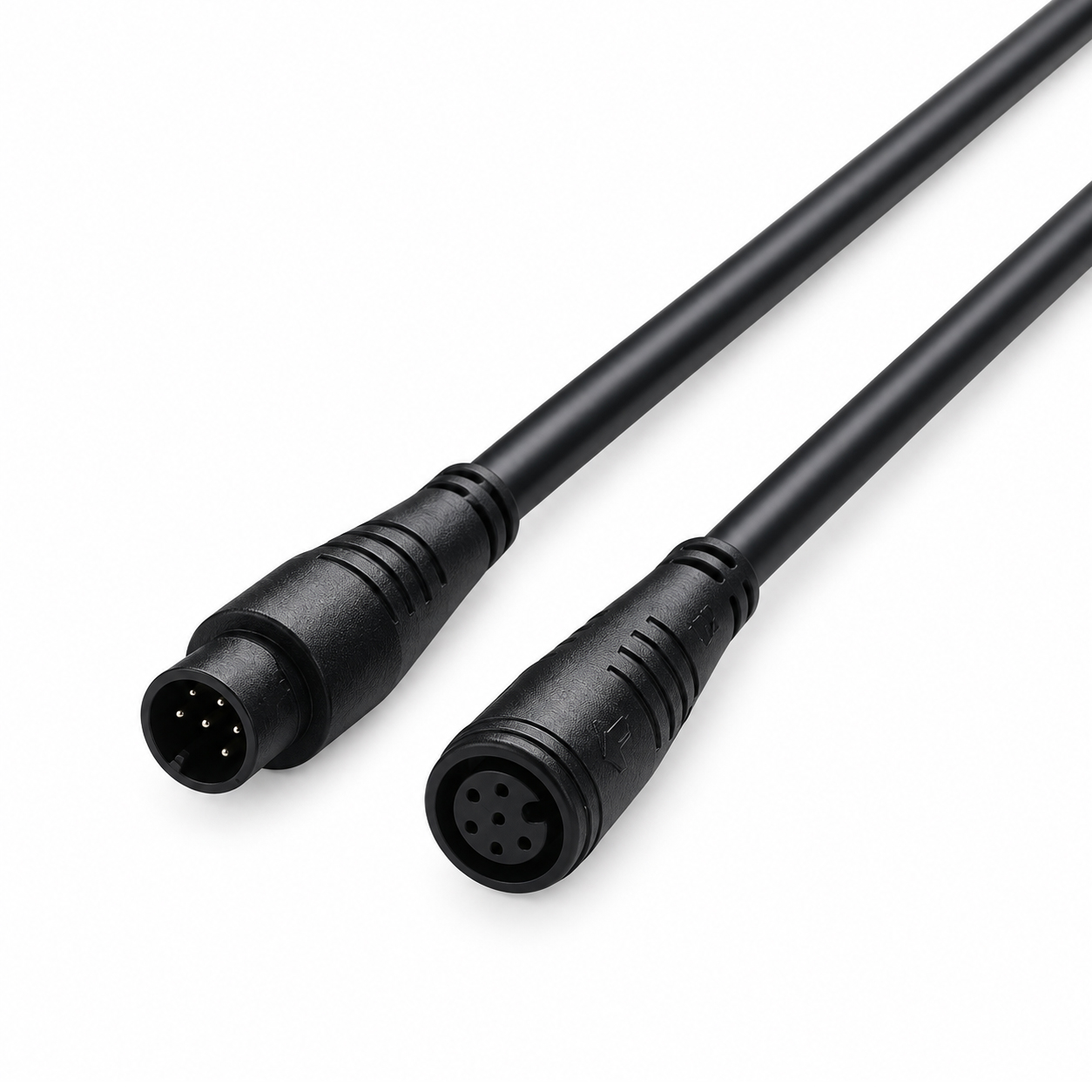

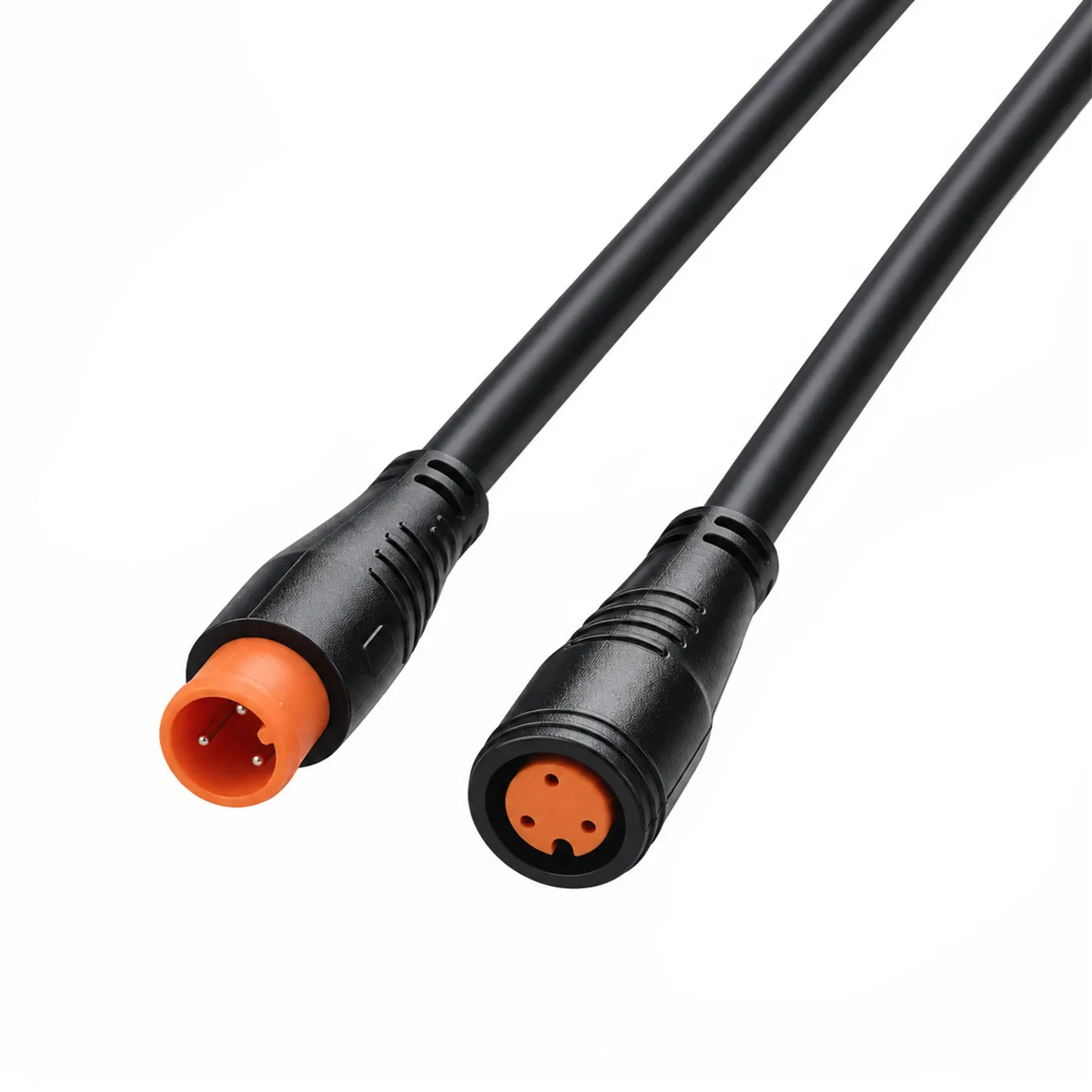

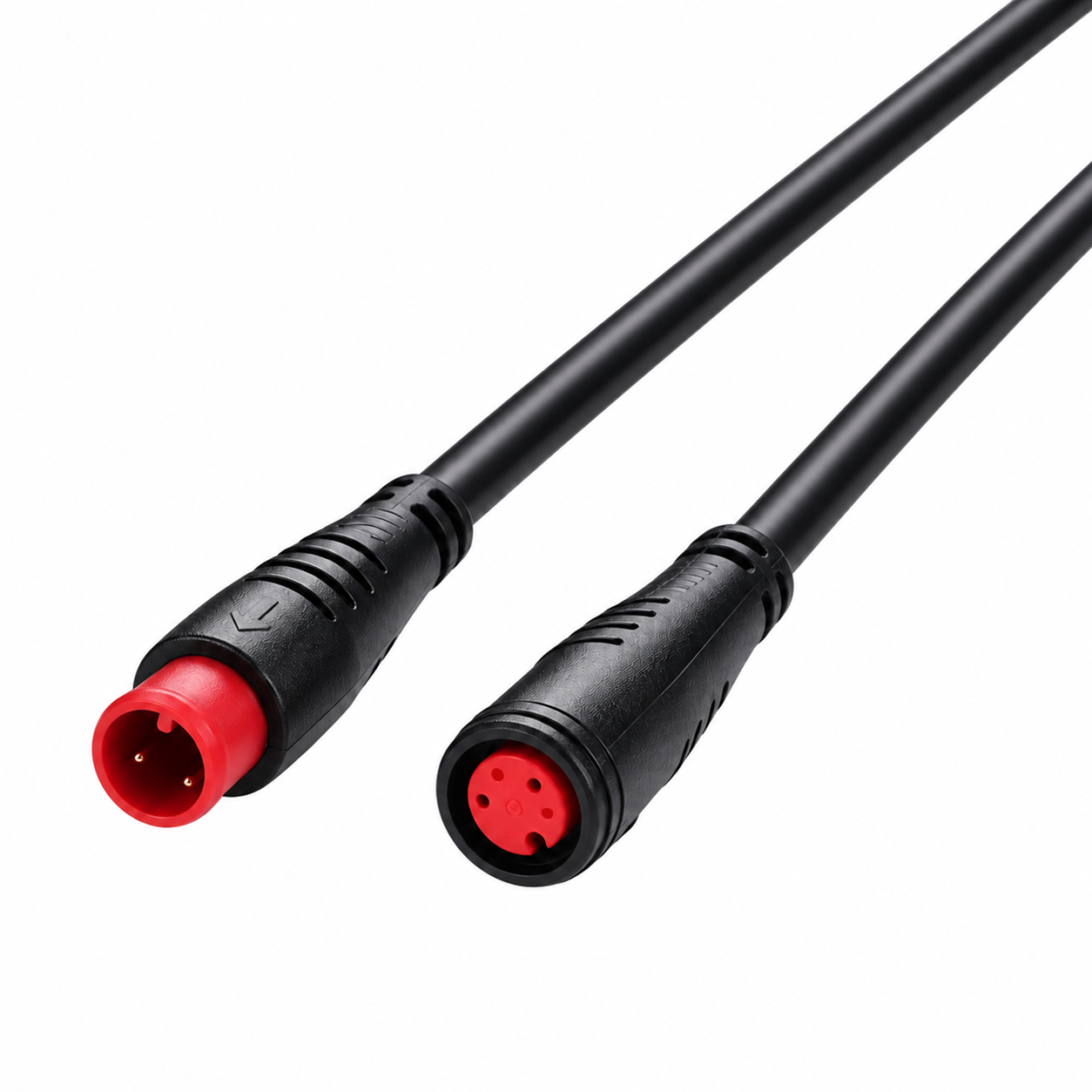

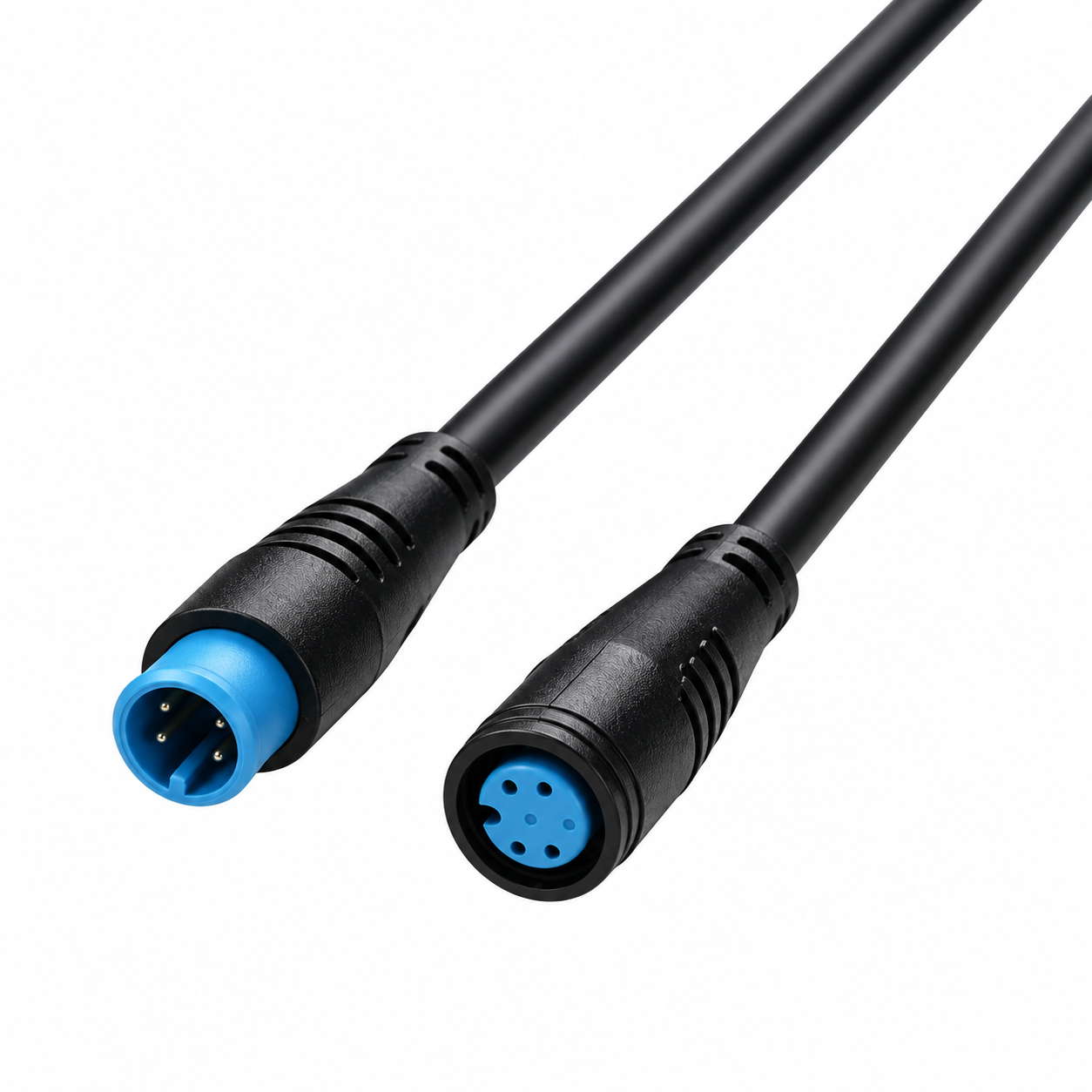

The Mini M8 Male Molded Cable is a compact cable assembly developed for equipment that uses a Mini M8 male connection interface. It combines the male connector and cable into an integrated molded structure, providing a prepared connection component for sensors, electronic modules, automation devices, instrumentation and compact machine systems.
The Mini M8 configuration is intended for applications where the connection interface needs to occupy limited space. Its compact format can be incorporated into smaller equipment structures and closely arranged components, making it a practical option for device designers working with restricted installation areas.
Unlike a loose connector that must be wired separately during equipment assembly, this product is supplied as a molded cable assembly. The connector and cable are combined into a finished component, allowing manufacturers to integrate the assembly directly into their equipment wiring process and maintain a consistent connection structure across production units.
Depending on the selected cable construction and equipment circuit, the assembly can be configured for signal, control, power or other electrical interconnection purposes. The exact electrical capability should be determined from the final conductor specifications, connector configuration and requirements of the connected equipment.
XUNPU supports customized Mini M8 Male Molded Cable solutions for equipment manufacturers and OEM projects. Cable length, conductor arrangement, cable-end treatment and related assembly requirements can be developed according to the customer's connection diagram, mechanical layout and production specifications.
Product Type: Mini M8 Male Molded Cable.
Connector Interface: Mini M8 male connection interface integrated with the cable assembly.
Cable Structure: Molded cable construction combining the connector and cable into a finished assembly.
Cable Length: Can be customized according to equipment dimensions, connection distance and cable routing requirements.
Conductor Configuration: Wire quantity, conductor structure and internal wiring arrangement can be selected according to the electrical design of the target equipment.
Cable End: The free end can be configured according to the required terminal, connector, wiring harness or equipment-side connection method.
Mating Interface: Intended for connection with a compatible Mini M8 female interface. The exact mating configuration should be verified according to the equipment specifications.
Cable Routing: Assembly dimensions and cable direction can be considered according to the installation space and connection layout of the customer's equipment.
Customization: Cable length, conductor arrangement, termination method and connector-related specifications can be adapted for OEM applications.
Electrical Performance: Rated voltage, current capacity, conductor size and other electrical characteristics should be confirmed according to the final cable construction and application requirements.
Installation Method: Designed as a pre-assembled cable component for integration into compatible equipment and wiring systems.
The Mini M8 Male Molded Cable combines a compact connector format with an integrated cable assembly. This configuration can be useful for equipment designers who need a defined male connection interface without allocating additional space for a larger connector structure.
Its molded construction provides a finished connection component in which the connector and cable are supplied together. This can simplify component management during equipment production and reduce the need for separate connector wiring operations during final assembly.
The male interface is intended to mate with the corresponding compatible female interface. This makes the assembly suitable for device-to-equipment or module-to-module connection structures where the Mini M8 interface has already been incorporated into the equipment design.
The compact geometry can be beneficial in equipment with dense component layouts. Sensors, electronic modules and automation components can be positioned close to other mechanical or electrical elements while maintaining a dedicated cable connection point.
Another important feature is configuration flexibility. Cable length and conductor arrangement can be adapted to the intended wiring architecture, allowing OEM customers to develop an assembly that corresponds more closely to their actual equipment dimensions rather than relying on a single fixed cable specification.
The pre-assembled format is also suitable for repeat-production equipment. Once the required cable specification and mating interface have been established, the assembly can be incorporated into standardized manufacturing documentation and used as a consistent wiring component across compatible equipment models.
The Mini M8 Male Molded Cable provides an electrical connection between a compatible Mini M8 female interface and another part of the equipment wiring system. Its actual electrical role depends on the conductor configuration and circuit function defined by the equipment manufacturer.
The cable can extend the connection from a compact field device or electronic module toward a controller, terminal, wiring harness or other electrical interface. This allows the Mini M8 connection point to be positioned at the device while the cable carries the required electrical paths to another location within the system.
As a molded cable assembly, the product functions as a ready-prepared wiring component. Manufacturers can install the finished assembly directly into compatible equipment without having to prepare the connector and cable as separate components during final production.
A suitable cable length can also help establish an orderly connection route between equipment components. Instead of using an unnecessarily long standard cable, OEM customers can specify dimensions that correspond to their actual machine layout and installation distance.
For automated equipment and repeat-production products, the cable can serve as a standardized connection element. Its defined connector and cable configuration can be included in equipment assembly procedures, helping maintain the same wiring arrangement between production units.
Compact Sensor Assemblies: Compatible sensors can use the Mini M8 Male Cable to connect with a corresponding female interface in the equipment. The small connector format is appropriate for sensor installations where surrounding components leave limited clearance.
Industrial Automation Devices: Automation modules and machine components can incorporate the cable into their equipment wiring architecture. It can provide a prepared connection between a device and the corresponding control or wiring interface.
Electronic Control Modules: Compact electronic controllers and functional modules can use the Mini M8 cable when a compatible female connection is available. The cable can extend the module connection to another section of the equipment wiring system.
Measurement Instruments: Compact instrumentation can integrate the molded cable into its electrical connection structure. The finished assembly can help connect sensing or measurement components to associated control and processing equipment.
Machine Subassemblies: Machine builders can use the cable between individual components and the main wiring system. A customized cable length can be selected according to the physical distance between the connection points.
Compact Control Equipment: Control devices with compatible Mini M8 interfaces can integrate the male cable as part of their connection architecture, particularly where installation space is limited and a small connector format is preferred.
OEM Electronic Products: Equipment manufacturers can specify the Mini M8 Male Molded Cable during product development and use the finished assembly in repeat-production products. Cable length, conductor arrangement and termination details can be aligned with the product design.
Space-Constrained Wiring Systems: Devices installed in compact housings or densely arranged machine structures can consider the Mini M8 format when a smaller connection interface is required and the electrical specifications are compatible.
1. What is a Mini M8 Male Molded Cable?
It is a pre-assembled cable featuring a Mini M8 male connection interface and an integrated molded cable structure. It is designed for compatible sensors, automation equipment, electronic modules and industrial devices.
2. What connector does the Mini M8 male cable mate with?
The male interface is intended to mate with a compatible Mini M8 female connector. The exact mating configuration should be verified against the technical specifications of the equipment.
3. Why use a Mini M8 cable instead of a larger connector?
The Mini M8 format can be considered when the equipment design has limited connection space. Its compact interface can be integrated into smaller sensors, electronic modules and automation components where a larger connector may occupy unnecessary space.
4. Is the cable supplied as a molded assembly?
Yes. The connector and cable are integrated into a prepared molded assembly, allowing the product to be installed as a finished cable component during equipment manufacturing or wiring.
5. Can XUNPU customize the cable length?
Yes. Cable length can be specified according to the equipment layout, installation distance and intended cable routing path.
6. Can the conductor configuration be customized?
Yes. Conductor quantity, internal wiring arrangement and cable-end termination can be discussed according to the customer's electrical design and equipment connection requirements.
7. Is the Mini M8 Male Molded Cable suitable for industrial automation?
It can be used in compatible automation applications, including sensors, compact control modules, machine components and other devices using the corresponding Mini M8 interface.
8. Can this cable be manufactured for OEM equipment?
Yes. XUNPU supports customized cable assemblies for OEM applications and can discuss cable length, conductor configuration, termination requirements and connector specifications according to the customer's project information.
9. What information is needed for a customized Mini M8 male cable?
Customers should provide the required mating interface, cable length, conductor requirements, cable-end termination, electrical specifications, installation conditions and relevant product drawings or wiring diagrams where available.
