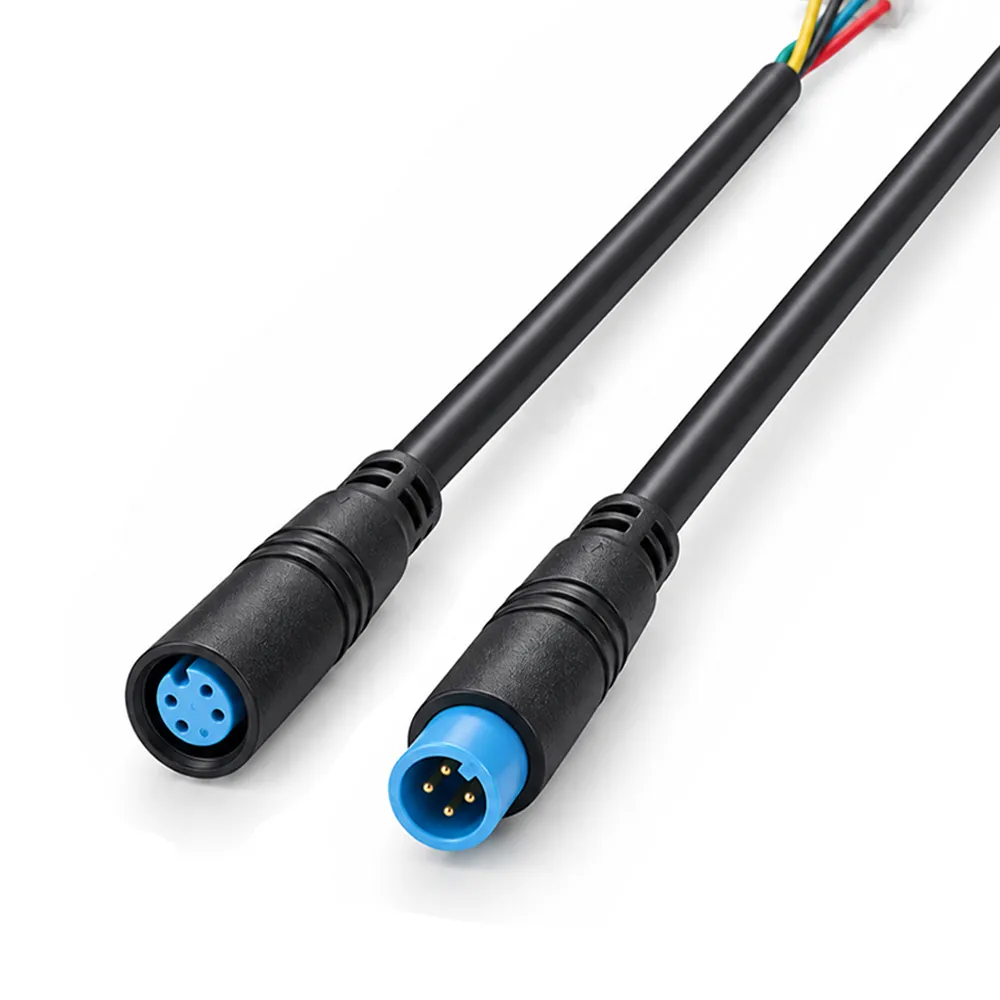

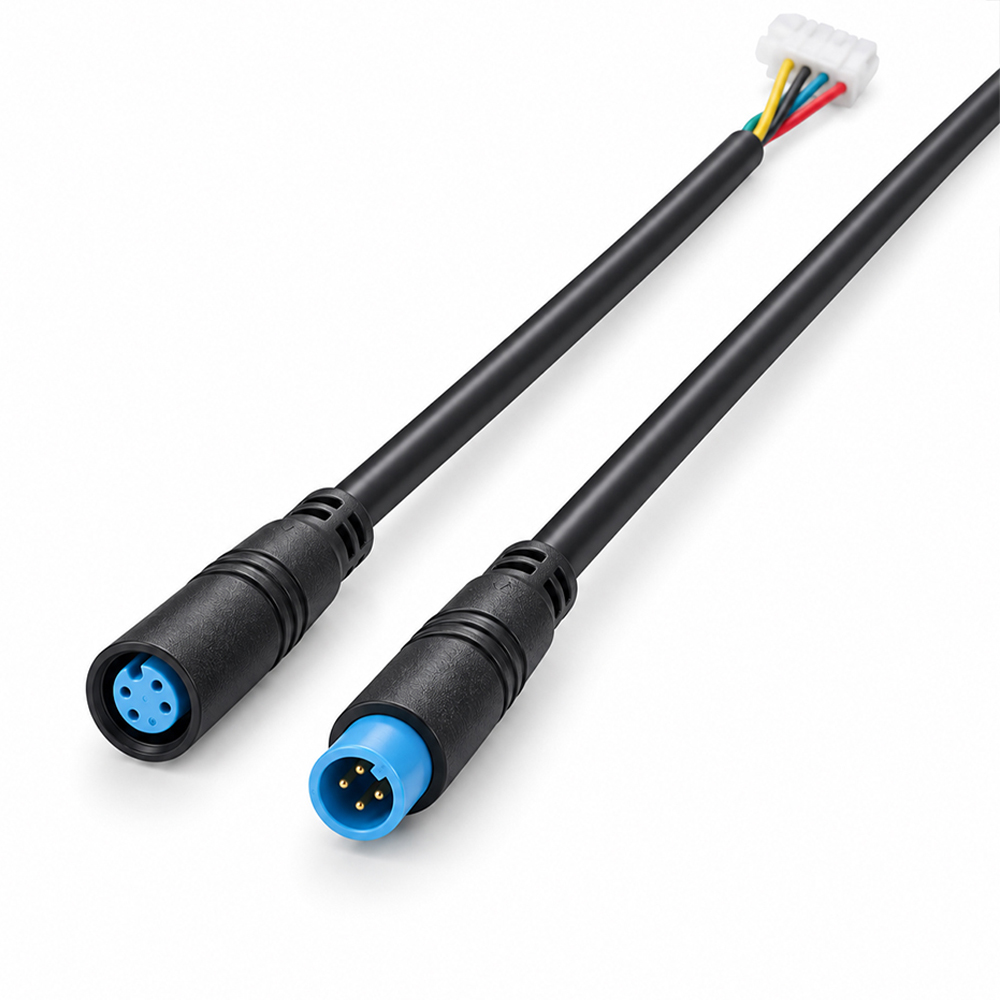

The M8 6-Pin Waterproof Male and Female Connector Cable Assembly is designed for electrical equipment that requires a compact multi-pin connection with a male and female connector arrangement. The assembly combines M8 six-pin interfaces with cable wiring to create a ready-to-install connection component for sensors, automation systems, industrial controls, electronic equipment and machine wiring.
With six electrical connection positions, the assembly can accommodate multiple circuits within a single connector interface. This can be useful for devices that need more than a basic two-wire connection, including applications involving power, signal, control or combined electrical functions. The actual circuit assignment depends on the customer's wiring design and the selected cable configuration.
The male and female connector arrangement allows the cable assembly to form a direct connection between two compatible M8 interfaces. This provides equipment manufacturers with a prepared interconnection component instead of requiring separate connectors, individual wires and additional field assembly during equipment installation.
The waterproof connector construction is intended for applications where the connection interface needs protection against environmental exposure according to the actual product specification and installation conditions. The complete protection level should be confirmed based on the specific connector configuration and customer's application environment.
XUNPU can configure the M8 6-Pin Waterproof Male and Female Connector Cable Assembly according to different equipment requirements. Cable length, conductor arrangement, connector orientation, cable-end treatment and other assembly details can be discussed according to technical drawings, wiring diagrams and OEM production requirements.
Product Type: M8 6-Pin Waterproof Male and Female Connector Cable Assembly.
Connector Interface: M8 male and female connector configuration with six electrical connection positions.
Connector Arrangement: Male-to-female cable assembly for connecting compatible M8 interfaces.
Pin Configuration: Six-pin connection arrangement; individual pin assignments should be confirmed according to the customer's wiring diagram and equipment circuit design.
Cable Structure: Multi-conductor cable configured between the corresponding M8 male and female connection interfaces.
Cable Length: Can be customized according to equipment dimensions, installation distance and required cable routing path.
Connector Protection: Waterproof connector construction intended for applications requiring protection at the connection interface. The applicable protection rating should be confirmed for the selected configuration.
Conductor Arrangement: Six-pin wiring can be assigned according to the required power, signal, control or other electrical circuits of the connected equipment.
Cable Termination: The assembly can be configured according to the required connector-to-cable arrangement and equipment-side termination requirements.
Customization: Cable length, conductor specifications, wiring sequence, connector configuration and other assembly details can be adapted for OEM applications.
Electrical Parameters: Rated voltage, current capacity, conductor size and other electrical characteristics should be confirmed according to the final cable construction and connected equipment.
Mating Compatibility: The male and female interfaces should be selected and verified according to the exact M8 connector configuration used by the customer's equipment.
A defining feature of this cable assembly is its six-pin M8 connection format. Six electrical positions provide greater wiring flexibility than simpler connector configurations, allowing multiple circuits to be organized through one compact connection point when the application requires it.
The male and female arrangement makes the product suitable as an interconnection cable between two compatible M8 interfaces. Instead of terminating individual conductors during equipment assembly, manufacturers can use the prepared cable assembly as a complete connection component.
The waterproof connector structure makes the cable suitable for equipment designs where the connector area requires protection against environmental exposure. The actual protection capability depends on the selected connector construction, mating condition and installation environment and should be verified for each application.
The compact M8 interface can be incorporated into equipment where available installation space is limited. This makes the six-pin cable format relevant to sensors, automation modules, control equipment and other industrial devices that require several electrical connections without using a larger connector interface.
The cable assembly also provides flexibility in wiring design. The six conductors can be assigned according to the equipment circuit architecture, allowing the same basic connector format to be adapted for different signal, control and power connection requirements.
For OEM production, the prepared assembly can help standardize the connection method across equipment units. Once the cable length, pin assignment and connector configuration are defined, the same specification can be incorporated into repeat-production equipment where the interface requirements remain consistent.
The primary function of the M8 6-Pin Waterproof Male and Female Connector Cable Assembly is to establish a multi-circuit electrical connection between two compatible M8 interfaces. The six-pin structure allows several electrical paths to be combined within one cable assembly according to the equipment's circuit requirements.
The assembly can carry different types of electrical circuits when the cable construction and connector specifications are appropriate. Depending on the system design, individual conductors may be allocated to power, signal, control or other device-level functions.
The male-to-female configuration also functions as an extension or interconnection between equipment components. It can connect a sensor or field device to a control module, or link two sections of an equipment wiring system that use compatible M8 interfaces.
The waterproof connector structure provides a protected connection interface for applications where environmental conditions need to be considered. Correct mating, installation and sealing practices are required to achieve the intended protection performance of the selected configuration.
The finished cable format can also simplify equipment installation. Because the connectors and conductors are supplied as an assembled wiring component, manufacturers can integrate the cable directly into their installation or production process rather than preparing each connection individually.
Industrial Sensor Connections: Compatible sensors can use the M8 6-pin cable to establish a multi-circuit connection with a control system or other equipment. The six-pin arrangement can accommodate the required wiring according to the sensor and system design.
Factory Automation Systems: Automation equipment can incorporate the cable between sensors, control modules, machine components and related electrical interfaces. The compact M8 format is suitable for installations where connector space needs to remain controlled.
Machine Control Equipment: Machine builders can use the cable as an interconnection between field devices and control equipment. The six conductors provide flexibility for equipment-specific wiring arrangements when the selected cable specifications are appropriate.
Outdoor or Exposed Equipment: Equipment installed in environments where connection areas may encounter moisture or environmental exposure can consider a waterproof M8 connector assembly, subject to the applicable protection rating and installation requirements.
Industrial Instrumentation: Measurement and monitoring equipment can integrate the cable when a compatible six-pin M8 interface is required. The prepared assembly can connect instrumentation to control or data-processing equipment according to the system wiring architecture.
Compact Electronic Modules: Electronic modules with compatible M8 interfaces can use the cable for multi-conductor connections where several circuits need to pass through one compact connector arrangement.
Equipment Wiring Harnesses: The cable can be incorporated into equipment wiring systems as a pre-assembled connection between different modules or subassemblies. Customized lengths can be selected to suit the physical distance between connection points.
OEM Electrical Equipment: OEM manufacturers can define the M8 six-pin cable as part of their equipment connection architecture and specify the cable length, pin assignment and connector configuration required for repeat production.
1. What is an M8 6-Pin Waterproof Male and Female Connector Cable Assembly?
It is a pre-assembled cable featuring compatible M8 six-pin male and female connector interfaces. It is designed for multi-circuit electrical connections in sensors, automation equipment, industrial controls and other compatible devices.
2. How many electrical connections does the cable provide?
The connector configuration provides six electrical connection positions. The specific pin assignment should be defined according to the wiring diagram and electrical architecture of the target equipment.
3. Is the M8 6-pin cable suitable for sensors?
Yes. It can be used with compatible industrial sensors and sensing equipment that require an M8 six-pin connection and whose electrical specifications match the cable assembly.
4. What does the waterproof design provide?
The waterproof connector construction is intended to protect the connection interface against environmental exposure according to the applicable product configuration. The exact protection rating should be confirmed for the selected connector and installation conditions.
5. Can the cable length be customized?
Yes. XUNPU can discuss customized cable lengths according to the distance between the two connection points, equipment dimensions and required cable routing path.
6. Can the six-pin wiring sequence be customized?
Yes. Pin assignments can be configured according to the customer's electrical design, provided that the connector and cable specifications support the requested arrangement.
7. Can this cable be used for automation equipment?
Yes. Compatible automation systems can use the assembly for connections between sensors, control modules, machine components and other M8 interfaces.
8. Can XUNPU provide customized M8 6-pin cable assemblies for OEM products?
Yes. XUNPU supports OEM cable assembly requirements and can discuss cable length, conductor specifications, pin assignment, connector configuration and termination requirements based on the customer's technical information.
9. What information should be provided when requesting this cable?
Customers should provide the required M8 connector configuration, male and female interface requirements, cable length, pin assignment, conductor specifications, electrical parameters, protection requirements and installation conditions where applicable.
