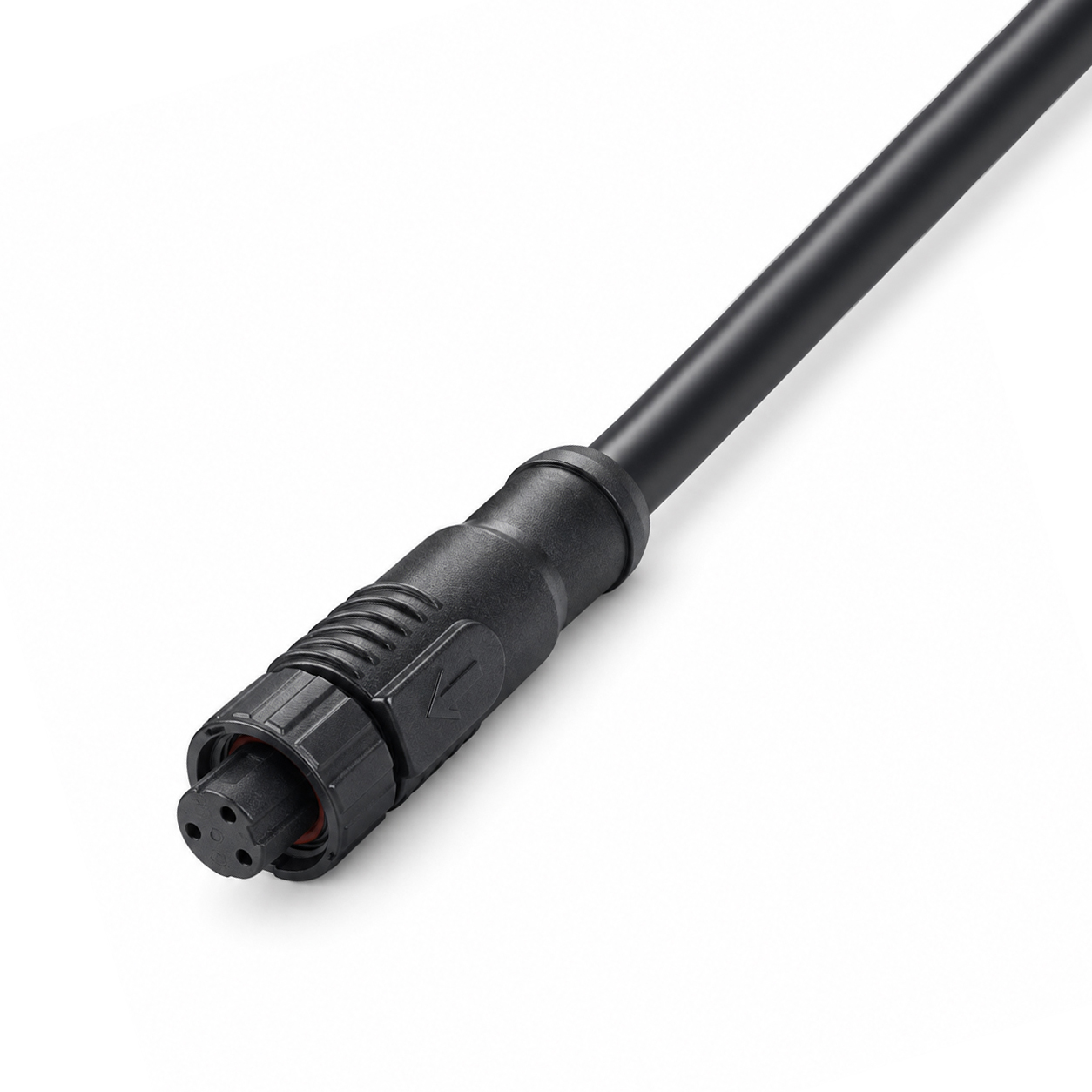

The M8 A Code Molded Cable with Plastic Connector is an integrated cable assembly developed around an A-coded M8 connection interface and a plastic connector structure. It combines the connector and cable into a finished molded component, providing equipment manufacturers with a practical connection solution for sensors, automation devices, industrial instruments, control modules and machine wiring.
The A-coded M8 interface provides a defined connector configuration for compatible mating applications. The plastic connector construction offers a lightweight connection housing option for equipment designers who need to incorporate an M8 interface into their electrical architecture while keeping the assembly compact and suitable for integration into different device structures.
The molded cable format means the connector and cable are supplied as one prepared assembly. This can simplify equipment manufacturing because the connection component does not need to be built from a separate connector and loose cable during final installation. It also allows OEM manufacturers to establish a consistent cable specification for repeated equipment production.
The assembly can be used for different electrical connection purposes depending on the selected conductor configuration and equipment circuit. Suitable applications may include sensor connections, control wiring, signal transmission, power-related connections or other device-level electrical interconnections where the M8 A-coded interface is compatible.
XUNPU can adapt the M8 A Code Molded Cable with Plastic Connector to project-specific requirements. Cable length, conductor arrangement, cable-end termination and related connector details can be discussed according to the customer's equipment drawings, wiring architecture, installation space and production requirements.
Product Type: M8 A Code Molded Cable with Plastic Connector.
Connector Interface: M8 A-coded connection interface with plastic connector construction.
Connector Housing: Plastic connector housing integrated with the molded cable assembly.
Cable Structure: Integrated molded cable assembly combining the M8 connector and cable into a finished connection component.
Coding: A-coded M8 interface; exact mating compatibility should be verified against the connector configuration of the target equipment.
Cable Length: Can be specified according to equipment dimensions, connection distance and the intended cable routing path.
Conductor Configuration: Conductor quantity, wire construction and internal circuit arrangement can be selected according to the electrical requirements of the application.
Cable End: The free cable end can be configured for the customer's required terminal, connector, wiring harness or equipment-side connection method.
Mating Interface: Designed for use with a compatible M8 A-coded mating connector. Final mechanical and electrical compatibility should be confirmed before production.
Customization: Cable length, conductor arrangement, cable-end treatment and connector-related assembly requirements can be adapted for OEM projects.
Electrical Characteristics: Rated voltage, current capacity, conductor size and other electrical parameters should be determined according to the final cable construction and equipment requirements.
The combination of an A-coded M8 interface and plastic connector housing gives this cable assembly a distinct configuration for equipment designers looking for a compact, defined connection format. The connector can be integrated into compatible sensors, modules and machine components without requiring a larger connector platform.
The plastic connector structure provides a lightweight alternative for applications where the connector housing does not need to rely on a metal construction. Its suitability should be evaluated according to the mechanical, environmental and electrical requirements of the final equipment.
The A coding establishes a specific connector orientation and mating configuration. This helps equipment designers distinguish the intended connection arrangement when several M8 connector types are used within a broader product family or equipment architecture.
The integrated molded structure provides a finished cable component rather than a separate connector and loose wire. This can make component handling easier during manufacturing and can reduce additional connector assembly work at the equipment production stage.
The assembly also supports flexible cable configuration. Different equipment layouts may require different cable lengths or wiring arrangements, so XUNPU can discuss application-specific cable construction and termination requirements for OEM projects.
Its compact connection format makes the product suitable for equipment where sensors, controllers and machine components are installed within a relatively concentrated area. The cable can be incorporated into the equipment wiring design while maintaining a defined M8 connection point.
The main function of the M8 A Code Molded Cable with Plastic Connector is to provide a prepared electrical interface between a compatible M8 A-coded connection point and another section of the equipment wiring system. Its actual electrical role depends on the conductor arrangement and circuit design specified for the application.
The cable can extend an electrical connection from a sensor, actuator, control module or other device toward a terminal, controller, wiring harness or equipment interface. This allows the M8 connection to remain close to the device while the cable carries the required electrical paths to another part of the system.
The molded construction functions as a pre-assembled wiring component. Equipment manufacturers can install the finished cable into their products without having to assemble the connector and cable separately during the final equipment production process.
The A-coded interface provides a defined mating arrangement for compatible equipment. When the correct mating connector is selected, the assembly can be incorporated into standardized device and machine connection architectures.
For OEM equipment, the cable can also serve as a repeatable connection component. A specified cable length, conductor configuration and termination method can be documented as part of the equipment design and reproduced for compatible production units.
Industrial Sensor Connections: Compatible sensors can use the M8 A-coded cable to establish a defined connection with control equipment or another part of the system. The compact interface is suitable for sensor installations where connection space needs to be managed carefully.
Factory Automation Equipment: Automation modules and machine components can incorporate the cable into their electrical architecture. It can connect compatible field devices with controllers, wiring systems or other equipment modules according to the application design.
Measurement and Instrumentation: Compact instruments can use the cable as part of their external or internal connection system. The molded construction provides a prepared cable component that can be integrated into the instrument's wiring layout.
Electronic Control Modules: Controllers and electronic modules with compatible M8 A-coded interfaces can use the assembly to extend electrical connections toward terminals, wiring harnesses or other system components.
Machine Subassemblies: Equipment builders can use customized cable assemblies between machine components and the main electrical system. Cable length can be selected according to the physical distance between the relevant connection points.
Compact Industrial Devices: Small industrial devices can incorporate the M8 A-coded interface when a compact connector format is required. The plastic housing can be evaluated according to the mechanical and environmental conditions of the equipment.
Sensor and Control Wiring: Equipment that combines sensing and control functions can use the cable as part of its wiring architecture when the required M8 A-coded interface and electrical specifications are compatible.
OEM Equipment Manufacturing: OEM manufacturers can specify the M8 A Code Molded Cable with Plastic Connector during product development and integrate the finished assembly into repeat-production equipment. XUNPU can discuss cable dimensions and wiring details according to the customer's technical requirements.
1. What is an M8 A Code Molded Cable with Plastic Connector?
It is an integrated cable assembly featuring an A-coded M8 connection interface, a plastic connector housing and a molded cable structure. It is designed for compatible sensors, automation equipment, instrumentation and industrial devices.
2. What does A Code mean on an M8 connector?
A Code identifies a specific M8 connector coding and mating configuration. The corresponding mating connector should be selected according to the exact interface requirements of the equipment.
3. Why is a plastic connector used?
The plastic connector housing provides a lightweight connector construction that can be suitable for applications where the mechanical and environmental requirements are compatible with a polymer connector housing.
4. Is the cable supplied as a molded assembly?
Yes. The M8 connector and cable are supplied as an integrated molded assembly, allowing the product to be incorporated directly into compatible equipment wiring processes.
5. Can XUNPU customize the cable length?
Yes. Cable length can be customized according to the equipment layout, connection distance and required cable routing path.
6. Can the conductor configuration be customized?
Yes. Conductor quantity, wiring arrangement and cable-end termination can be discussed according to the customer's electrical requirements and equipment connection design.
7. Is this M8 A-coded cable suitable for automation equipment?
It can be used in compatible automation applications involving sensors, control modules, machine components and other equipment that uses the corresponding M8 A-coded interface.
8. Can XUNPU manufacture this cable for OEM equipment?
Yes. XUNPU supports customized OEM cable assemblies and can discuss connector configuration, cable length, conductor arrangement, termination and other project-specific requirements.
9. What should be confirmed before ordering?
The M8 A-coded mating interface, cable length, conductor specifications, electrical parameters, cable-end termination and installation conditions should be confirmed before production. Technical drawings or wiring diagrams are useful for customized projects.
