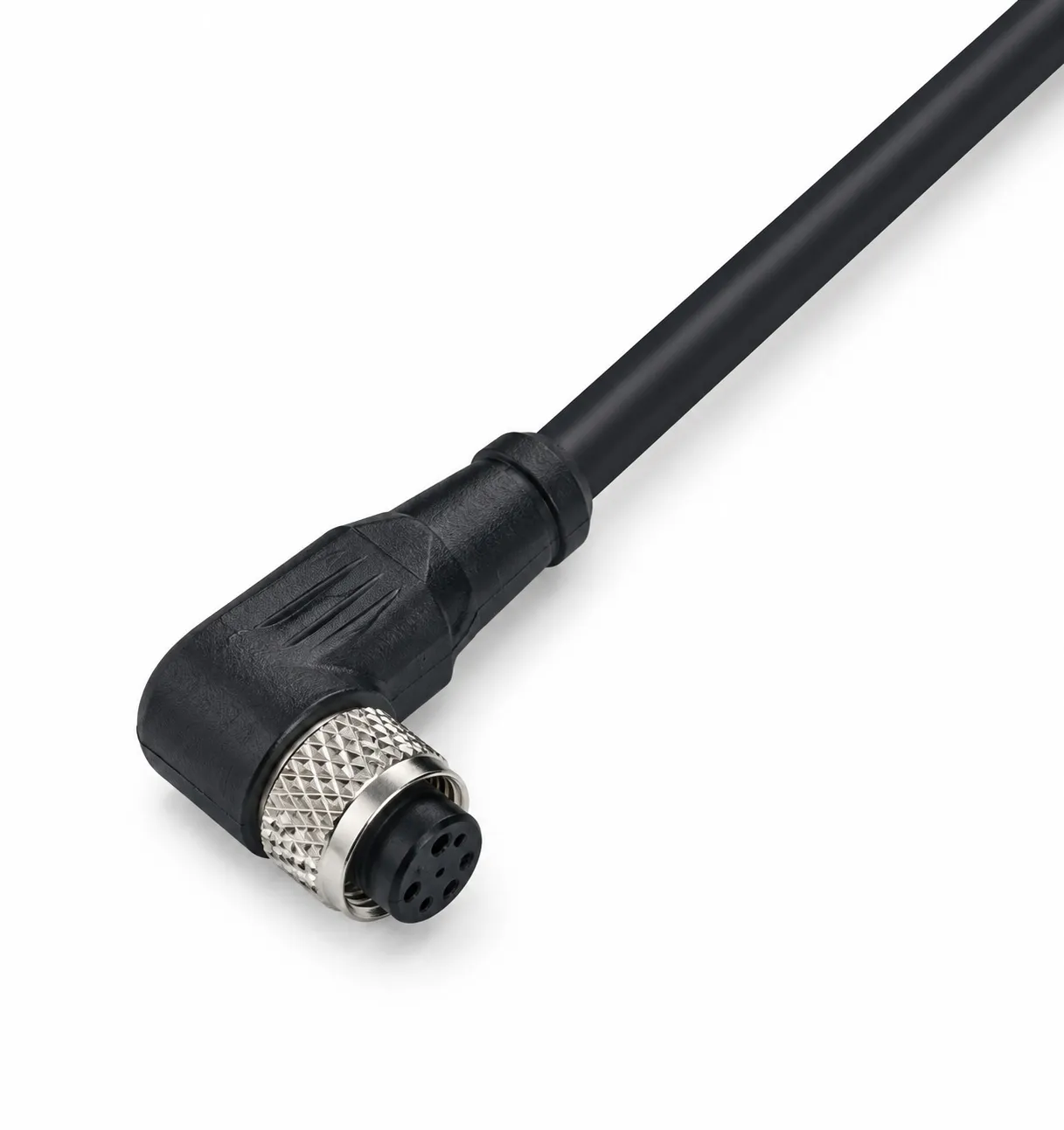

M8 Female Molded Cable Angled is an M8 female cable assembly designed with an angled molded cable outlet for applications where connector orientation and cable routing need to be carefully managed. The M8 interface provides a compact connection format for compatible sensors, control devices and industrial components, while the angled cable structure directs the cable away from the connector in a more space-conscious configuration.
The molded construction integrates the cable and connector into a finished assembly, providing a clean transition between the M8 female interface and the cable. The angled outlet can help reduce unnecessary cable bending immediately after the connection point and can be particularly useful when equipment is installed close to surrounding panels, machine structures or other components.
Designed for industrial connectivity applications, this M8 female molded cable can be configured for sensors, automation equipment, control systems, instrumentation and other compatible electronic devices. XUNPU can customize cable length, conductor configuration, connector arrangement and other assembly requirements according to the customer's equipment design.
Product Type: M8 female molded cable with an angled cable outlet.
Connector Interface: M8 female connector designed for connection with compatible M8 male interfaces.
Cable Orientation: Angled outlet configuration for directing the cable along a preferred installation path.
Molded Construction: The connector and cable are integrated through a molded connection section to create a finished cable assembly.
Cable Length: Available in customized lengths according to sensor position, equipment dimensions and cable routing requirements.
Conductor Configuration: Conductor count and wire specifications can be selected according to the electrical requirements of the connected device.
Electrical Parameters: Voltage, current and other electrical characteristics should be determined according to the specific connector configuration and application requirements.
Cable Jacket: Cable jacket and insulation materials can be selected according to the mechanical and environmental conditions of the intended application.
Customization: Cable length, wire configuration, connector arrangement and assembly details can be customized for OEM projects.
Angled Cable Exit: The angled outlet directs the cable away from the connector, providing greater flexibility for cable routing in compact equipment installations.
Compact M8 Interface: The M8 female connector provides a compact connection format suitable for sensors and space-sensitive industrial equipment.
Integrated Molded Structure: The molded transition creates a unified cable assembly and provides a consistent connection between the connector and cable.
Improved Cable Routing: The angled configuration can make it easier to guide the cable along the side of a machine, panel or equipment housing.
Reduced Connection-Side Bending: By changing the cable exit direction, the angled design can help avoid sharp cable routing directly from the connector interface.
Sensor and Automation Compatibility: The M8 format is suitable for a variety of compatible industrial sensors and automation components.
OEM Customization: XUNPU can adapt the cable assembly to customer requirements involving cable length, wiring configuration and equipment integration.
Sensor Connection: Provides an electrical interface between compatible M8 sensors and control or monitoring equipment.
Signal Transmission: Supports the transmission of electrical signals between compatible field devices and connected control systems.
Equipment Interconnection: Connects compatible M8 devices, sensors and automation components within an industrial system.
Cable Routing: The angled connector structure helps guide the cable toward a suitable direction within restricted installation spaces.
Machine Wiring: Provides a ready-to-install connection solution for machinery, control equipment and automated production systems.
OEM Integration: Provides a configurable M8 cable assembly that can be incorporated into the electrical architecture of customized equipment.
Industrial Sensors: Suitable for compatible M8 sensors used for position detection, proximity sensing, monitoring and other industrial measurement functions.
Factory Automation: Can be integrated into automated production lines where sensors and field devices require compact M8 cable connections.
Industrial Control Systems: Suitable for connecting compatible field devices to control equipment and other automation components.
Robotics and Machinery: The angled cable outlet can help manage cable routing around machine structures, moving mechanisms and confined installation areas where the connector orientation matters.
Instrumentation: Can be used in compatible measurement and monitoring equipment that requires an M8 female connection interface.
Control Panels and Equipment Cabinets: Suitable for applications where compact field-device connections need to be routed efficiently around panels and enclosures.
Industrial Electronic Devices: Can be integrated into electronic equipment using compatible M8 interfaces for signal or power-related connections.
OEM Automation Equipment: Suitable for equipment manufacturers requiring customized M8 female cable assemblies designed around their own machine layout and electrical interface.
1. What is an M8 Female Molded Cable Angled?
It is an M8 female cable assembly featuring an angled molded cable outlet. The configuration is designed to provide a compact connection while directing the cable along a more suitable routing path.
2. What does the angled design of the M8 cable do?
The angled design changes the cable exit direction from the connector, which can make cable routing easier when the available installation space is limited or when the cable needs to run alongside a machine or panel.
3. Is this an M8 female connector?
Yes. The product uses an M8 female connection interface designed to mate with a compatible M8 male connector or device interface.
4. Can the cable length be customized?
Yes. XUNPU can provide different cable lengths according to the sensor location, equipment dimensions and required cable routing distance.
5. Can the M8 cable be used for industrial sensors?
Yes. M8 cable assemblies are commonly used with compatible industrial sensors and automation devices. The exact electrical configuration should be matched to the connected sensor and control system.
6. Can XUNPU customize the conductor configuration?
Yes. Conductor count, wire specifications and cable construction can be configured according to the electrical requirements of the target equipment or sensor.
7. Is the angled M8 cable suitable for space-limited equipment?
Yes. The angled outlet can be useful where a straight cable exit would interfere with surrounding components or make cable routing less convenient.
8. Can this M8 cable be used for OEM automation equipment?
Yes. XUNPU can provide customized M8 female cable assemblies for OEM machinery and automation equipment based on connector, cable, routing and electrical requirements.
9. What should be confirmed before ordering an M8 female cable?
Important specifications include the required M8 connector configuration, cable length, conductor arrangement, electrical requirements, cable construction, termination details and installation environment.
