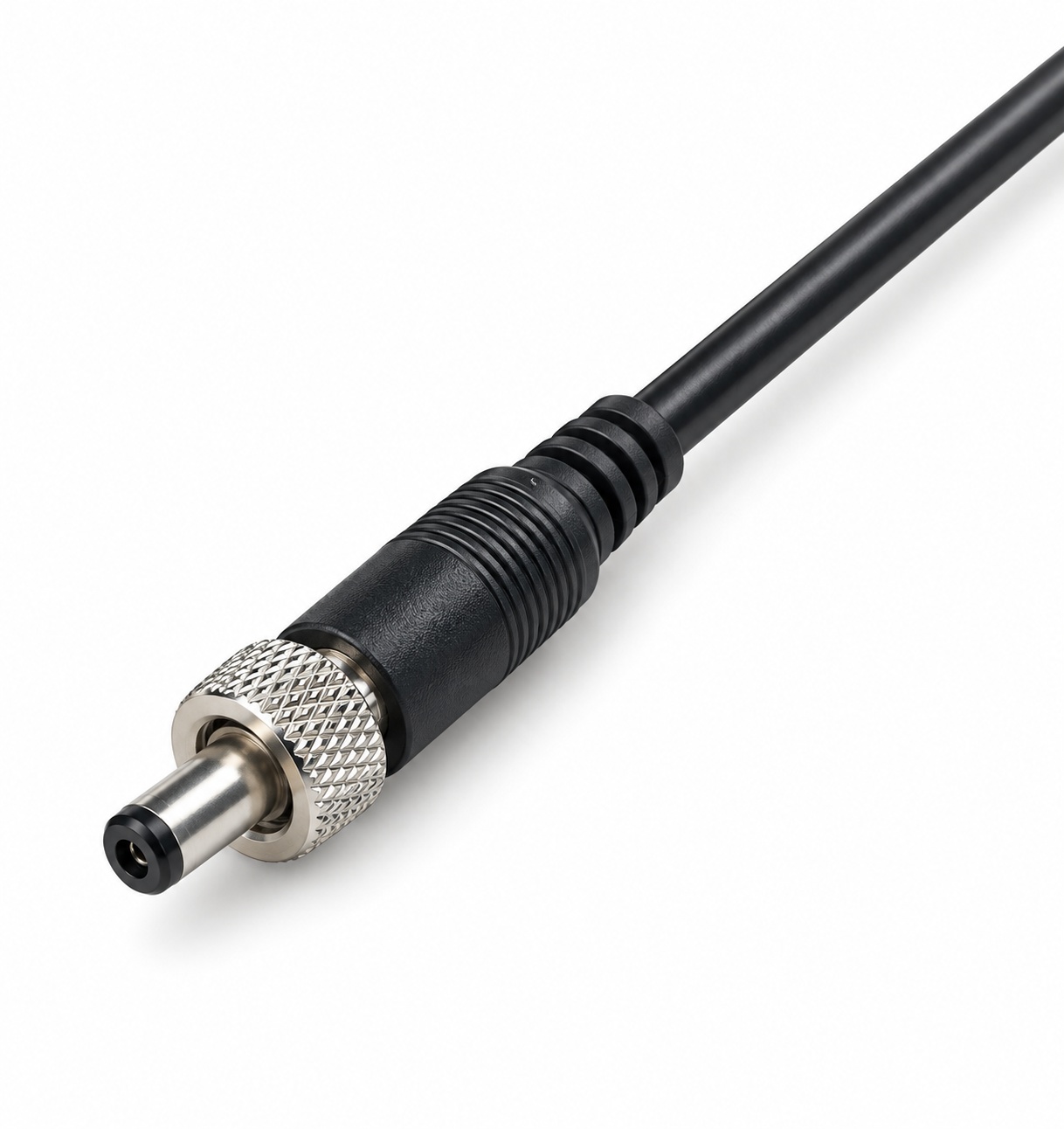

DC Cable With nuts

Product Introduction

DC Cable with Nuts is a specialized DC cable assembly designed for equipment that requires both electrical connectivity and a mechanically secured connection point. The nut-based fastening structure allows the connector to be fixed to a compatible mounting position, helping prevent unwanted movement of the connection during normal equipment operation. This configuration is particularly useful when the cable interface needs to remain firmly positioned on a panel, enclosure or equipment housing.

Compared with a cable that relies only on a plug-and-socket connection, a nut-secured configuration provides an additional mechanical mounting method. The cable can therefore be incorporated into equipment designs where connector positioning, installation stability and accessible servicing are important considerations. XUNPU can configure the cable assembly according to the customer's connector design, cable dimensions, mounting requirements and electrical specifications.

The product can be used for DC power connections and other compatible low-voltage electrical interfaces in electronic equipment, industrial devices, control systems, instrumentation and OEM products. Cable length, conductor specifications and termination configuration can be adapted to suit different equipment structures and installation conditions.

Key Specifications & Parameters

Cable Type: DC cable assembly incorporating a nut-secured connector or mounting interface.

Mounting Method: Threaded nut fastening for securing the compatible connector to a designated equipment mounting position.

Connector Configuration: Connector type and mounting structure can be selected according to the interface and mechanical design of the target equipment.

Cable Length: Cable length can be customized according to equipment dimensions, internal routing and installation distance.

Conductor Configuration: Conductor structure and wire specifications should be selected according to the electrical requirements of the connected equipment.

Electrical Parameters: Rated voltage, current capacity and other electrical characteristics are determined according to the intended application and connected equipment.

Mounting Dimensions: Thread size, mounting position and related mechanical dimensions should be matched with the customer's equipment design.

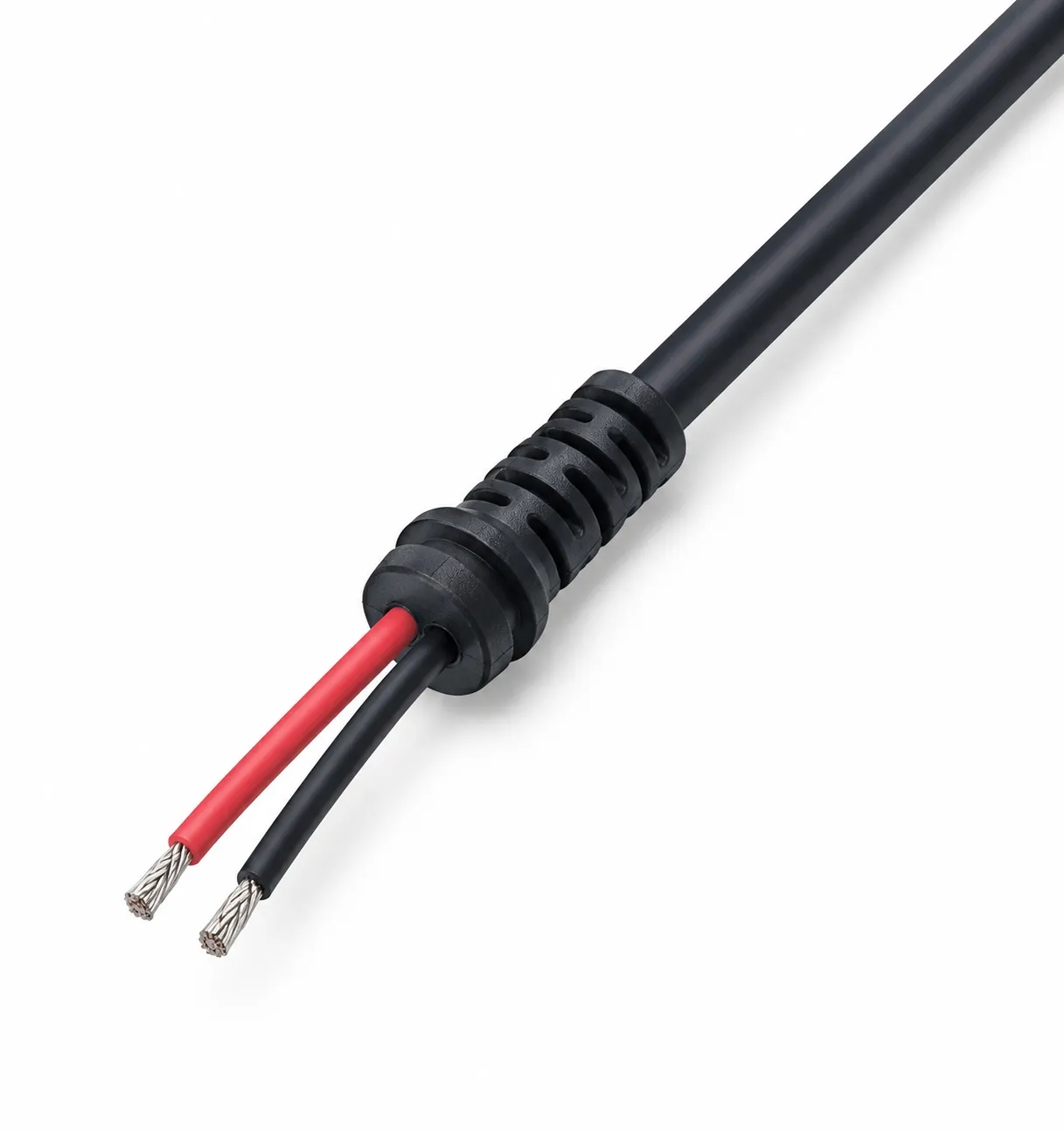

Termination Options: The cable can be configured with suitable terminals, plugs, connectors or other termination methods according to the final assembly requirements.

Customization: Cable length, connector arrangement, mounting configuration and electrical specifications can be customized for OEM applications.

Core Features

Mechanical Fastening: The nut-based structure provides a dedicated method for fixing the connector to compatible equipment panels or housings.

Stable Connector Positioning: Once properly installed, the threaded mounting structure helps keep the connection interface positioned at its designated location.

Equipment-Friendly Design: The cable can be incorporated into products where the electrical connector needs to be mounted through a panel or enclosure wall.

Organized Installation: A fixed mounting point can help maintain a more controlled cable routing arrangement inside or around the equipment.

Flexible Cable Options: Cable length, conductor configuration and termination details can be adjusted to match different product structures and wiring requirements.

OEM Configuration: XUNPU can develop cable assemblies based on customer-defined mechanical mounting dimensions and electrical interface requirements.

Practical Maintenance: A mechanically fixed connector location can make the cable interface easier to identify and access when equipment servicing is required.

Main Functions

DC Electrical Connection: Provides a dedicated electrical path between compatible DC power sources and electronic or electrical equipment.

Panel-Mounted Connection: Allows the compatible connector to be mechanically secured through a suitable equipment panel, enclosure or mounting surface.

Connection Stabilization: The threaded nut provides mechanical retention for the connector interface after installation.

Equipment Wiring: Provides an integrated cable solution for routing DC power between internal components, external power sources and equipment interfaces.

Cable Routing: Supports controlled routing of DC wiring within equipment according to the required installation path and cable length.

OEM Integration: Provides a configurable electrical interface that can be incorporated directly into the structure of finished equipment.

Specific Application Scenarios

Electronic Equipment: Suitable for electronic devices that require a fixed DC connection through a product housing or panel.

Industrial Control Equipment: Can be integrated into industrial controllers, electrical devices and control systems where a mechanically secured cable interface is required.

Instrumentation: Suitable for compatible measuring instruments and electronic instruments where the cable interface needs to be mounted securely to the equipment enclosure.

Power Supply Equipment: Can be used in suitable DC power supply systems where the cable connection needs to be positioned and retained at a defined mounting point.

Control Panels: Applicable to control panels and electrical enclosures requiring organized DC wiring and a fixed connector mounting location.

Communication Equipment: Can be incorporated into compatible communication devices and electronic systems that use a mechanically mounted DC interface.

OEM Products: Suitable for manufacturers developing electronic or electrical products that require a customized DC cable with a dedicated mounting structure.

Equipment Service Applications: The fixed connector location can be useful in products where cables need to be repeatedly accessed for inspection, replacement or maintenance.

FAQ

1. What is a DC Cable with Nuts?
A DC Cable with Nuts is a DC cable assembly equipped with a connector or mounting structure that uses a threaded nut to secure the connection to compatible equipment.

2. What is the purpose of the nut on the DC cable?
The nut is used as a mechanical fastening component. It can secure the compatible connector to a panel, enclosure or mounting surface and help maintain the connector's position after installation.

3. Is a DC Cable with Nuts suitable for panel mounting?
Yes. When the connector's mounting dimensions are compatible with the equipment, the nut-based structure can be used to secure the DC cable interface through a suitable panel or enclosure.

4. Can XUNPU customize the cable length?
Yes. Cable length can be customized according to the customer's equipment structure, routing distance and installation requirements.

5. Can the thread or nut configuration be customized?
The mounting configuration should be selected according to the connector design and equipment interface. XUNPU can discuss suitable mechanical specifications for OEM requirements.

6. What types of equipment can use this cable?
The cable can be used in compatible electronic equipment, industrial control devices, instrumentation, power supply equipment, communication products and other electrical systems requiring a fixed DC connection.

7. Can the cable be supplied with different termination options?
Yes. Depending on the application, the cable assembly can be configured with suitable terminals, connectors or other termination methods specified by the customer.

8. Can XUNPU manufacture this product for OEM projects?
Yes. XUNPU can provide customized DC cable assemblies based on requirements such as cable length, connector configuration, mounting dimensions, conductor specifications and equipment structure.

9. How should the electrical specifications be determined?
Voltage, current, conductor size, cable construction and connector specifications should be selected according to the electrical load, installation environment and operating requirements of the target equipment.
