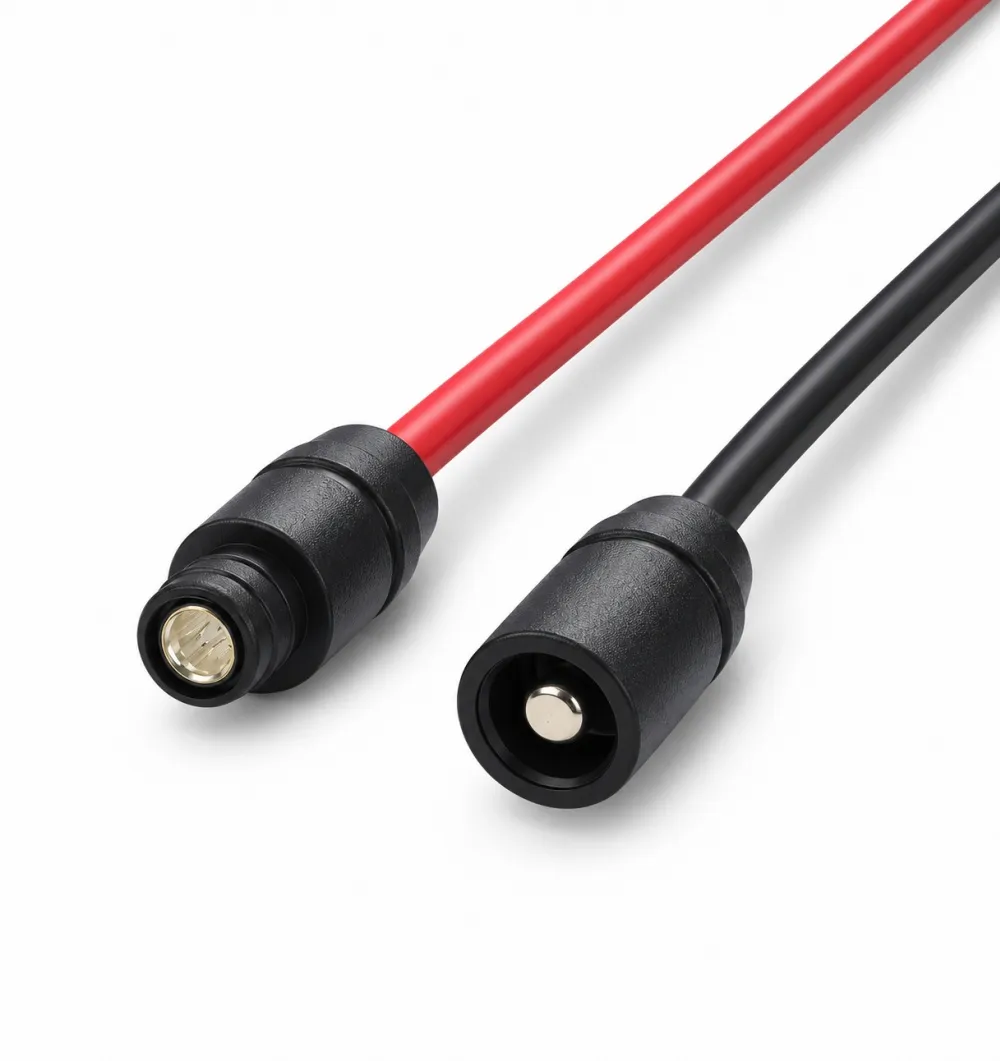

Black and Red Power Cables

Product Introduction

Black and Red Power Cables are designed for electrical wiring applications where clear conductor identification and reliable DC power transmission are important. The two-color configuration uses red and black conductors to provide an intuitive visual distinction between different electrical connections, making the cable easier to identify during assembly, installation and maintenance.

The red and black color combination is particularly suitable for DC power wiring where polarity needs to be clearly recognized during equipment connection. By providing an easily distinguishable cable structure, this type of power cable can help reduce wiring confusion and improve the efficiency of manual assembly and servicing. XUNPU can configure the cable according to the electrical and mechanical requirements of different products and equipment.

Depending on the application, the cable can be supplied with different conductor specifications, cable lengths and termination configurations. It can be integrated into electronic products, power systems, industrial equipment, control devices and OEM assemblies where a practical and clearly identifiable power connection is required.

Key Specifications & Parameters

Cable Type: Two-color power cable featuring red and black conductors for clear electrical identification.

Conductor Configuration: Red and black conductors can be arranged according to the intended power connection and wiring structure.

Cable Length: Available in customized lengths to accommodate different equipment dimensions, wiring paths and installation distances.

Conductor Size: Conductor specifications should be selected according to the required current capacity, connection distance and electrical design of the application.

Electrical Rating: Voltage and current specifications are determined according to the connected equipment, power requirements and operating conditions.

Termination Options: Cable ends can be configured with suitable terminals, connectors or other termination methods according to the customer's assembly requirements.

Insulation and Jacket: Suitable insulation and outer protection materials can be selected according to the electrical, mechanical and environmental requirements of the application.

Customization: Cable construction, conductor specifications, length and termination configuration can be customized for OEM projects.

Core Features

Clear Color Identification: The contrasting red and black conductors make the cable easy to distinguish during wiring, assembly and maintenance operations.

Convenient Polarity Recognition: For suitable DC applications, the two-color configuration provides a straightforward visual reference for identifying different power conductors.

Flexible Cable Configuration: Different conductor sizes, lengths and termination methods can be selected according to the requirements of the finished equipment.

Simplified Wiring Work: The clearly differentiated conductors can make manual assembly and equipment wiring easier to organize and inspect.

Application Versatility: The cable can be adapted to a wide range of electronic and electrical products requiring identifiable power wiring.

OEM-Friendly Design: XUNPU can develop cable configurations around customer-defined electrical interfaces, cable dimensions and assembly requirements.

Main Functions

DC Power Transmission: Provides a dedicated wiring path for transmitting DC electrical power between compatible power sources and equipment.

Polarity Identification: The red and black conductors provide a visual distinction that can assist with identifying different sides of a DC power connection.

Equipment Wiring: Can be used as an internal or external wiring component in electronic and electrical equipment.

Power Interface Connection: Supports the connection of compatible power supplies, electronic modules, batteries and other DC-powered components.

Assembly Integration: The cable can be supplied as part of a customized wiring assembly to simplify integration into finished products.

Maintenance Identification: The contrasting conductor colors can make cable tracing and visual inspection more convenient during equipment servicing.

Specific Application Scenarios

Electronic Devices: Suitable for electronic products that require clearly identifiable DC power wiring between internal modules or external power sources.

Power Supply Systems: Can be used for wiring between DC power supplies, adapters, power distribution components and compatible electronic equipment.

Industrial Equipment: Applicable to industrial machines, electrical cabinets, instruments and control equipment that require dedicated DC power connections.

Control Systems: Can be integrated into control equipment and electronic modules where organized and easily identifiable power wiring is required.

Battery-Powered Equipment: Suitable for selected battery-powered products and DC systems where clearly differentiated positive and negative conductors are required.

Test and Measurement Equipment: The cable can be used in suitable testing instruments and electrical assemblies where cables may need to be clearly identified during repeated setup and servicing.

OEM Electrical Products: Suitable for manufacturers that need customized red and black power cable assemblies designed around their own product structure and wiring requirements.

FAQ

1. What are Black and Red Power Cables used for?
Black and Red Power Cables are commonly used for electrical and DC power wiring where two-color conductor identification is useful for equipment assembly, installation and maintenance.

2. Why are red and black conductors used together?
The contrasting colors make the conductors easier to distinguish visually. In appropriate DC wiring applications, this can help installers identify different sides of the power connection more efficiently.

3. Can XUNPU customize the cable length?
Yes. XUNPU can provide customized cable lengths based on equipment dimensions, wiring routes, installation distances and customer assembly requirements.

4. Can the conductor size be customized?
Yes. Conductor specifications can be selected according to the required electrical load, cable length and application conditions. The appropriate specification should be confirmed based on the equipment design.

5. Can the cable be supplied with terminals or connectors?
Yes. Depending on the product design, suitable terminals, connectors or other termination configurations can be incorporated into the cable assembly.

6. Are Black and Red Power Cables suitable for industrial equipment?
They can be used in compatible industrial applications where the selected cable construction, conductor specifications and termination configuration meet the equipment's electrical and environmental requirements.

7. Can these cables be used for battery connections?
They can be considered for suitable battery-powered equipment and DC systems where the electrical specifications and cable construction match the requirements of the application.

8. Can XUNPU produce custom cable assemblies for OEM products?
Yes. XUNPU can develop customized cable assemblies according to requirements such as cable length, conductor configuration, termination method, connector interface and equipment structure.

9. How should the correct cable specification be selected?
The cable should be selected according to factors such as operating voltage, current, conductor size, cable length, installation environment and termination requirements. These parameters should be confirmed before production.
