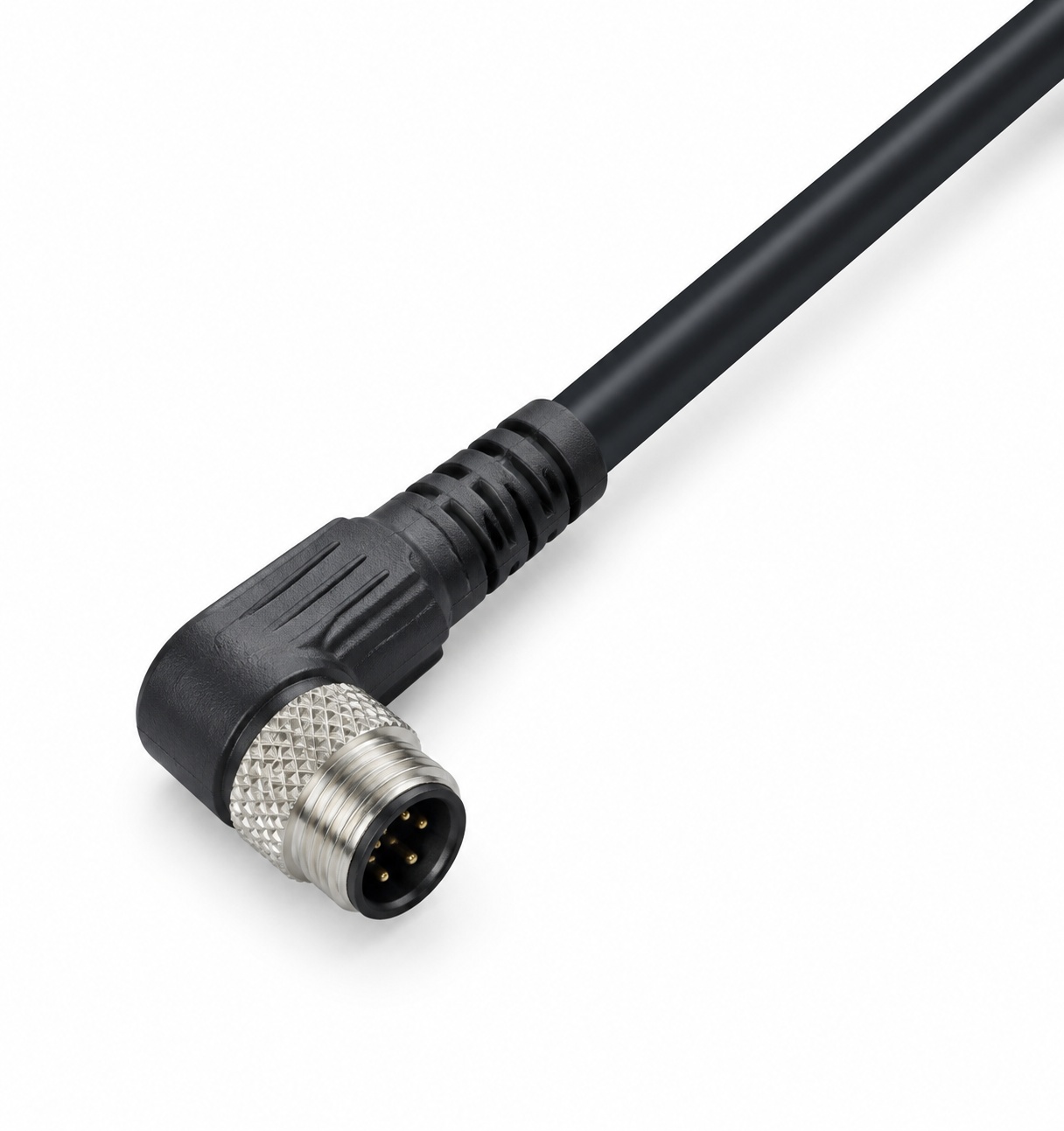

M8 Male Molded Cable Angled is a compact industrial cable assembly built around an M8 male connector with an angled cable outlet. The product is designed for applications where a direct cable exit may occupy unnecessary space or interfere with adjacent machine components. By directing the cable away from the connector at an angle, the assembly provides a practical solution for routing electrical connections through compact or tightly arranged equipment structures.
The molded connection section creates an integrated transition between the M8 male connector and the cable, producing a finished assembly that is convenient for equipment installation. The angled configuration can help guide the cable along the surface of a machine, control panel or equipment housing instead of extending directly outward from the connector interface.
This M8 male cable is suitable for compatible industrial sensors, actuators, automation components, instrumentation and control equipment. XUNPU can configure the cable assembly around customer requirements, including cable length, conductor arrangement, connector configuration and other electrical or mechanical specifications required for OEM integration.
Product Type: M8 male molded cable with an angled cable outlet.
Connector Interface: M8 male connector designed to mate with a compatible M8 female interface or equipment port.
Cable Direction: Angled cable exit designed to guide the cable toward a preferred installation direction.
Molded Connection: The connector and cable are joined through an integrated molded section for a finished cable assembly.
Cable Length: Cable length can be customized according to equipment layout, installation distance and routing requirements.
Conductor Configuration: The number and specification of conductors can be selected according to the electrical interface of the connected device.
Electrical Parameters: Operating voltage, current capacity and signal requirements should be defined according to the connected equipment and application conditions.
Cable Construction: Insulation, jacket and conductor specifications can be selected according to the intended operating environment and equipment requirements.
Customization: Cable length, conductor configuration and assembly details can be customized for industrial equipment and OEM projects.
Angled Connector Configuration: The directional cable outlet allows the cable to leave the M8 male connector along a controlled path, helping accommodate compact equipment layouts.
Compact M8 Male Interface: The M8 format provides a compact connection option for compatible sensors, actuators and industrial electronic components.
Integrated Molded Transition: The molded connection section forms a continuous assembly between the connector and cable, creating a clean and organized cable interface.
Space-Efficient Cable Routing: The angled structure can be useful when the available space around a sensor, machine component or enclosure is restricted.
Reduced Routing Interference: Directing the cable toward a defined path can help keep the cable away from nearby machine structures and other components.
Industrial Connectivity: The M8 male interface is suitable for compatible industrial devices used in automation, sensing and control applications.
Custom Assembly Capability: XUNPU can configure cable length and wiring characteristics according to the requirements of specific equipment and OEM products.
Sensor Interconnection: Provides an M8 male cable interface for connecting compatible sensors and field devices to industrial control systems.
Signal Transmission: Supports the transmission of electrical signals between compatible industrial devices and their control or monitoring equipment.
Device Connection: Provides a ready-to-install connection between M8-compatible equipment components without requiring separate cable termination during equipment assembly.
Directional Cable Routing: The angled outlet guides the cable toward a selected direction, which can simplify installation around machinery and equipment structures.
Automation Wiring: Provides an integrated cable connection for compatible automation components, sensors, actuators and control devices.
OEM Equipment Integration: Offers a configurable M8 cable assembly that can be incorporated into the wiring architecture of customized industrial equipment.
Industrial Sensors: Suitable for compatible sensors used in position detection, proximity sensing, object detection and other industrial monitoring applications.
Factory Automation: Can be installed on automated production equipment where compact M8 connections are required between field devices and control systems.
Machine Building: The angled outlet is useful for machine designs where cables need to follow the contour or side of mechanical structures rather than extend straight from the connector.
Robotic Equipment: Can be considered for compatible robotic and automated machinery where cable orientation and routing around mechanical components need to be managed carefully.
Industrial Instrumentation: Suitable for compatible instruments and monitoring equipment using M8 interfaces for electrical signals or device connections.
Control Systems: Can connect compatible field devices to control units, I/O modules and other automation components within an industrial control architecture.
Machine Control Cabinets: The directional cable arrangement can assist with organized routing around control panels, enclosures and equipment interfaces.
OEM Automation Products: Suitable for equipment manufacturers that require customized M8 male cable assemblies based on their machine layout, electrical design and installation requirements.
1. What is an M8 Male Molded Cable Angled?
It is an M8 male cable assembly with an angled molded cable outlet. The design provides a compact industrial connection while directing the cable along a preferred routing path.
2. What is the purpose of the angled cable outlet?
The angled outlet changes the cable direction immediately after the M8 connector, which can help improve routing where surrounding components or equipment structures limit the available installation space.
3. Is this product an M8 male connector?
Yes. The cable uses an M8 male interface intended to connect with a compatible M8 female connector or equipment interface.
4. Can this M8 cable be used with industrial sensors?
Yes. It can be used with compatible M8 sensors and other industrial field devices. The connector configuration and electrical characteristics should be matched to the specific sensor or equipment.
5. Can XUNPU customize the cable length?
Yes. Cable length can be produced according to the distance between the M8 connection point and the connected control or electrical equipment.
6. Can the conductor configuration be customized?
Yes. Conductor count and wire specifications can be configured according to the signal, power or electrical interface requirements of the customer's application.
7. Why choose an angled M8 cable instead of a straight cable?
An angled configuration can provide a more practical cable exit direction when space around the connector is limited or when the cable needs to follow the side of a machine or equipment enclosure.
8. Is the M8 male molded cable suitable for OEM equipment?
Yes. XUNPU can provide customized M8 male cable assemblies for OEM automation equipment based on connector configuration, cable length, wiring requirements and equipment layout.
9. What specifications should be confirmed before ordering?
The main requirements include M8 connector configuration, cable length, conductor arrangement, electrical characteristics, cable construction, outlet orientation and the installation environment of the target equipment.
