M8 4 Pin Male Female Circular Connector

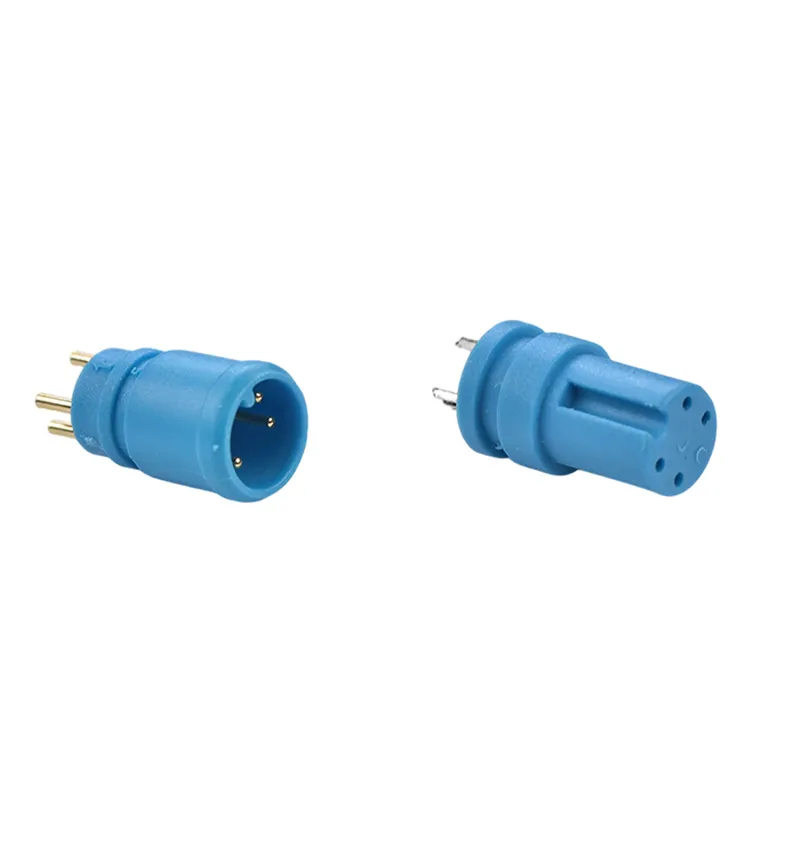

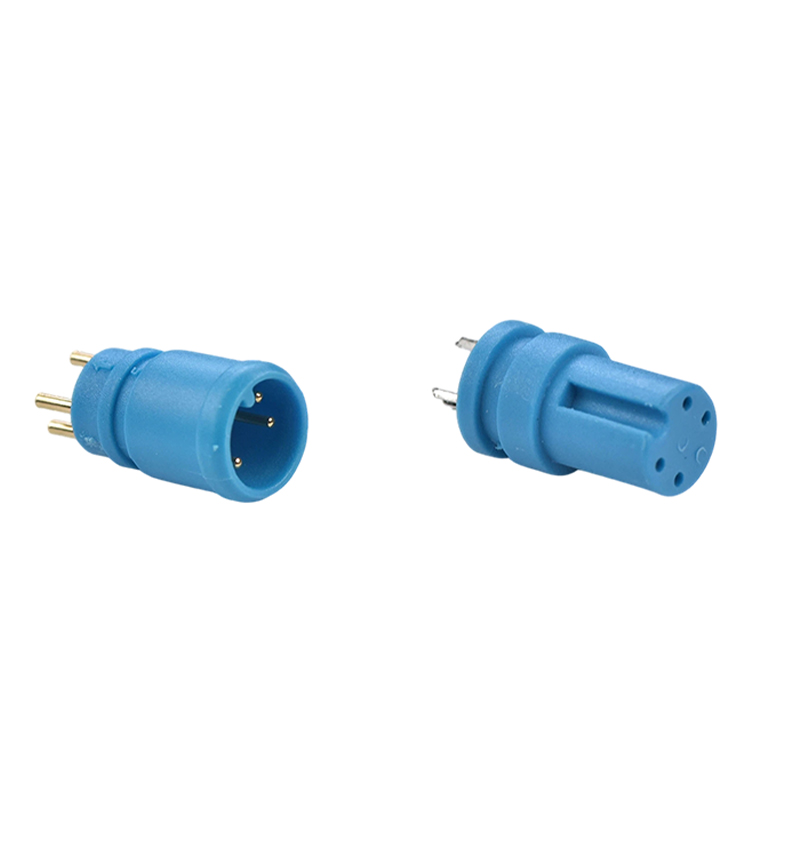

The M8-4P Circular Connector is designed for electrical assemblies requiring four contact positions within a compact circular interface. The product consists of two matching components with blue molded housings and different mating-end structures.

One component features a recessed circular opening containing metallic contacts. The other has a projecting front section with corresponding contact openings. Both housings incorporate rounded cylindrical profiles and raised sections near the mating area.

The four-position configuration allows multiple electrical conductors to be organized through a single connector pair, provided the contact arrangement matches the intended circuit.

Four-Position Contact Layout

The M8-4P connector provides four electrical contact positions. This arrangement supports circuits that require more connections than a two-pin or three-pin interface while retaining a compact circular format.

The contact positions must correspond between the two mating components. Each contact's electrical function depends on the wiring design of the connected equipment.

Before assembly, confirm the contact numbering and conductor assignments against the product drawing. This helps prevent incorrect wiring and ensures that the connector is used with the intended circuit configuration.

Blue Molded Housing and Physical Profile

The connector features a blue exterior with a molded cylindrical body. The housing surrounds the contact interface and forms the external structure used during installation and mating.

Visible design features include:

• Blue molded housing on both connector components.

• Circular contact interface with four positions.

• Rounded cylindrical body.

• Raised flange sections near the mating area.

• Projecting connector section with a longitudinal guide feature.

• Metallic terminals visible at the rear of the components.

The housing profile and guide structure should be considered when checking installation clearance and compatibility with the corresponding connector.

Mating Alignment and Connector Orientation

The male and female components have complementary mating-end profiles. The projecting section includes a molded guide feature that serves as an orientation reference during connection.

Correct alignment is important because the four contacts must meet their corresponding terminals. The connector halves should be positioned according to their mating geometry before being joined.

Avoid forcing the components together if the interfaces do not align. Inspect the contact areas for deformation or obstruction before installation.

Four-Conductor Electrical Connections

The M8-4P connector can be considered for compatible electrical assemblies requiring four separate contact positions.

Control Circuit Wiring

The four-contact layout can accommodate compatible control circuits where multiple conductors need to be connected through one interface.

Signal Connections

It may be used for suitable signal connections when the electrical characteristics and contact assignments meet the circuit requirements.

Electronic Equipment Interfaces

The connector provides a defined mating structure for connecting compatible electronic components or wiring assemblies.

Modular Equipment Connections

The separate male and female components allow compatible equipment sections to be connected through a detachable electrical interface.

Product Configuration and Features

• Model: M8-4P

• Product Type: Circular Electrical Connector

• Connector Configuration: Male and Female

• Contact Positions: 4

• Housing Color: Blue

• Housing Shape: Cylindrical

• Mating Structure: Recessed and Projecting Interfaces

• External Features: Molded Flanges and Guide Structure

• Contact Appearance: Metallic

Exact dimensions, terminal specifications, housing material, rated voltage, rated current and environmental protection level should be confirmed using the manufacturer's technical documentation.

Installation and Compatibility Requirements

Before selecting the M8-4P connector, check the mating dimensions, contact arrangement and terminal configuration against the equipment requirements.

The four contacts must be assigned according to the intended circuit. During installation, inspect the mating faces and ensure that the connector components are correctly oriented.

For equipment exposed to moisture, dust, vibration or temperature changes, verify the applicable environmental and mechanical specifications before use.

Frequently Asked Questions (FAQ)

Q1: What does M8-4P mean?

M8-4P identifies the connector model, with 4P indicating a four-contact configuration. Exact dimensions should be confirmed from the product drawing.

Q2: How many electrical contacts does the connector have?

The M8-4P connector has four contact positions arranged within a circular interface.

Q3: What color is the connector housing?

The illustrated connector pair has blue molded housings.

Q4: What is the difference between the male and female components?

The two components have different mating-end structures. One has a recessed contact area, while the other has a projecting section with corresponding contact openings.

Q5: Can the M8-4P be used for signal or control connections?

It may be suitable for compatible signal or control circuits when the contact assignments and electrical ratings meet the application requirements.

Q6: Is the M8-4P connector waterproof?

Waterproof performance cannot be confirmed from the image alone. Any IP rating or sealing capability must be verified from the product specification.

Q7: Can this connector mate with other M8 connectors?

Compatibility should not be assumed from the M8 designation alone. The contact count, mating geometry, dimensions and electrical specifications must be checked.

Q8: What should be confirmed before ordering?

Check the model, contact arrangement, mating dimensions, terminal type, rated voltage, rated current and intended operating conditions.
