M7 3 Pin Male Female Circular Connector

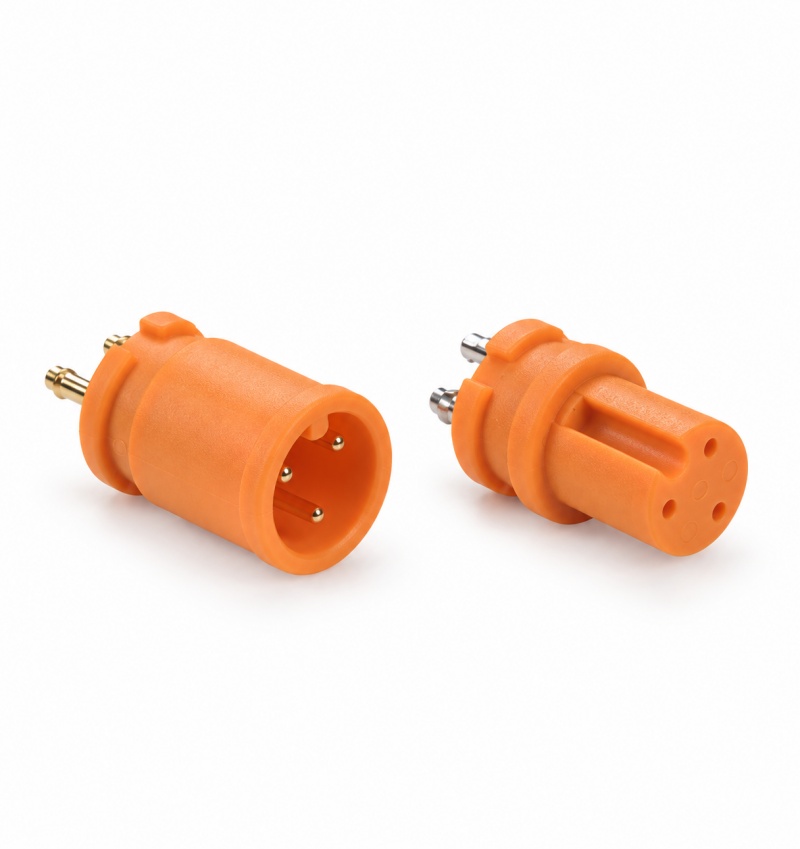

The M7-3P Circular Connector is a three-position electrical connector consisting of matching male and female components. Both parts feature an orange molded exterior with a cylindrical profile, providing a recognizable connection structure for equipment requiring three electrical contact positions.

The connector pair has different mating-face designs. One component contains a recessed circular cavity with three contact positions, while the other has a projecting cylindrical section with corresponding contact openings. The external housing includes molded flanges and raised sections that form part of its overall connector geometry.

Three-Position Contact Configuration

The M7-3P uses three separate contact positions within a circular mating interface. This configuration allows three conductors to be brought together through a single connector pair.

The contact positions are arranged within the connector body rather than distributed across separate individual terminals. This reduces the number of separate connection points required in a three-wire assembly.

Electrical functions assigned to the three positions depend on the equipment circuit. Contact numbering and conductor assignments should follow the corresponding wiring diagram.

Orange Housing and Molded Body Design

The connector features a bright orange exterior with a molded cylindrical construction.

Several physical details can be identified from the product design:

• Orange housing on both connector components.

• Three-position contact arrangement.

• Circular mating interface with recessed contact areas.

• Raised flange sections around the connector bodies.

• Molded exterior features near the mating ends.

• Metallic connection terminals visible at the rear.

The different front-end shapes distinguish the two mating components, while their matching outer profiles form a coordinated connector pair.

Connector Mating and Contact Alignment

The M7-3P male and female components are intended to form a compatible three-contact electrical interface.

During mating, the contact positions must correspond correctly. The connector bodies should be aligned according to their physical mating geometry before the components are joined.

Incorrect alignment can interfere with contact engagement and may damage the internal conductive elements. The connector should not be forced into position when resistance indicates a possible mismatch.

The exact mating and retention method should be confirmed using the product's dimensional drawing.

Electrical Connection Applications

The M7 3 Pin Connector can be evaluated for electrical assemblies requiring three separate conductive paths.

Three-Wire Equipment Connections

The connector provides a single interface for equipment wiring where three conductors need to be connected between compatible components.

Electronic Control Circuits

It may be suitable for control equipment with three-contact connection requirements, provided the electrical specifications match the circuit.

Signal Wiring Assemblies

The three-position arrangement may be used for compatible signal wiring configurations when the connector's contact characteristics satisfy the equipment requirements.

Detachable Equipment Wiring

The separate connector halves allow a connection to be made or disconnected during equipment assembly, maintenance, or component replacement.

Contact Terminals and Wiring Preparation

The product image shows metallic terminals extending from the rear of the connector components. These terminals form the electrical connection points between the connector contacts and the external wiring.

Before installation, the termination method should be checked against the product specification.

Wiring preparation should account for conductor size, terminal arrangement, contact identification, and insulation clearance.

The three electrical positions should be tested for correct continuity after assembly. Particular attention should be given to preventing unintended electrical connections between adjacent contacts.

Technical Characteristics

The following details identify the visible product configuration:

• Model: M7-3P

• Connector Type: Circular Electrical Connector

• Contact Positions: 3

• Connector Configuration: Male and Female

• Housing Color: Orange

• Housing Profile: Cylindrical

• Contact Interface: Recessed and projecting mating structures

• Terminal Appearance: Metallic

• Body Features: Raised flanges and molded exterior sections

Rated voltage, rated current, contact material, insulation resistance, operating temperature, and environmental protection level require confirmation from the applicable technical specification.

Assembly and Inspection

Before connecting the M7-3P components, inspect the contact areas for damage, contamination, or deformation.

The three contact positions must align correctly, and the wiring sequence must match the equipment's electrical diagram.

After assembly, inspect the mating interface to confirm that the components are properly engaged. Electrical continuity and insulation checks should be performed as required by the application.

For equipment exposed to movement, vibration, dust, or moisture, the connector's verified mechanical and environmental ratings should be considered during selection.

Frequently Asked Questions (FAQ)

Q1: How many contacts are included in the M7-3P connector?

The M7-3P has three electrical contact positions arranged within a circular connector interface.

Q2: What is the housing color of this connector?

Both connector components feature an orange molded housing.

Q3: Is the M7-3P available in male and female configurations?

The product image shows matching male and female components with different mating-end structures.

Q4: Can this connector be used for three-wire electrical connections?

Yes. Its three-contact layout can accommodate compatible three-wire connections when the circuit requirements fall within the connector's specified electrical ratings.

Q5: What type of terminals does the connector have?

The image shows metallic terminals at the rear of the connector bodies. The exact terminal dimensions and connection method should be confirmed from the technical drawing.

Q6: Is the M7-3P connector waterproof?

The waterproof rating cannot be determined from the external appearance alone. Refer to the product specification for any confirmed IP rating.

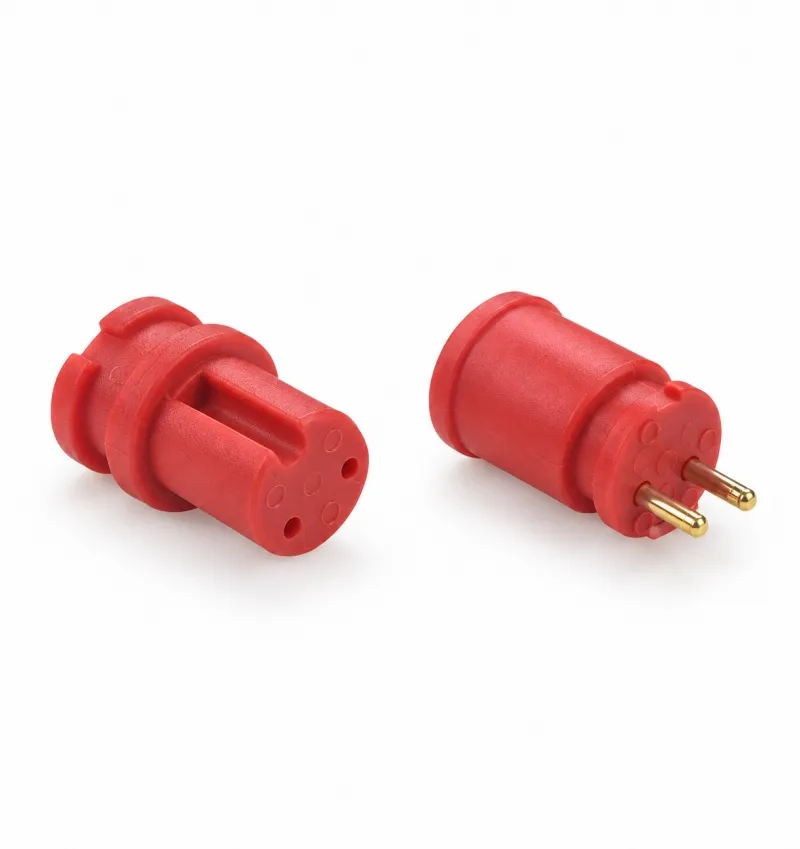

Q7: What is the main difference between M7-2P and M7-3P connectors?

The M7-2P has two contact positions, while the M7-3P has three. Their contact arrangements are different, so compatibility should not be assumed.
