The M6 6 Pin Male Female Circular Connector is designed for electrical connections that require multiple contact points within a compact housing. It features a six-position contact layout and matching male and female connector structures, allowing compatible electrical components and cable assemblies to be connected through a detachable interface.

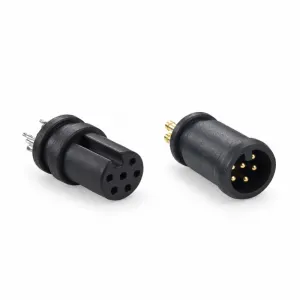

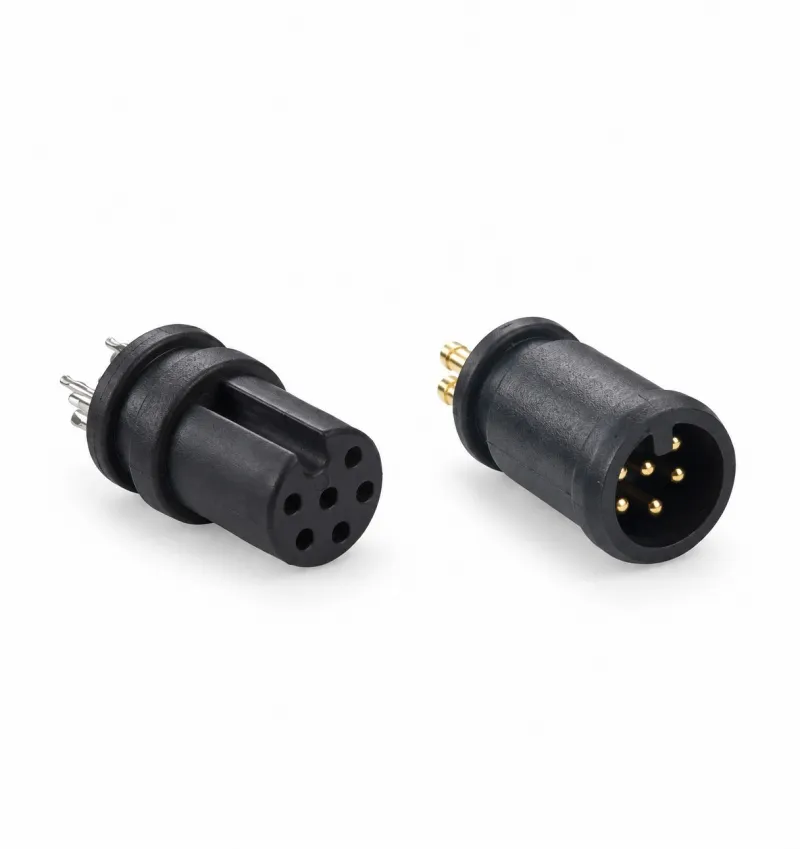

The connector has a black cylindrical body with recessed contact areas. The male connector contains six metal pins, while the female connector provides corresponding socket contacts. This arrangement makes it suitable for equipment designs where a compact multi-pin connection is required.

Compact 6-Pin Connection Structure

The six-contact configuration allows multiple electrical circuits to be arranged within one circular connector interface. Compared with using several individual connections, a multi-pin connector can simplify the physical arrangement of wiring in compact equipment.

The circular housing provides a defined mating interface, while the recessed contact design helps position the contacts within the connector body. Its compact construction makes it a practical option for electronic assemblies with limited installation space.

Male and Female Connector Design

The M6 6-pin connector is available in matching male and female configurations.

The male side features six projecting metal contacts positioned inside a circular housing. The female side contains six corresponding contact openings designed to accommodate the matching pins.

When selecting a connector pair, the contact arrangement, mating dimensions, polarity, and wiring assignments should be checked to ensure compatibility with the intended equipment.

Physical Features

• Connector Type: M6 circular connector

• Contact Configuration: 6 pins

• Connector Gender: Male and female

• Housing Color: Black

• Housing Shape: Cylindrical

• Contact Style: Male pins and female sockets

• Connection Format: Detachable mating connector pair

Electrical Equipment Integration

The M6 6-pin male and female connector can be considered for electronic equipment requiring a compact multi-contact interface. Its six-contact layout provides flexibility for arranging electrical connections according to the circuit design.

Possible applications include compact control modules, electronic instruments, equipment wiring assemblies, and compatible signal connection systems.

For each application, the connector's electrical ratings, pin assignments, installation dimensions, and operating conditions should be verified before integration.

Connector Selection and Installation

Choosing the correct M6 6-pin connector involves more than matching the number of contacts. The mating structure and installation requirements must also correspond to the equipment design.

Before assembly, verify the contact numbering and wiring diagram to prevent incorrect circuit connections. The male and female interfaces should be properly aligned during mating to avoid damage to the contacts.

Cable termination methods, mounting arrangements, and environmental protection requirements should be confirmed according to the selected connector model.

Frequently Asked Questions (FAQ)

Q1: What is an M6 6-pin male female connector?

An M6 6-pin male female connector is a compact circular electrical connector with six contact positions. It uses compatible male and female interfaces to connect electrical circuits between equipment components or cable assemblies.

Q2: What is the difference between the male and female connectors?

The male connector contains projecting metal pins, while the female connector has corresponding socket contacts. Both parts must have compatible mating dimensions and contact arrangements.

Q3: Can this connector be used for signal transmission?

The six-contact configuration can accommodate signal connections when the electrical characteristics and wiring arrangement meet the application's requirements.

Q4: Is the M6 6-pin connector waterproof?

Waterproof performance depends on the specific connector construction, sealing design, and installation conditions. The IP protection rating should be confirmed for the selected model.

Q5: Can the M6 6-pin connector be used in custom cable assemblies?

It may be incorporated into custom cable assemblies when the termination structure, cable dimensions, and electrical specifications are compatible with the connector model.

Q6: What should be checked before ordering?

Important details include the six-pin contact arrangement, male and female compatibility, connector dimensions, rated voltage, rated current, cable termination method, and environmental requirements.
