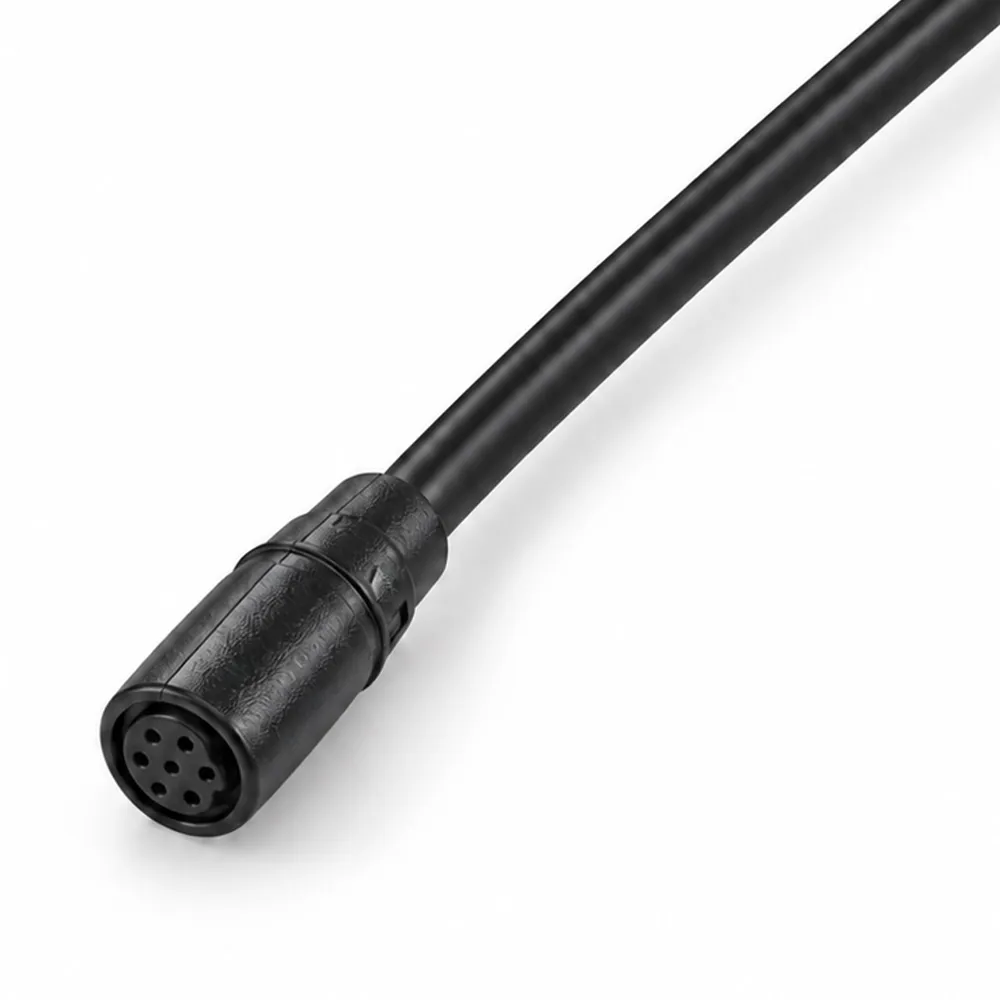

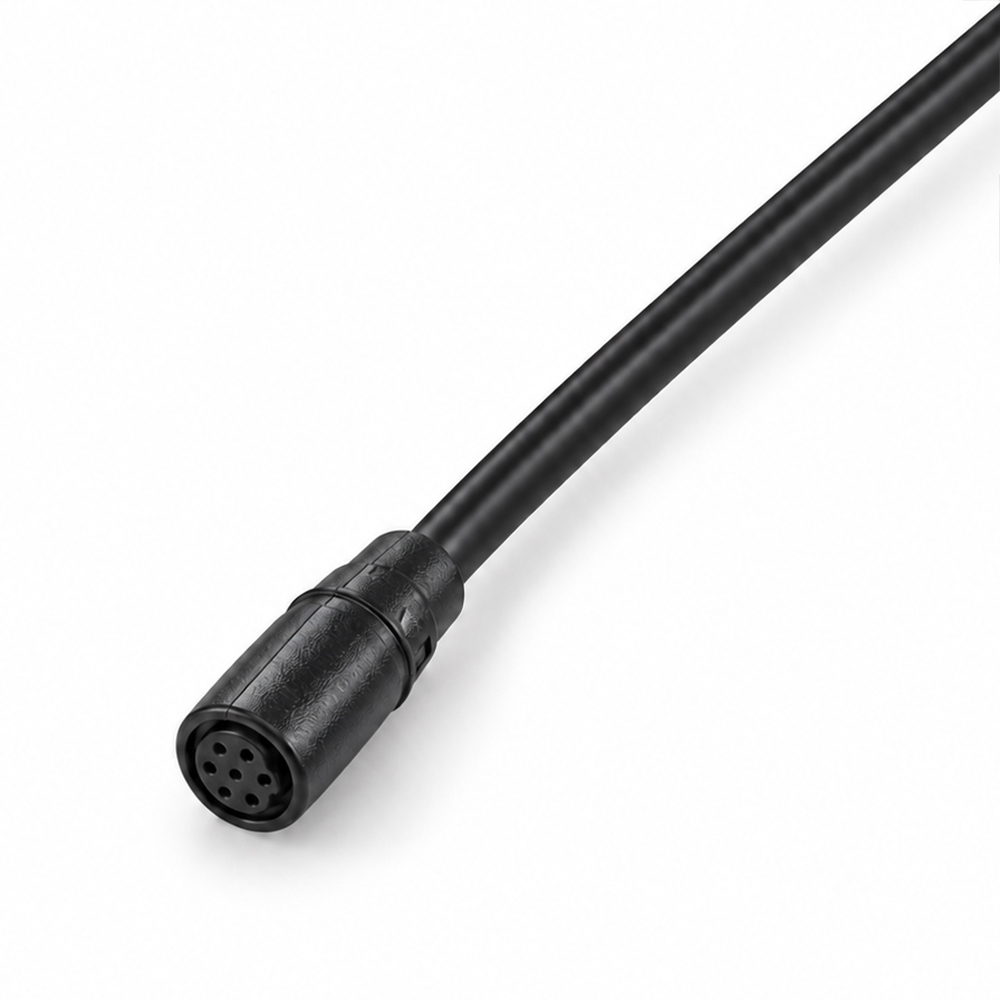

The Mini M6 B Code Female Molded Cable is a compact connection assembly engineered for equipment that requires a female M6 interface with B coding. The product combines a miniature female connector and cable into one molded assembly, providing a practical wiring component for compact sensors, measuring devices, automation modules, electronic equipment and machine components.
Its Mini M6 format is suited to applications where connector dimensions need to remain small without changing the overall equipment connection architecture. The female interface is intended to mate with a corresponding compatible connector, while the B coding defines the applicable connection configuration and helps distinguish it from other coded interfaces.
Unlike a connector supplied separately from the cable, this molded cable is delivered as an integrated assembly. The connection area is formed together with the cable, giving equipment manufacturers a pre-configured component that can be incorporated into the wiring process without requiring separate connector-to-cable assembly on site.
The compact construction is especially useful around densely arranged electronic or mechanical components. It allows the connection point to be positioned within smaller equipment spaces while the cable can be routed toward the required control, power or signal interface according to the actual system design.
For customized projects, XUNPU can configure the Mini M6 B Code Female Molded Cable around the customer's connection requirements. Cable length, conductor arrangement, cable-end termination and connector configuration can be specified according to the target device, wiring route and production requirements.
Product Type: Mini M6 B Code Female Molded Cable.
Connector Interface: Mini M6 female connector with B-coded configuration.
Mating Interface: Intended for a compatible male connector with the corresponding M6 B-coded configuration. Final mating specifications should be verified before selection.
Cable Structure: Integrated molded cable assembly with the connector and cable formed as a finished connection unit.
Cable Length: Can be produced according to the required connection distance and equipment installation layout.
Conductor Arrangement: Wire quantity, conductor construction and internal circuit arrangement can be specified according to the connected device.
Cable End: The non-connector end can be configured for the customer's required termination or equipment-side connection method.
Cable Routing: Straight or application-specific routing arrangements can be discussed according to the available equipment space and installation direction.
Customization: Cable dimensions, conductor configuration, connector arrangement and termination requirements can be adapted for OEM projects.
Electrical Performance: Voltage, current, conductor size and other electrical parameters should be confirmed against the final cable construction and the requirements of the connected equipment.
A key feature of this assembly is its combination of a miniature M6 footprint with a B-coded female interface. This configuration gives equipment designers a compact connection option for applications in which available panel, housing or machine space is carefully controlled.
The female connector provides a defined receiving interface for the appropriate mating component. This makes the cable assembly suitable for device-side connection layouts where the cable needs to connect directly to a compatible male M6 B-coded interface.
The molded construction creates a continuous assembly between the connector area and cable. For equipment manufacturers, this can simplify component handling because the cable arrives as a prepared unit rather than requiring a separate connector assembly process during final installation.
Its compact geometry can be advantageous in applications with closely positioned components. Designers can consider the M6 interface when developing smaller instruments, compact automation modules or sensor assemblies where connector size has a direct impact on the available installation area.
The assembly is also suitable for customized production. Rather than relying on a standard cable length for every application, OEM customers can specify dimensions and wiring details that correspond to their own equipment architecture and manufacturing process.
The Mini M6 B Code Female Molded Cable provides an electrical interface between a compatible M6 B-coded male device and the customer's cable or equipment wiring system. Depending on the selected conductor configuration, the assembly can be used for signal, power or other device-level electrical connections.
The female connector serves as the equipment-side mating interface, while the attached cable extends the electrical connection to another part of the system. This arrangement is useful when a compact field device needs to be connected to a remote wiring point or control interface.
The molded construction also supports pre-assembled equipment wiring. Manufacturers can receive a defined cable assembly with the required connector and cable arrangement, reducing the number of separate components that need to be prepared during production.
With an appropriate cable length, the assembly can follow the intended wiring route through compact equipment. This can help avoid excessive cable length and provide a more organized connection between sensors, modules and the main equipment wiring structure.
For OEM integration, the cable functions as a standardized connection component that can be incorporated into repeat-production equipment. Customized specifications allow the assembly to correspond more closely with the customer's mechanical and electrical design.
Precision Sensor Connections: Compatible sensing devices can use the Mini M6 B female assembly where a small B-coded interface is required. The compact connector format is suitable for sensor installations with limited surrounding clearance.
Compact Measurement Equipment: Instrumentation and measurement devices can integrate the cable into their connection architecture when the available space calls for a smaller connector solution and the equipment uses the corresponding M6 B-coded interface.
Miniature Automation Modules: Small automation components can use the cable assembly for device-level connections, allowing electrical interfaces to be positioned within compact machine structures without introducing a larger connector footprint.
Electronic Control Devices: Compact controllers and electronic modules can incorporate the female cable where a compatible B-coded M6 connection is specified for external or internal device wiring.
Machine Subassemblies: Equipment builders can use customized cable assemblies to connect individual machine components with the main wiring system. Cable length can be selected to suit the physical distance between connection points.
Compact Industrial Instruments: Industrial instruments with constrained housing dimensions can benefit from the miniature connection format when the M6 B-coded interface is compatible with the instrument's electrical architecture.
OEM Equipment Manufacturing: Manufacturers can specify the cable assembly during product development and integrate the finished component into repeated production runs, helping maintain consistent connector and cable configurations between equipment units.
1. What is a Mini M6 B Code Female Molded Cable?
It is a compact cable assembly featuring a Mini M6 female connector with a B-coded interface and an integrated molded cable. It is intended for compatible sensors, instruments, automation devices and electronic equipment.
2. What type of connector mates with this cable?
The female connector is intended to mate with a compatible M6 B-coded male interface. The exact mating connector should be confirmed against the specifications of the target equipment.
3. Why is the Mini M6 format useful?
The Mini M6 format provides a smaller connection footprint for equipment where installation space is limited. It can be considered for compact sensors, instruments and automation components with suitable M6 interfaces.
4. What does B Code identify?
B Code identifies a specific connector coding arrangement. It helps define the intended mating configuration and should be matched with the corresponding connector on the equipment.
5. Can XUNPU customize the cable length?
Yes. Cable length can be specified according to the distance between the device and equipment-side connection point, as well as the customer's installation requirements.
6. Can the wiring arrangement be customized?
Yes. Conductor quantity, wire configuration and cable-end termination can be discussed according to the electrical interface and wiring architecture of the customer's equipment.
7. Is this cable intended for industrial automation?
It can be used in compatible industrial automation applications, including compact sensors, automation modules and machine subassemblies where an M6 B-coded female connection is specified.
8. Can this cable be produced for OEM equipment?
Yes. XUNPU supports customized cable assemblies for OEM equipment and can discuss connector configuration, cable length, conductor arrangement and termination requirements based on the project specifications.
9. What information should be provided for a customized cable?
Useful information includes the required connector interface, mating connector, cable length, conductor requirements, termination method, installation environment and equipment connection diagram or technical drawing.
