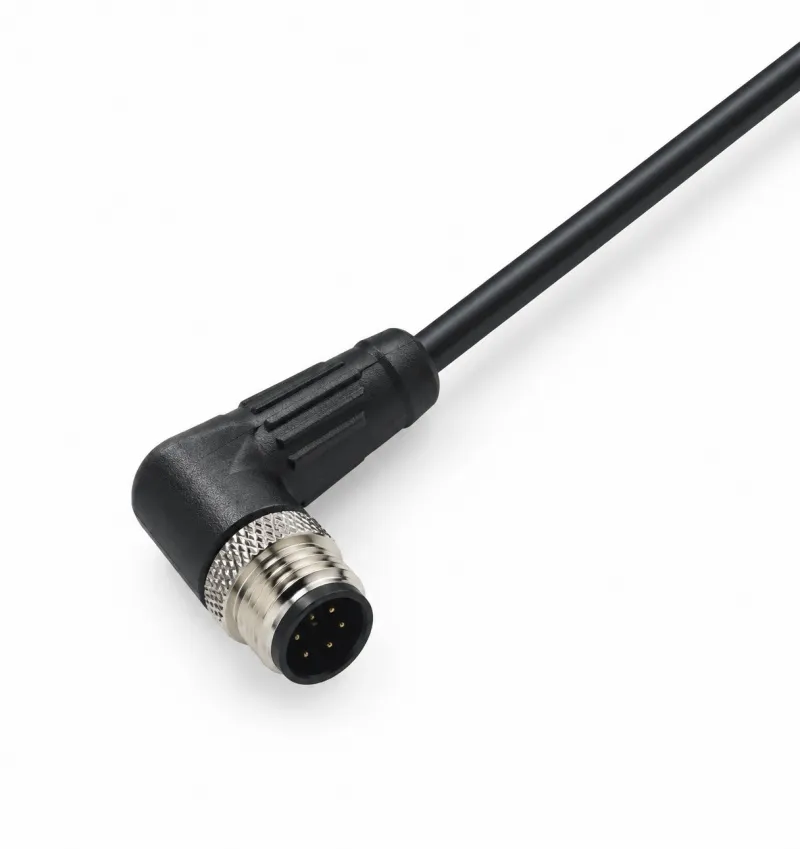

M12 Male Angled Molded Cable is a pre-assembled connection component combining an M12 male interface with an angled cable outlet. The directional structure allows the cable to leave the connector along a controlled path rather than extending directly behind the connection point. This configuration can be particularly useful when the available installation area requires the cable to be routed around equipment structures, sensor housings, machine components or control panels.
The molded construction integrates the connector and cable into a finished assembly, creating a practical wiring component for compatible industrial equipment. The M12 male interface can be connected with a corresponding female M12 interface used on sensors, automation devices, instrumentation and machinery. By combining the connector and cable as one assembly, the product can simplify component selection and reduce additional connector-to-cable assembly work during equipment installation.
Compared with a straight cable configuration, the angled design gives equipment designers greater flexibility when planning cable exits and routing paths. It can be selected for installations where cables need to move laterally or follow the contour of a machine rather than extending straight outward. XUNPU can adapt the cable assembly according to customer drawings and application requirements, including cable length, conductor arrangement, connector configuration and cable-end termination.
The M12 Male Angled Molded Cable is suitable for OEM equipment manufacturers, automation system integrators and industrial component suppliers that require a finished M12 cable solution with a defined connector orientation. The specific connector and cable configuration should be confirmed according to the electrical interface, mating requirements and installation conditions of the target equipment.
Connector Type: M12 male connection interface for use with a compatible female M12 mating interface.
Cable Orientation: Angled cable outlet designed to guide the cable away from the connector along a defined directional path.
Assembly Construction: Molded cable assembly integrating the M12 male connector and cable into one finished connection component.
Cable Length: Configurable according to equipment dimensions, routing distance and installation requirements.
Conductor Arrangement: Can be specified according to the electrical circuits, interface configuration and wiring requirements of the application.
Cable-End Termination: The free cable end can be prepared according to the customer's downstream connection method and equipment assembly process.
Application Compatibility: Designed for compatible sensors, automation equipment, instrumentation, industrial machinery, control systems and OEM products.
Exact pin configuration, electrical ratings, cable construction and connector specifications should be confirmed against the selected product version and customer technical requirements before production.
Directional Cable Exit: The angled outlet changes the cable departure direction immediately after the M12 connection, allowing wiring to follow a more controlled path around equipment structures.
M12 Male Interface: The male connector format is designed for mating with compatible female M12 connection points commonly incorporated into industrial components and equipment.
Integrated Molded Design: The connector and cable form a finished assembly, providing a convenient alternative to separately sourcing and assembling the connection components.
Space-Conscious Routing: The angled configuration can help manage cable direction in installations where a straight rear cable exit would interfere with surrounding components or create an impractical routing path.
Consistent Assembly Format: A pre-assembled cable structure can support repeatable wiring arrangements across equipment models and production batches when the same configuration is specified.
Application-Specific Configuration: XUNPU can accommodate customer requirements for cable length, conductor arrangement, connector selection and cable-end preparation.
OEM-Friendly Design: The cable assembly can be defined around equipment drawings and wiring layouts, making it suitable for integration into customized industrial products.
The primary function of the M12 Male Angled Molded Cable is to establish an electrical connection between compatible M12 equipment interfaces and the associated cable wiring system. The M12 male connector provides the mating interface, while the cable carries the required electrical circuits toward the connected control device, wiring harness or other termination point.
A second important function is cable direction management. Because the cable exits from the connector at an angle, the assembly can direct wiring along a selected route immediately after the connection point. This can help when cables must travel alongside machine frames, equipment panels, sensor housings or other mechanical structures.
The molded structure also provides a completed connector-and-cable assembly for equipment integration. Instead of preparing the connector and cable separately, equipment manufacturers can specify the required assembly configuration as a single component for installation and production use.
For customized applications, XUNPU can configure the assembly according to the intended electrical interface and physical installation arrangement. Cable length, conductor configuration and cable-end termination can be coordinated with customer drawings to make the finished assembly suitable for a particular equipment architecture.
Industrial Sensors: The M12 male interface can be used with compatible female connection points on industrial sensors and sensing devices. The angled cable outlet helps guide the cable along a practical direction when the sensor is installed close to other machine components.
Factory Automation: Automation systems often require structured connections between sensors, actuators, control devices and machine wiring. An angled M12 cable can help organize the connection layout where cables need to change direction immediately after the connector.
Machine Equipment: Production machinery may contain closely positioned mechanical components, housings and electrical interfaces. The directional cable outlet provides an alternative to a straight cable configuration when routing space behind the connector is restricted.
Instrumentation: Compatible measurement and monitoring equipment can incorporate M12 connection interfaces for electrical wiring. The angled assembly can be selected when the cable needs to follow the physical layout of the instrument or its mounting structure.
Industrial Control Systems: Control modules and equipment panels may use M12 connections for field devices and machine components. The angled cable configuration can assist with maintaining an orderly connection path between field equipment and the wider wiring system.
Compact Equipment Modules: In compact assemblies, cable direction can be an important part of mechanical integration. The angled M12 male cable provides an option for directing wiring away from crowded connector areas and toward the intended routing channel.
OEM Equipment Integration: Equipment manufacturers can specify cable length, conductor arrangement, connector configuration and termination details to match a particular product design, wiring diagram or installation procedure.
1. What is an M12 Male Angled Molded Cable?
An M12 Male Angled Molded Cable is a finished cable assembly featuring an M12 male connection interface and an angled cable outlet. The connector and cable are integrated into one molded assembly for compatible industrial equipment and wiring applications.
2. What is the purpose of the angled cable outlet?
The angled outlet directs the cable away from the connector along a controlled path. This can be useful when the cable needs to run beside a machine structure, equipment panel or other component rather than extending straight behind the connector.
3. What is the difference between an M12 Male Angled Cable and an M12 Male Straight Cable?
The main difference is the cable exit direction. A straight assembly allows the cable to extend directly from the connector, while an angled assembly directs the cable along a different path. The selection should be based on the equipment layout and required cable routing.
4. Can the cable length be customized?
Yes. XUNPU can provide cable lengths according to customer installation dimensions and equipment requirements. The desired cable length should be specified during the technical confirmation stage.
5. Can the cable-end termination be customized?
Yes. The cable end can be prepared according to the customer's connection method and equipment assembly requirements. Details should be confirmed through the technical specification or wiring drawing.
6. Is this M12 male cable suitable for automation equipment?
It can be used in compatible automation applications where an M12 male interface and angled cable routing are required. The final configuration should be matched to the equipment's mating interface and electrical requirements.
7. Can XUNPU manufacture customized M12 Male Molded Cable assemblies?
Yes. XUNPU can develop customized assemblies based on requirements such as cable length, conductor arrangement, connector configuration and cable-end termination. Customer drawings and wiring specifications can be used to define the finished assembly.
8. Is an angled M12 cable useful in compact installations?
It can be useful when a straight cable outlet would create an unsuitable routing path or conflict with surrounding equipment. The angled configuration allows the cable to move away from the connector in a more controlled direction.
9. What information should be provided when requesting an M12 cable quotation?
Useful information includes the M12 connector configuration, cable length, conductor requirements, cable-end termination, required quantity, application environment and available technical drawings or wiring specifications. These details help XUNPU determine the appropriate cable assembly configuration.
