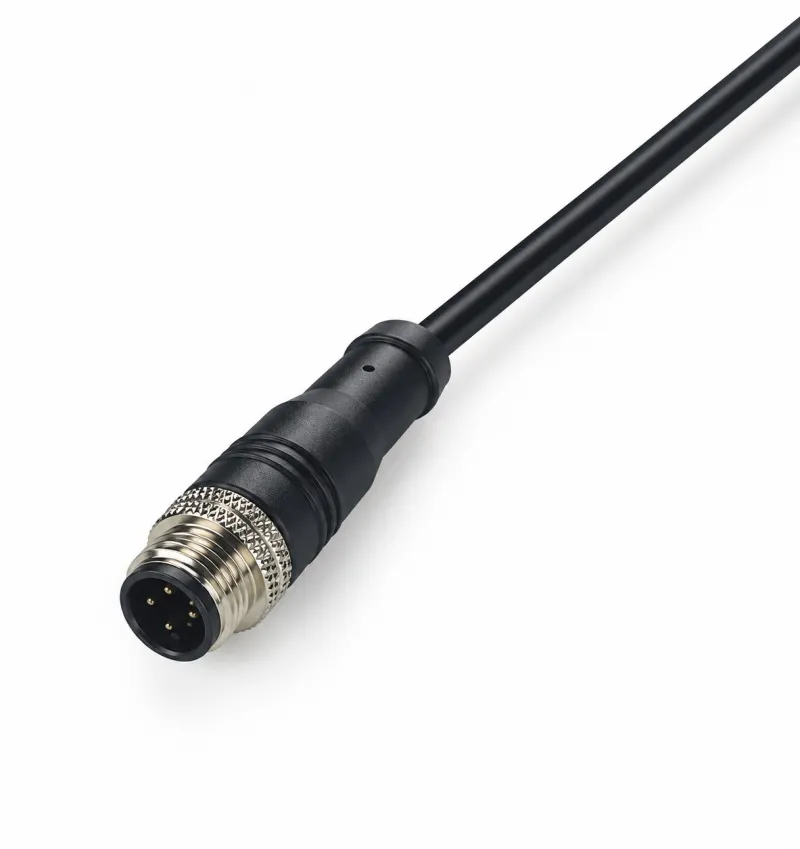

M12 Male Straight Molded Cable is an integrated industrial cable assembly designed around an M12 male connection interface and a straight cable outlet. The cable extends directly from the rear of the connector, creating a simple linear connection structure for equipment wiring. This configuration is well suited to installations where the available routing path allows the cable to continue naturally away from the mating point without requiring an immediate directional change.
The molded construction combines the M12 male connector and cable into a completed assembly, giving equipment manufacturers a ready-to-use wiring component rather than separate connector and cable parts. The male M12 interface is intended for connection with a compatible female interface on sensors, automation components, instrumentation or industrial equipment.
A straight cable configuration can be particularly practical for equipment layouts with clear cable paths behind or around the connection point. It provides a straightforward approach to sensor wiring, machine connections and control-system integration while maintaining a consistent cable exit direction. XUNPU can configure the assembly according to customer requirements, including cable length, conductor arrangement, connector configuration and cable-end termination.
For OEM manufacturers and industrial system integrators, the M12 Male Straight Molded Cable can be incorporated into standardized equipment wiring schemes or customized product designs. The final cable specification can be established from the equipment drawing, electrical interface and installation requirements to ensure the selected assembly matches the intended application.
Connector Interface: M12 male connection interface designed for mating with a compatible female M12 interface.
Cable Outlet: Straight cable exit extending directly from the connector for linear wiring arrangements.
Construction: Molded cable assembly integrating the connector and cable into a finished connection component.
Cable Length: Configurable according to equipment dimensions, connection distance and installation layout.
Conductor Configuration: Can be specified according to the electrical circuits and interface requirements of the target equipment.
Cable-End Preparation: The free cable end can be prepared according to the customer's downstream connection method and assembly process.
Application Type: Suitable for compatible industrial sensors, automation systems, instrumentation, control equipment and machinery.
Pin count, electrical ratings, cable construction, connector coding and other detailed specifications should be confirmed according to the selected product configuration and customer technical requirements.
Direct Cable Routing: The straight outlet allows the cable to continue directly from the M12 connector, making it suitable for installations with a naturally aligned wiring path.
M12 Male Connection: The male interface is designed for connection with a corresponding female M12 interface used on compatible industrial devices and equipment.
Integrated Molded Assembly: The connector and cable are combined into a finished component, simplifying component handling and equipment wiring compared with separately assembled parts.
Clean Cable Exit: The defined straight outlet creates a predictable departure point for the cable, which can help maintain an orderly wiring layout around equipment.
Compact Connection Format: The M12 interface provides a practical connection format for sensors, automation devices and industrial equipment where a compact connector is required.
Flexible OEM Configuration: Cable length, conductor arrangement and termination details can be adjusted to meet different equipment designs and wiring specifications.
Suitable for Standardized Wiring: A defined cable assembly can help equipment manufacturers maintain consistent connection arrangements across repeated installations or production batches.
The main function of the M12 Male Straight Molded Cable is to provide an electrical connection between compatible M12 equipment interfaces and the associated wiring system. The M12 male connector establishes the mating interface, while the cable provides the electrical path between the connected device and the selected cable termination.
The straight outlet also establishes a direct cable routing direction. When equipment has sufficient clearance behind the connector, this configuration allows the cable to follow a straightforward path without introducing an additional cable direction at the connector body.
As a molded cable assembly, the product can function as a completed wiring component within industrial equipment. This can simplify installation planning because the connector and cable are specified as one assembly, reducing the need for separate connector preparation and cable assembly during final equipment production.
For customized equipment, the assembly can be defined around the required electrical connection and physical installation arrangement. XUNPU can coordinate cable length, conductor configuration and cable-end preparation with customer drawings and wiring specifications for OEM integration.
Industrial Sensor Connections: Compatible sensors with M12 female interfaces can be connected using the M12 male cable assembly. The straight cable path is suitable when the cable can extend directly from the sensor or equipment connection.
Factory Automation: Automation systems commonly require structured connections between sensing devices, machine modules and control equipment. The straight M12 cable can be incorporated where a direct wiring path fits the machine architecture.
Machine Wiring: Production machinery with sufficient clearance around M12 connection points can use the straight cable configuration for connections between machine components and the wider electrical wiring system.
Instrumentation: Measurement and monitoring devices using compatible M12 interfaces can incorporate the cable assembly into their electrical connection structure. Cable length and termination can be specified according to the instrument layout.
Industrial Control Equipment: Control devices and machine modules can use the M12 male assembly to establish connections with compatible female interfaces while maintaining a direct cable route toward the next wiring point.
Equipment Interconnection: System integrators can use customized M12 cable assemblies to connect field devices and equipment modules within a larger industrial installation, provided that the mating and electrical specifications are compatible.
OEM Equipment Manufacturing: OEM manufacturers can specify cable length, conductor arrangement, connector configuration and cable-end termination to match individual product drawings, assembly procedures and production requirements.
1. What is an M12 Male Straight Molded Cable?
An M12 Male Straight Molded Cable is a finished cable assembly featuring an M12 male connection interface and a straight cable outlet. The connector and cable are integrated into one molded assembly for compatible industrial equipment and wiring applications.
2. What is the advantage of a straight M12 cable configuration?
A straight configuration allows the cable to extend directly from the connector. It is useful when the equipment provides sufficient clearance behind the connection point and the desired wiring path does not require an immediate directional change.
3. How does this product differ from an M12 Male Angled Molded Cable?
The primary difference is the cable outlet direction. The straight version sends the cable directly away from the connector, while the angled version changes the cable direction near the connection point. The appropriate choice depends on the physical layout and routing requirements of the equipment.
4. Can the cable length be customized?
Yes. XUNPU can configure the cable length according to the customer's equipment dimensions, installation distance and wiring layout. The required length should be confirmed during technical specification.
5. Can the cable conductors be customized?
Yes. The conductor arrangement can be specified according to the electrical interface and circuit requirements of the target application. Detailed conductor specifications should be confirmed from the customer's technical documentation.
6. Can this M12 male cable be used with industrial sensors?
Yes, provided that the sensor has a compatible female M12 mating interface and the cable's electrical configuration matches the sensor requirements. The complete connection specification should be verified before installation.
7. Does XUNPU provide customized M12 Male Cable Assemblies?
Yes. XUNPU can support customized cable assemblies based on requirements such as cable length, conductor arrangement, connector configuration and cable-end termination. Customer drawings and wiring specifications can be used to define the assembly.
8. When should I select a straight M12 cable?
A straight cable is appropriate when the cable can extend directly from the connector without creating a routing conflict with nearby components. It is particularly practical for equipment layouts with an unobstructed cable path behind the connection point.
9. What information is required for an M12 cable quotation?
Customers should provide the required connector configuration, cable length, conductor requirements, cable-end termination, quantity, application information and, where available, a technical drawing or wiring diagram. These details allow the required assembly configuration to be evaluated accurately.
