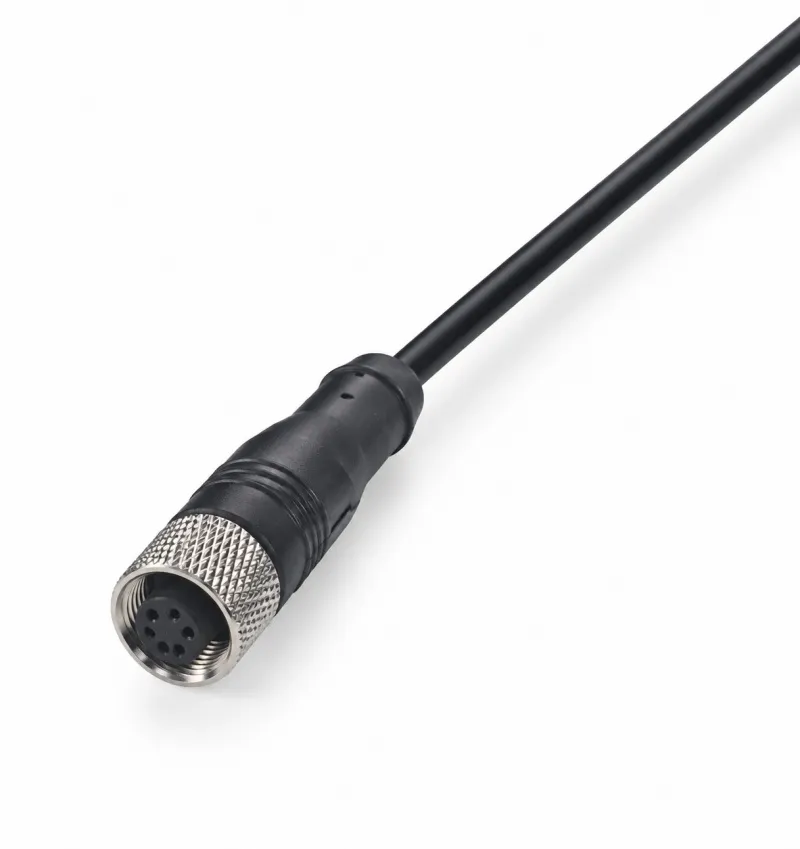

M12 Female Straight Molded Cable is an integrated cable assembly developed for industrial equipment that uses an M12 female connection interface. Unlike angled cable assemblies, the straight configuration allows the cable to extend directly from the rear of the connector, making it suitable for installations where a linear cable path is preferred. The molded construction combines the connector and cable into a finished assembly, reducing the need for separate connector and cable preparation during equipment wiring.
The M12 female interface can be used with compatible male M12 connection points in sensors, automation components, instrumentation and industrial machinery. Its straightforward physical configuration makes it suitable for equipment layouts where connector orientation and cable routing follow a relatively direct path. XUNPU can develop cable assemblies according to customer requirements, including cable length, conductor configuration, connector arrangement and cable-end termination.
For OEM equipment manufacturers, system integrators and industrial component suppliers, the M12 Female Straight Molded Cable provides a ready-to-install wiring component that can be incorporated into different equipment architectures. The finished assembly can help simplify purchasing and assembly by integrating the specified connector and cable into one product rather than requiring separate components to be prepared during final equipment production.
Connector Interface: M12 female connection interface designed for mating with a compatible M12 male interface.
Cable Configuration: Straight cable outlet extending directly from the connector body for conventional linear cable routing.
Construction: Molded cable assembly integrating the M12 female connector and cable into a finished connection component.
Cable Length: Can be configured according to equipment dimensions, installation distance and customer wiring requirements.
Conductor Configuration: Available configurations should be selected according to the electrical interface and circuit requirements of the connected equipment.
Cable Termination: The free cable end can be prepared according to the customer's equipment connection method and assembly requirements.
Application Compatibility: Suitable for compatible industrial sensors, automation equipment, instrumentation, control devices and machine wiring applications.
Exact electrical specifications, connector configuration and cable construction should be confirmed according to the specific product version, technical drawing and application requirements before production.
Straight Cable Orientation: The cable exits directly from the M12 female connector, creating a simple and predictable wiring direction for installations that favor straight cable routing.
Integrated Molded Construction: The connector and cable are combined into one finished assembly, providing a practical alternative to separately assembled connector and cable components.
Compact M12 Interface: The M12 connection format is suitable for equipment designs where a compact industrial connection interface is required.
Female Connection Design: The female connector configuration is intended for connection with compatible male M12 interfaces used on equipment and industrial components.
Organized Equipment Wiring: The defined cable exit helps establish a consistent routing direction, which can be useful when multiple cables are installed around machine components or control panels.
OEM Configurability: Cable length, conductor arrangement and cable-end treatment can be adapted to customer drawings and equipment wiring requirements.
Ready-to-Install Assembly: A completed molded cable assembly can reduce the number of individual connection components that need to be handled during equipment installation or production.
The primary function of the M12 Female Straight Molded Cable is to establish an electrical connection between compatible equipment interfaces and the cable wiring system. The M12 female connector provides the defined mating interface, while the integrated cable carries the required electrical circuits to the opposite connection point.
The straight cable structure also provides a controlled cable exit direction. This is useful when the equipment layout allows or requires the cable to continue directly away from the connector rather than changing direction immediately after the connection point.
As a pre-assembled component, the cable can also support standardized equipment wiring and simplify integration into OEM production processes. Instead of sourcing a connector and cable separately and completing the assembly at a later stage, manufacturers can specify a finished cable assembly matched to their connection and installation requirements.
For customized projects, XUNPU can work with equipment drawings, wiring requirements and assembly specifications to determine an appropriate cable configuration. This allows the finished cable assembly to be incorporated into sensors, control systems, automation modules and other industrial equipment with fewer additional wiring operations.
Industrial Sensors: The M12 female interface can be used with compatible sensor connections in industrial monitoring and machine equipment. The straight cable outlet is suitable for installations where the cable can extend directly from the sensor connection.
Factory Automation: Automation equipment often contains distributed sensors, control components and electrical interfaces. A pre-assembled M12 female cable can simplify connections between these components and the equipment wiring system.
Machine Wiring: In machinery and production equipment, the straight configuration can be used where cables are routed along a direct path from the connector toward a control cabinet, junction point or other electrical connection.
Instrumentation: Measurement and monitoring equipment can use compatible M12 connections for organized signal and electrical wiring. Cable length and termination can be selected according to the instrument layout.
Industrial Control Equipment: The assembly can be incorporated into control devices and machine modules that require a defined M12 female connection and a pre-configured cable connection.
Equipment Integration: System integrators can use customized M12 cable assemblies when connecting sensors, machine components and control modules within a larger industrial system.
OEM Products: Equipment manufacturers can specify cable length, conductor arrangement, connector configuration and termination details to create a cable assembly matched to a particular product design or production requirement.
1. What is an M12 Female Straight Molded Cable?
An M12 Female Straight Molded Cable is a finished cable assembly featuring an M12 female connection interface and a straight cable outlet. The connector and cable are integrated through a molded construction for equipment wiring and connection applications.
2. What is the difference between a straight and angled M12 female cable?
A Straight M12 Female Cable allows the cable to extend directly from the connector, while an angled version directs the cable away from the connector at an angle. The appropriate configuration depends on the available installation space and preferred cable routing path.
3. What equipment can use an M12 Female Molded Cable?
Compatible applications include industrial sensors, automation equipment, instrumentation, machine wiring, control devices and other equipment using a matching M12 connection interface.
4. Can the cable length be customized?
Yes. XUNPU can configure the cable length according to the installation distance, equipment structure and customer requirements. The required length should be confirmed during the technical specification stage.
5. Can the conductor configuration be customized?
Yes. Conductor configuration can be selected according to the electrical circuits and interface requirements of the target equipment. Specific conductor specifications should be confirmed from the customer's technical requirements.
6. Is the straight cable suitable for automation equipment?
It can be used in compatible automation applications where an M12 female connection and direct cable routing are required. Final suitability depends on the connector configuration and electrical requirements of the equipment.
7. Can XUNPU provide customized M12 Female Cable Assemblies?
Yes. XUNPU can support customized cable assemblies based on requirements such as cable length, conductor arrangement, connector configuration and cable-end termination. OEM drawings and technical specifications can be used to define the required assembly.
8. When should I choose a straight M12 cable instead of an angled cable?
A straight cable is generally appropriate when the available space allows the cable to extend directly from the connector and the equipment wiring layout does not require an immediate change in direction. An angled configuration may be considered when cable routing needs to follow a different path.
9. What information is needed for an M12 cable assembly quotation?
Useful information includes the required M12 connector configuration, cable length, conductor requirements, cable-end termination, quantity, equipment application and any available technical drawing or wiring specification. These details help determine the appropriate customized assembly.
