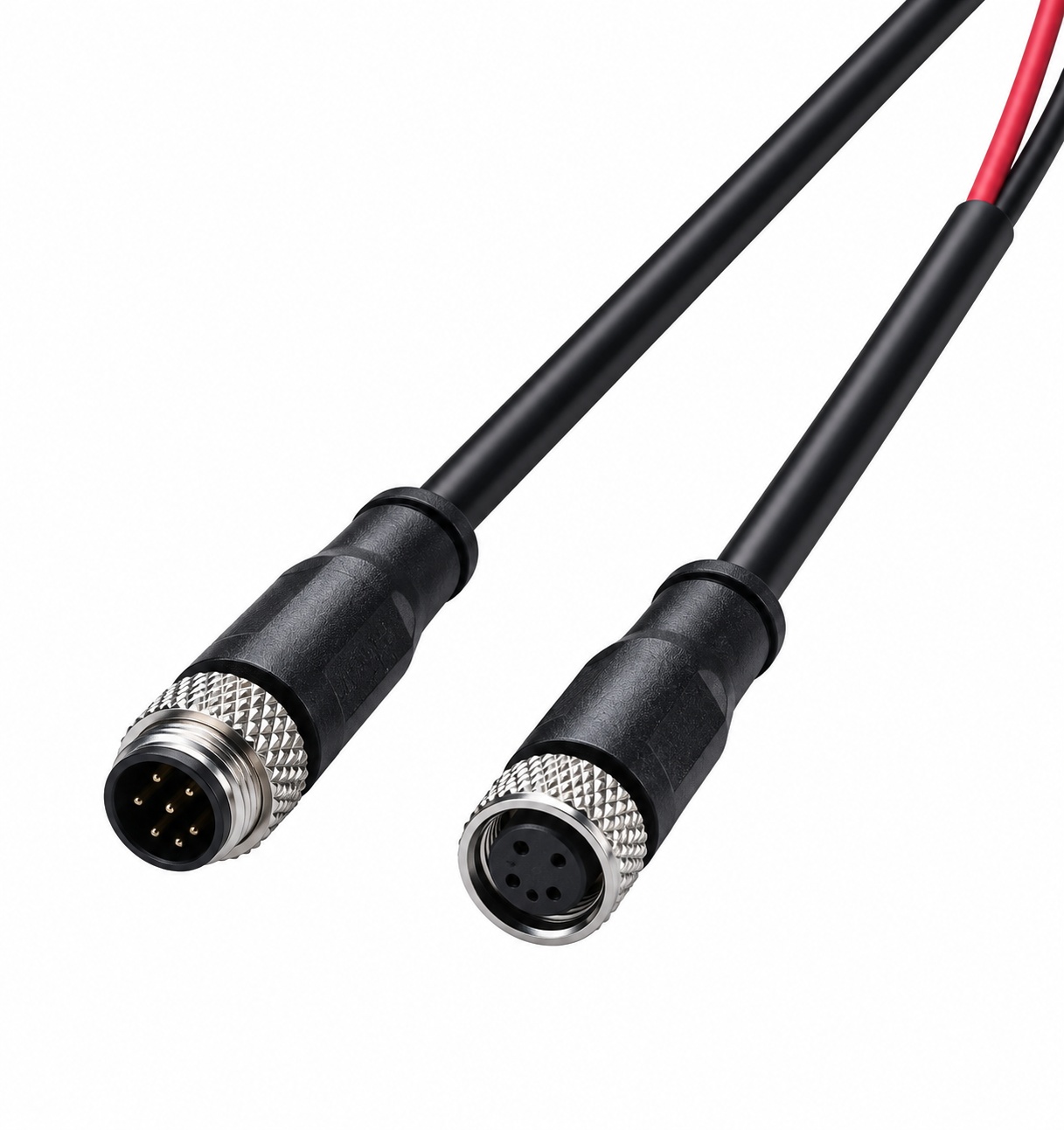

The M8 A Code Molded Cable is an industrial cable assembly developed for compact electrical connections in sensors, automation equipment, control components and machine wiring systems. It combines an M8 A-coded connector interface with a molded cable structure, creating an integrated assembly that can be installed directly into compatible equipment without requiring a separate connector and cable combination.
The A-coded M8 configuration is widely used for sensor and device connections where compact dimensions and clearly defined connector interfaces are important. Compared with loose connector components that require field assembly, a molded cable assembly offers a ready-to-install configuration and helps reduce the number of individual connection components within an equipment wiring system.
The molded connection section provides a continuous transition between the connector and cable, making the assembly suitable for organized wiring around machines, sensors, control panels and automation components. Cable length, conductor configuration, connector arrangement and termination requirements can be selected according to the electrical and mechanical requirements of the target application.
XUNPU supports customized M8 A Code Molded Cable assemblies for equipment manufacturers, system integrators and OEM projects. The product can be incorporated into factory automation, sensing systems, machine control, instrumentation and other industrial electrical applications where an M8 A-coded cable connection is required.
Product Type: M8 A Code Molded Cable.
Connector Configuration: M8 A-coded connector interface, with the specific connector gender and configuration selected according to the equipment connection requirements.
Cable Construction: Integrated molded cable assembly designed for direct equipment wiring and connection.
Cable Length: Available in customized lengths according to installation distance, equipment layout and customer requirements.
Conductor Configuration: Conductor quantity, wire specification and internal wiring arrangement can be configured according to the electrical requirements of the connected equipment.
Cable Termination: The cable end can be supplied with suitable termination options based on the customer's equipment interface and wiring method.
Connector Orientation: Connector and cable routing configuration can be selected according to available installation space and equipment structure.
Customization: Cable length, wiring configuration, connector arrangement and other assembly details can be discussed and confirmed according to the application.
Electrical ratings and detailed mechanical dimensions should be selected according to the specific M8 connector configuration and application requirements.
The M8 A Code Molded Cable uses a compact A-coded M8 connection format that is well suited to equipment where connector space is limited. Its small connector footprint allows wiring interfaces to be integrated into sensors, automation components and machine assemblies without occupying excessive installation space.
The molded construction creates an integrated cable-to-connector assembly, reducing the need for separate field wiring between the connector and cable. This configuration can make equipment assembly more straightforward and provide a cleaner appearance within structured cable layouts.
A-coded connector identification helps distinguish the connection format from other M8 coding configurations. This is particularly useful when multiple types of M8 interfaces are installed within the same automation system and the connection structure needs to be clearly defined during equipment design and assembly.
The cable assembly can be configured for different equipment layouts. Customized cable lengths help reduce unnecessary cable loops, while suitable termination arrangements can simplify the connection between field devices and control or distribution equipment.
For OEM applications, XUNPU can develop cable assembly configurations based on customer drawings, equipment interfaces and wiring requirements, allowing the M8 A Code Molded Cable to be incorporated into specific product designs.
The primary function of the M8 A Code Molded Cable is to establish an electrical connection between compatible M8 A-coded field devices and the corresponding equipment wiring interface. It provides an integrated cable path for transmitting electrical power, signals or other application-specific connections according to the selected cable configuration.
The assembly can connect sensors and other compact field devices to automation controllers, junction systems or machine wiring structures. Its pre-assembled format also helps simplify installation where a ready-made connector and cable combination is preferred.
The molded connection section supports consistent connector-to-cable integration and helps maintain a defined cable exit direction. This can be useful when equipment designers need to manage cable paths around sensors, machine frames, control cabinets or compact mechanical structures.
For customized assemblies, the cable can be prepared according to the required length and termination arrangement so that it can be integrated into the customer's existing wiring architecture with fewer additional assembly steps.
Industrial Sensors: The M8 A Code Molded Cable can be used to connect compact sensors with machine wiring systems, supporting organized signal and electrical connections in industrial environments.
Factory Automation: Automation equipment often contains numerous sensors and compact electrical devices. An M8 A-coded cable assembly can provide a defined connection interface between these field components and the wider control system.
Machine Building: Machine manufacturers can use customized M8 A Code Molded Cable assemblies to connect field devices installed around mechanical structures, helping keep equipment wiring organized and consistent.
Control Systems: The cable assembly can be incorporated into industrial control wiring where compatible M8 A-coded interfaces are used for device-level connections.
Instrumentation: Compact instrumentation equipment can benefit from the small connector format and pre-assembled cable structure when space and installation convenience are important considerations.
OEM Equipment: Equipment manufacturers can specify cable length, connector configuration and termination requirements to create an M8 A-coded cable assembly suited to their product architecture and production process.
Industrial Electrical Wiring: The assembly can be used in equipment wiring applications where compact M8 connections are integrated into machine components, electrical modules and field devices.
1. What is an M8 A Code Molded Cable?
An M8 A Code Molded Cable is a pre-assembled cable product combining an M8 A-coded connector interface with a molded cable connection. It is intended for compatible sensors, automation components and industrial equipment.
2. What does A Code mean on an M8 connector?
A Code identifies a specific M8 connector coding configuration. It helps distinguish the connector interface from other M8 coding types and supports correct mating within compatible equipment systems.
3. Can the cable length be customized?
Yes. XUNPU can provide customized cable lengths according to the installation distance, equipment structure and customer requirements.
4. Can the connector configuration be customized?
Yes. Connector gender, cable routing configuration and termination requirements can be discussed according to the target equipment and mating interface.
5. Where is an M8 A Code Molded Cable commonly used?
Typical applications include industrial sensors, factory automation, machine building, control equipment, instrumentation and OEM electrical assemblies requiring a compatible M8 A-coded connection.
6. Is this cable suitable for OEM projects?
Yes. XUNPU supports customized cable assemblies for OEM projects, including cable length, conductor configuration, connector arrangement and termination requirements based on the customer's application.
7. Can the cable be supplied with different termination options?
Termination can be configured according to the customer's equipment interface and wiring method. Specific termination details should be confirmed during product specification.
8. How should the electrical specifications be selected?
Voltage, current, conductor specification and other electrical parameters should be selected according to the connected equipment, cable construction and actual operating requirements.
9. Can XUNPU develop a cable based on a customer drawing?
XUNPU can discuss customized cable assembly requirements based on customer drawings, connector specifications, wiring diagrams and equipment interface requirements.
