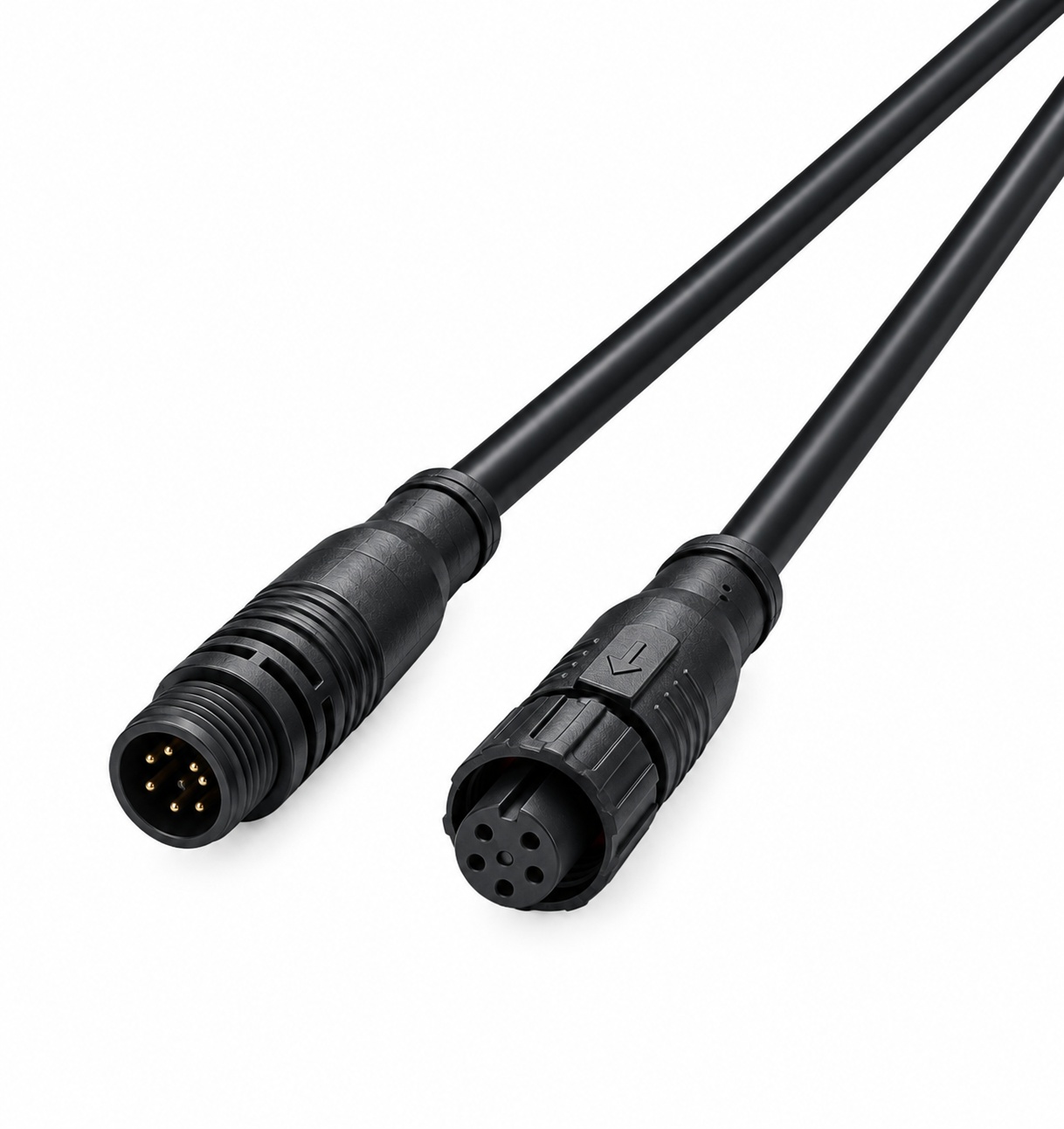

The M10 A Code Molded Cable with Plastic Connector is an integrated industrial cable assembly developed for equipment that uses an M10 A-coded connection interface. The product combines a molded cable structure with a plastic connector housing, creating a practical connection assembly for sensors, automation components, machine equipment and other industrial electrical systems.
The M10 format provides a larger connection interface than compact M8 solutions, making it suitable for equipment designs that require an M10 connection configuration. The A-coded interface helps define the intended mating arrangement, while the molded construction keeps the connector and cable integrated as one ready-to-install assembly.
The plastic connector structure offers a lightweight alternative for applications where a molded polymer connector housing is appropriate. Its integrated construction can simplify component handling during equipment assembly and reduce the need to prepare separate connector and cable components before installation.
XUNPU can configure the M10 A Code Molded Cable according to the customer's equipment interface and wiring requirements. Cable length, conductor arrangement, connector configuration and cable termination can be specified for different machine layouts, sensor installations and OEM equipment designs.
This M10 A-coded cable assembly is particularly suitable for structured industrial wiring where consistent connection interfaces, compact installation and straightforward equipment integration are important. The molded format also supports standardized cable preparation for manufacturers producing equipment in repeated production batches.
Product Type: M10 A Code Molded Cable with Plastic Connector.
Connector Format: M10 A-coded connector interface designed for compatible mating components and equipment connections.
Connector Housing: Plastic molded connector structure, with the specific material and construction selected according to the application requirements.
Cable Construction: Integrated molded cable assembly with the connector and cable combined into a finished connection unit.
Cable Length: Custom cable lengths can be supplied according to equipment dimensions, installation distance and customer specifications.
Conductor Arrangement: The number and configuration of internal conductors can be selected according to the electrical requirements of the connected device.
Cable Termination: The free cable end can be prepared with an appropriate termination configuration based on the customer's wiring method and equipment interface.
Connector Configuration: Connector gender, cable orientation and other interface details should be specified according to the mating component and installation structure.
Customization: Cable dimensions, wiring configuration and assembly requirements can be discussed for OEM and equipment-specific projects.
Electrical and mechanical ratings should be confirmed according to the selected connector configuration, cable construction and actual operating environment.
The M10 A Code Molded Cable is built around a clearly defined M10 A-coded connection format, allowing equipment designers to select a compatible interface for their specific device architecture. The A-coded configuration is especially useful in systems where different connector types or coding arrangements may be present.
Its plastic connector housing contributes to a lightweight cable assembly design while providing a defined mechanical structure around the connection interface. This makes the product suitable for equipment designs where a polymer connector housing is preferred for integration or assembly considerations.
The molded cable construction eliminates the need to separately assemble the connector and cable at the equipment installation stage. A finished assembly can be prepared in advance, helping manufacturers maintain consistent wiring configurations across multiple machines or product units.
Customized cable lengths allow the assembly to follow the actual distance between field devices and the corresponding control or wiring interface. Properly specified cable length can help maintain a cleaner installation layout and avoid unnecessary cable management work.
The product can also be adapted for OEM requirements where connector configuration, cable construction and termination details need to match an existing machine or electrical system. XUNPU can discuss these parameters before production to create a configuration suited to the intended installation.
The primary function of the M10 A Code Molded Cable is to provide an integrated electrical connection between compatible M10 A-coded devices and the corresponding equipment wiring system. Depending on the selected cable configuration, the assembly can be used for electrical power, signal transmission or device-level connections.
The molded assembly provides a prepared connection between the connector interface and cable, allowing manufacturers to install the complete cable assembly rather than separately fitting and wiring individual connector components during equipment production.
The A-coded interface helps establish the intended connector arrangement within a larger wiring architecture. This can be valuable in machines containing multiple device connections where connector identification and mating compatibility need to be considered during assembly.
The cable assembly also supports structured wiring between field devices and control equipment. By specifying the cable length and termination according to the installation layout, manufacturers can integrate the assembly into their equipment with fewer additional wiring preparation steps.
Industrial Sensor Connections: The M10 A Code Molded Cable can be integrated with compatible industrial sensors where an M10 A-coded interface is specified. Its pre-assembled structure provides a practical connection between the field sensor and equipment wiring.
Factory Automation Equipment: Automation machinery contains numerous field devices that need defined electrical interfaces. The M10 A-coded cable assembly can be incorporated into machine wiring for compatible automation components and control devices.
Machine Manufacturing: Machine builders can use customized M10 cable assemblies to connect components installed at different positions on mechanical equipment. Specified cable lengths can be prepared according to the machine's actual wiring layout.
Industrial Control Systems: The cable can be used as part of device-level wiring between compatible field components and industrial control equipment, provided that the electrical and connector specifications match the application.
Instrumentation Equipment: Instrumentation products requiring a compatible M10 A-coded connection can use the molded cable format to simplify device integration and maintain an organized connection structure.
Equipment OEM Production: OEM manufacturers can specify the connector configuration, cable length and wiring arrangement in advance, allowing finished M10 cable assemblies to be incorporated directly into their production process.
Electrical Equipment Wiring: The assembly can be used for compatible electrical equipment that requires an M10 A-coded cable connection, particularly where a molded cable structure is preferred over separate field-assembled components.
1. What is an M10 A Code Molded Cable?
It is a finished cable assembly combining an M10 A-coded connector interface with a molded cable structure and plastic connector housing. It is designed for compatible industrial devices, sensors and equipment wiring applications.
2. What is the advantage of a plastic connector housing?
A plastic housing can provide a lightweight connector structure and may be suitable for equipment designs where a polymer connector construction is preferred. The exact material selection should be matched to the application requirements.
3. What does A Code mean for an M10 connector?
A Code refers to a defined connector coding configuration. It helps identify the intended mating arrangement and distinguish the interface from other coding configurations used within connector systems.
4. Can XUNPU customize the cable length?
Yes. XUNPU can supply different cable lengths according to the customer's equipment dimensions, installation distance and wiring layout.
5. Can the M10 A Code cable be used for sensors?
Yes. It can be used with compatible sensors and sensing equipment that specify an M10 A-coded connection. The connector and electrical specifications should be confirmed before selection.
6. Is this M10 cable suitable for OEM applications?
Yes. The cable assembly can be configured for OEM applications with customized cable length, conductor arrangement, connector configuration and termination requirements.
7. Can the cable termination be customized?
Yes. The free cable end can be prepared according to the customer's equipment interface and wiring method. Specific termination requirements should be confirmed when ordering.
8. Can this product be used in automation machinery?
Yes. The M10 A Code Molded Cable can be incorporated into compatible automation machinery, machine control systems, sensors and industrial equipment where the specified M10 A-coded interface is required.
9. Can XUNPU manufacture the cable according to a drawing?
Yes. Customer drawings, wiring diagrams, connector specifications and equipment interface requirements can be used as references when discussing a customized cable assembly.
