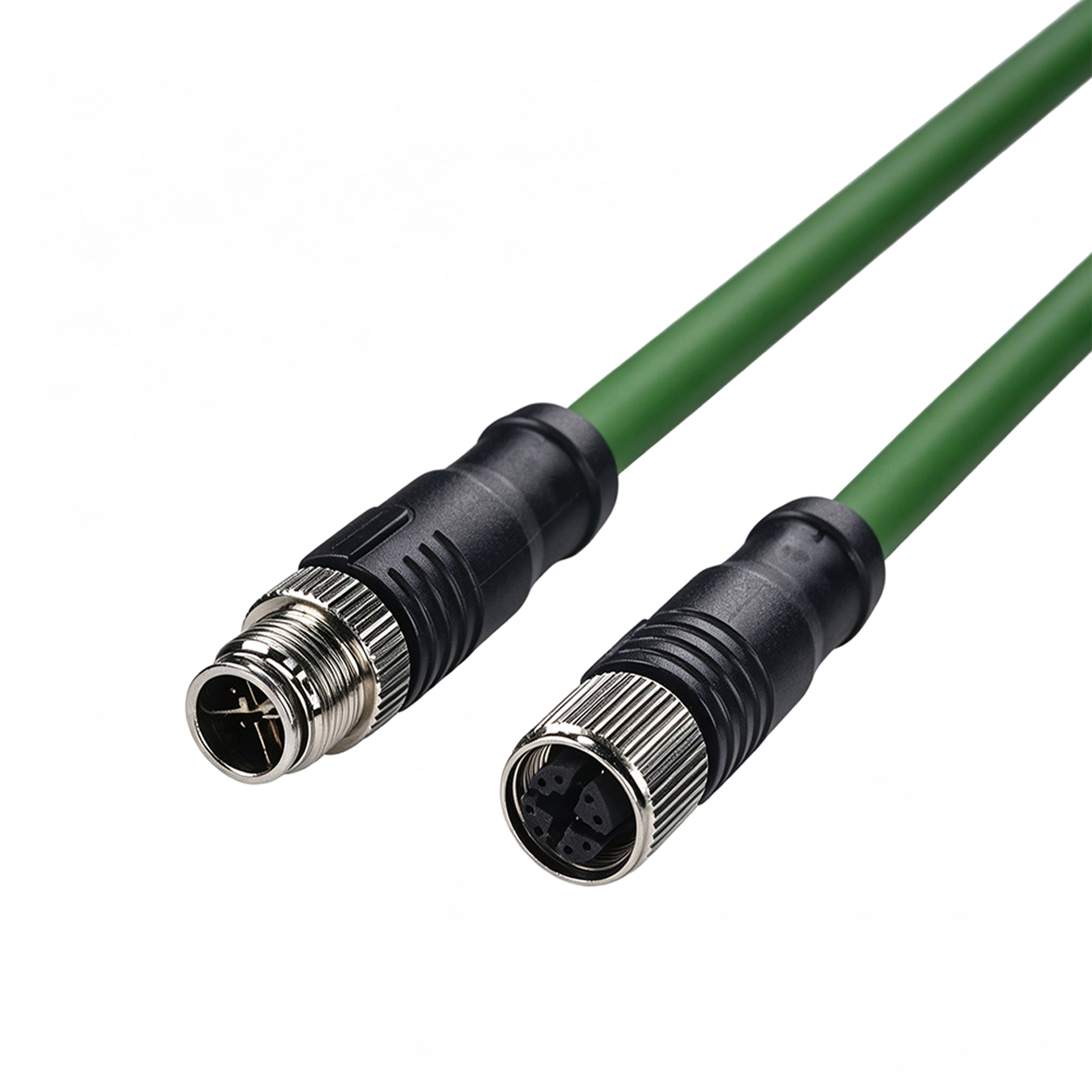

The M12 X-Code Shielded Molded Cable is a specialized industrial cable assembly developed for equipment requiring an X-coded M12 connection together with a shielded cable structure. It combines the connector and cable into an integrated molded assembly, creating a prepared connection component for high-speed data communication, industrial networking and automation equipment.
The X-Code interface is designed for applications where the M12 connection needs to support high-speed data communication. Its coding arrangement distinguishes the interface from other M12 configurations and helps establish the intended connection architecture between compatible networking equipment, communication devices and machine components.
Shielding is an important part of this product's construction. The shielded cable structure is intended to help reduce the influence of electromagnetic interference on electrical data transmission when the cable is installed in equipment containing motors, drives, switching devices or other potential sources of electrical noise. Actual shielding performance depends on the complete cable and system design.
The molded construction provides a finished cable assembly rather than a loose connector and separate cable. This makes the product suitable for equipment manufacturers that want a ready-to-integrate connection component for industrial Ethernet networks, machine communication systems and other compatible high-speed data applications.
XUNPU can support application-specific configurations based on customer requirements. Cable length, connector arrangement, conductor construction, cable-end termination and other applicable assembly details can be discussed according to the network architecture, installation environment and equipment design.
Product Type: M12 X-Code Shielded Molded Cable.
Connector Interface: M12 X-Code industrial connection interface.
Connector Configuration: X-coded interface intended for compatible high-speed data and networking equipment. The exact mating configuration should be confirmed before selection.
Cable Construction: Integrated molded cable assembly combining the M12 X-Code connector and cable into one finished component.
Shielding: Shielded cable construction designed to support electromagnetic interference management in suitable industrial communication installations. The complete grounding and shielding system should be evaluated as part of the equipment design.
Cable Length: Can be specified according to the distance between network devices, machine components and connection points.
Conductor Configuration: The internal conductor arrangement is selected according to the required cable design and compatible communication application.
Cable End: The opposite end can be prepared according to the customer's required termination or equipment-side connection method.
Data Application: Suitable for compatible high-speed industrial communication and networking applications where the M12 X-Code interface is specified.
Electrical Performance: Transmission performance, impedance, frequency characteristics and other electrical parameters should be confirmed according to the selected cable construction and communication requirements.
Customization: Cable length, connector configuration, cable-end processing and other applicable assembly specifications can be developed for suitable OEM projects.
The most distinctive feature of this cable assembly is its combination of an M12 X-Code interface with shielded cable construction. This configuration is intended for industrial communication systems where high-speed data connectivity and controlled electromagnetic conditions are important parts of the equipment wiring design.
The X-Code configuration provides a dedicated M12 connection format for compatible high-speed networking equipment. By using the appropriate coded interface, equipment designers can establish a defined connection between industrial network components while maintaining a compact connector footprint.
The shielded construction adds an additional consideration for installations where electromagnetic interference may affect sensitive communication circuits. When properly implemented together with suitable connectors, grounding and equipment design, the shielding system can help control unwanted electrical interference around the data transmission path.
The molded cable format provides an integrated connection rather than requiring the customer to assemble the M12 connector onto a separate network cable. This can make the finished assembly easier to handle during machine construction and more consistent across repeated equipment installations.
Cable length can be adapted to the actual network layout. This is useful when communication devices are positioned at different distances inside a machine, control enclosure or production system and a standard cable length does not match the intended routing path.
The assembly can also be developed for OEM equipment where connector and cable requirements need to remain consistent between production units. Customer drawings and technical requirements can be used to define the applicable cable and termination configuration.
The primary function of the M12 X-Code Shielded Molded Cable is to provide a high-speed data connection between compatible industrial networking interfaces. The M12 X-Code connector establishes the physical connection while the shielded cable provides the transmission path between network devices or machine components.
The shielded cable structure is intended to help manage electromagnetic interference around the communication path. This can be relevant in industrial equipment where data cables are installed near motors, variable-speed drives, switching components or other equipment that can generate electrical noise.
The assembly can function as a network connection between compatible industrial devices, such as communication modules, network interfaces and automation equipment. The specific communication protocol and transmission performance depend on the complete network design and selected cable specification.
The molded structure also serves as a ready-made wiring component for machine builders. Instead of terminating an individual cable during equipment assembly, the customer can integrate a pre-configured cable assembly into the network wiring according to the equipment's connection plan.
For system integration projects, the cable can help connect distributed communication points across machinery and industrial equipment. Appropriate cable length and routing can be selected to suit the physical network arrangement while avoiding unnecessary cable runs.
Industrial Ethernet Networks: Compatible industrial Ethernet equipment can use an M12 X-Code cable for high-speed network connections where the corresponding M12 interface is specified. The shielded construction is suited to network installations where electromagnetic interference needs to be considered.
Factory Automation Systems: Automated production equipment can incorporate X-coded M12 cable assemblies between networked machine components, communication modules and control equipment. The molded format provides a prepared connection component for machine wiring.
Industrial Network Devices: Network interfaces and compatible communication devices can be interconnected using the cable where an M12 X-Code connection is part of the system architecture. The cable configuration should correspond with the transmission requirements of the network.
Robotic Equipment: Robots and automated machine assemblies can require compact network connections between controllers, communication modules and distributed equipment. An M12 X-Code cable can be considered where the equipment uses a compatible interface and shielded data transmission is required.
Machine Vision Systems: Industrial vision equipment can involve high-speed communication between cameras, processing units and network infrastructure. Compatible M12 X-Code shielded cable assemblies can be integrated where the system design calls for this connection format.
Control Cabinets and Machine Wiring: Network connections within industrial machines and control systems can use the cable to link compatible communication components. The selected cable length can be matched to the internal routing arrangement of the equipment.
OEM Industrial Equipment: Equipment manufacturers can specify the M12 X-Code connector, shielded cable construction, cable length and termination requirements during product development, allowing the finished assembly to become part of a repeatable network wiring design.
1. What is an M12 X-Code Shielded Molded Cable?
It is an integrated cable assembly featuring an M12 X-Code connector and shielded cable construction. It is intended for compatible high-speed industrial communication and networking applications.
2. What does X-Code mean on an M12 connector?
X-Code identifies a specific M12 connector coding arrangement associated with compatible high-speed data connection applications. The mating interface and system requirements should be verified before installation.
3. Why is the cable shielded?
The shielding is intended to help manage electromagnetic interference around the data transmission path. Its effectiveness depends on the complete cable, connector, grounding and equipment installation design.
4. Is this cable suitable for industrial Ethernet?
It can be used in compatible industrial Ethernet applications where the equipment specifies an M12 X-Code interface and the selected cable construction meets the required transmission characteristics.
5. Can the M12 X-Code cable length be customized?
Yes. XUNPU can discuss cable length according to the distance between network devices, equipment layout and cable routing requirements for the intended application.
6. Can both connector ends be configured according to the application?
Connector arrangements can be discussed for customized projects. The required connector type, coding, mating interface and cable-end termination should be specified according to the network architecture.
7. Can this cable be used around motors and drives?
It may be considered for suitable industrial installations where electromagnetic interference is a design concern. The complete cable routing, shielding and grounding arrangement should be evaluated for the actual equipment environment.
8. Does XUNPU support customized M12 X-Code cable assemblies?
Yes. XUNPU can support suitable OEM requirements involving cable length, connector configuration, cable-end processing and other applicable assembly specifications.
9. What information is needed for a customized M12 X-Code cable?
Customers should provide the required connector configuration, mating interface, cable length, communication application, cable construction requirements, termination method and available technical drawings. Network and equipment specifications are also useful for confirming the appropriate assembly.
