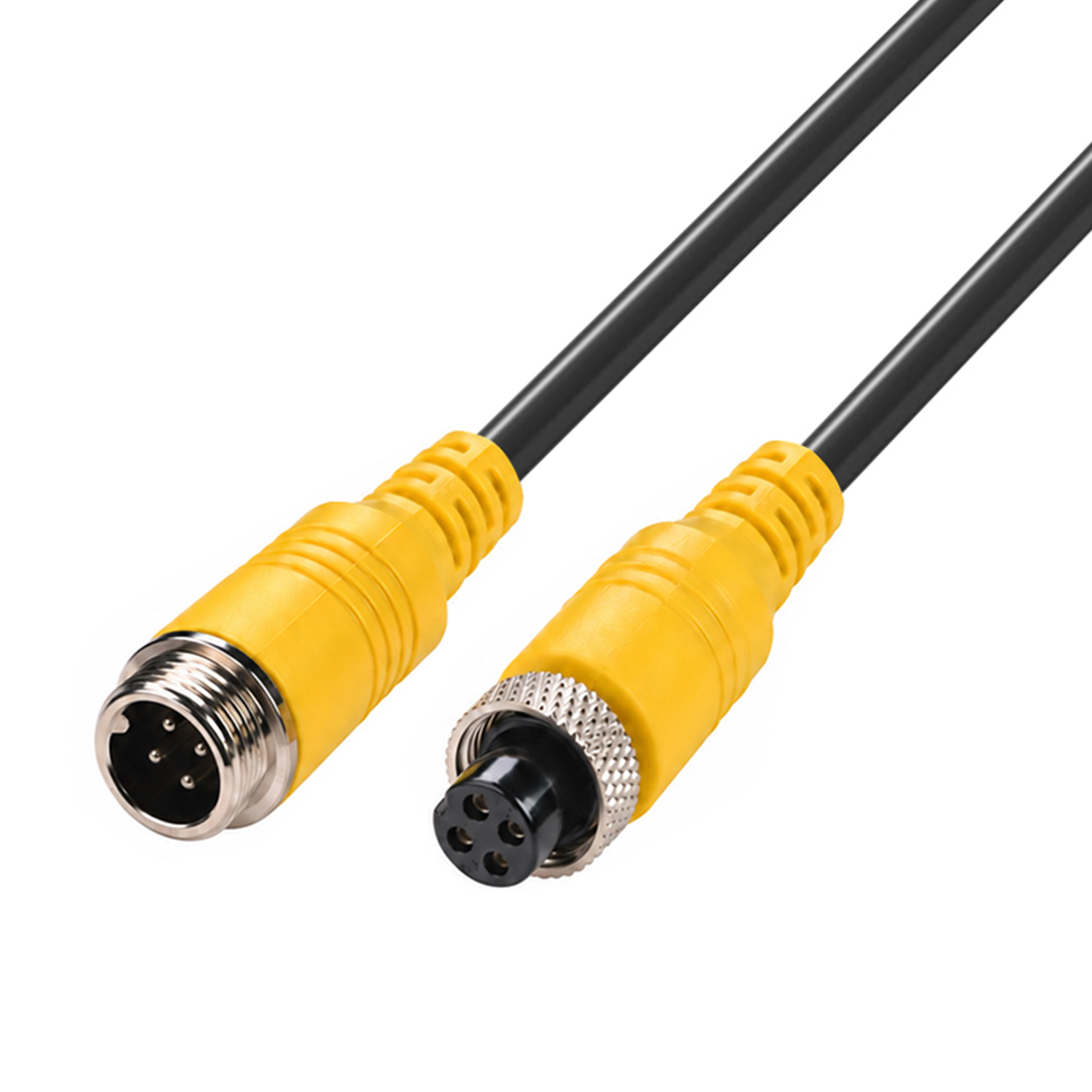

The M12 Molded Cable is a pre-assembled industrial connection product that combines an M12 connector interface with an integrated molded cable. It is developed for equipment manufacturers and system integrators that need a prepared cable assembly rather than a separate connector and loose cable. The finished structure can be incorporated directly into compatible equipment wiring layouts.
The M12 interface is widely used in industrial equipment where compact and defined device connections are required. Depending on the selected connector configuration, the cable can be integrated with sensors, automation components, instrumentation, control modules and machine assemblies. The exact connector coding and electrical configuration should be matched with the target equipment before selection.
The molded construction forms the connector and cable into a prepared assembly, giving equipment manufacturers a more convenient component for production and installation. Instead of preparing the connector-to-cable connection separately, the customer can work with a finished cable assembly configured around the intended equipment architecture.
Depending on the conductor configuration, an M12 cable assembly can be used for signal transmission, control circuits, power connections or other electrical functions supported by the selected cable design. Electrical ratings and conductor specifications should always be confirmed against the actual application and connected equipment.
For customized projects, XUNPU can work with customers on cable length, conductor arrangement, connector configuration and cable-end processing. This makes the M12 Molded Cable suitable for equipment manufacturers looking to integrate a consistent connection component into their own products and production processes.
Product Type: M12 Molded Cable.
Connector Interface: M12 industrial connector interface with the specific connector configuration selected according to the application.
Cable Construction: Integrated molded cable assembly combining the M12 connector and cable into a finished connection unit.
Connector Configuration: Coding, contact arrangement and connector-side configuration should be specified according to the required mating equipment.
Mating Interface: Designed for use with a corresponding compatible M12 connector. The exact mating configuration should be verified according to the equipment interface.
Cable Length: Can be selected according to the physical distance between connection points and the customer's equipment layout.
Conductor Arrangement: Wire quantity, conductor size and internal circuit arrangement can be configured according to the electrical requirements of the connected equipment.
Cable End: The non-connector end can be prepared according to the customer's required termination or connection method.
Cable Routing: Cable routing and exit direction can be considered according to equipment structure, available clearance and installation position.
Electrical Characteristics: Voltage, current, conductor construction and other electrical parameters depend on the final cable specification and should be confirmed for the intended application.
Customization: Cable dimensions, connector arrangement, conductor configuration and termination requirements can be developed for suitable OEM applications.
The M12 Molded Cable combines a standardized M12 connection interface with an integrated cable structure. This creates a finished component that can be handled and installed as a complete assembly, which is particularly useful for manufacturers producing equipment with repeatable wiring requirements.
Its M12 connector format provides a practical interface for compatible industrial devices and machine components. Depending on the selected configuration, customers can specify the connector coding and contact arrangement required to correspond with their particular equipment architecture.
The molded connection structure is another important characteristic. By integrating the connector and cable, the assembly arrives ready for equipment-side installation instead of requiring separate cable preparation and connector assembly during the customer's production process.
The product can be adapted to different wiring distances through customized cable lengths. This allows equipment manufacturers to select a cable configuration that follows the intended routing path without relying exclusively on a standard cable size.
The assembly is also suitable for different electrical functions when the appropriate cable construction is selected. Signal, control and power applications can be considered according to the conductor specification, connector configuration and electrical requirements of the final equipment.
For OEM production, the ability to define cable and connector details can help create a consistent wiring component for repeated equipment models. The final specifications can be established around the customer's drawings, connection architecture and manufacturing process.
The main function of the M12 Molded Cable is to establish an electrical connection between compatible M12 equipment interfaces and the wider wiring system. The cable provides the physical electrical path between the connected device and another connection point within the machine or control system.
In sensor systems, the assembly can connect compatible sensing equipment with control or monitoring hardware. The conductor arrangement can be selected according to the sensor interface and the electrical circuit required by the application.
For automation equipment, the cable can provide a connection between field components, control modules and machine wiring. Its pre-assembled structure allows equipment builders to integrate a defined cable component into the wiring process instead of preparing individual connector assemblies on site.
The assembly can also extend a connection from a machine component to a remote electrical interface. Cable length can be selected according to the physical arrangement of the equipment, helping the wiring follow the required route between connection points.
In OEM applications, the M12 Molded Cable can function as a repeatable equipment component. Once the required connector, cable and termination configuration has been established, the assembly can be incorporated into the standard production structure of the customer's equipment.
Industrial Sensor Systems: Compatible sensors can use an M12 cable assembly to connect sensing devices with machine controls, monitoring units or other equipment interfaces. The connector configuration should correspond to the sensor and mating device specifications.
Factory Automation: Automated production equipment can integrate M12 molded cables between field devices, control components and machine wiring. The finished assembly can simplify the handling of repeated connection components during equipment manufacturing.
Machine Control Equipment: Machine builders can use customized M12 cable assemblies to connect individual machine modules with control cabinets or other electrical interfaces. Cable length and conductor configuration can be selected according to the equipment layout.
Industrial Instrumentation: Measurement and monitoring instruments can incorporate compatible M12 connections where a prepared cable assembly is required. The cable can be configured around the instrument's electrical interface and installation arrangement.
Control Modules: Industrial control modules and electronic devices can use the M12 molded cable as an equipment-level connection component when the corresponding M12 interface is part of the system architecture.
Machine Subassemblies: Individual machine units can be interconnected using customized M12 cable assemblies. Selecting the appropriate cable length helps accommodate the physical distance and routing requirements between different components.
OEM Equipment Manufacturing: Equipment manufacturers can define the required M12 connector configuration, cable dimensions, conductor arrangement and termination during product development, allowing the finished assembly to become part of a standardized production specification.
1. What is an M12 Molded Cable?
An M12 Molded Cable is a pre-assembled cable product that combines an M12 connector interface with an integrated molded cable. It is designed for compatible industrial sensors, automation equipment, control devices and machine wiring applications.
2. What equipment can use an M12 Molded Cable?
It can be considered for compatible sensors, automation components, industrial instruments, control modules and machine equipment that use the corresponding M12 connection interface.
3. Can different M12 connector configurations be supplied?
Connector coding, contact arrangement and other interface details can be discussed according to the customer's equipment requirements. The selected configuration should match the intended mating component.
4. Can the cable length be customized?
Yes. Cable length can be specified according to the equipment layout, connection distance and intended cable routing path.
5. Can the M12 cable be used for signal connections?
Yes, where the selected connector and cable construction meet the requirements of the signal circuit. The conductor specification and electrical parameters should be confirmed for the particular application.
6. Can the cable be configured for control or power applications?
Potentially, depending on the selected connector, conductor construction and electrical ratings. The final configuration should be designed around the voltage, current and circuit requirements of the equipment.
7. What is the benefit of the molded construction?
The molded structure integrates the connector and cable into one prepared assembly. This can simplify component handling, reduce separate assembly steps and provide a consistent connection component for equipment production.
8. Can XUNPU customize M12 cable assemblies?
Yes. XUNPU can support customized cable assemblies according to suitable OEM requirements, including cable length, conductor arrangement, connector configuration and cable-end termination.
9. What information should be provided for an M12 cable quotation?
Useful information includes the M12 connector configuration, mating interface, cable length, conductor requirements, termination method, wiring diagram, equipment drawings and intended application. These details help determine the appropriate assembly configuration.
