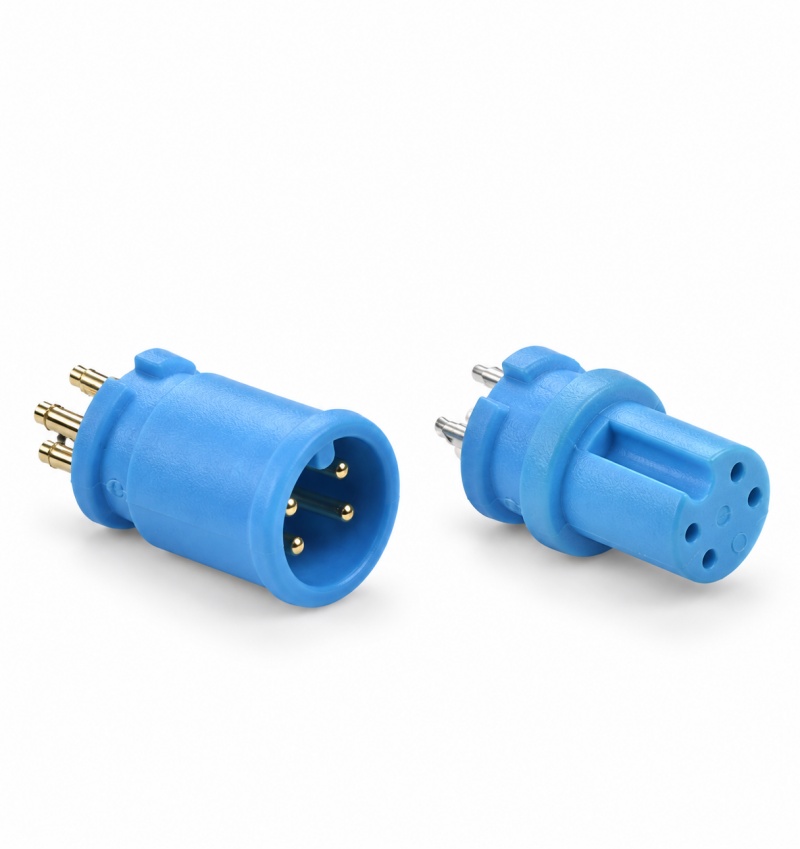

The M7 4-Pin Male & Female Connector is a compact electrical connection component intended for compatible automotive, motorcycle and vehicle wiring applications. With four connection positions and corresponding male and female interfaces, it creates a structured mating point between two compatible sides of an electrical assembly. The configuration is suitable for wiring arrangements that require a multi-position connection rather than a simple two-wire interface.
The connector is specified with a blue housing, giving it a distinctive appearance within a vehicle wiring system. In harnesses containing multiple connection points, a clearly identifiable housing can make the corresponding interface easier to locate during assembly, wiring inspection and maintenance. The blue version can therefore contribute to practical connector identification while remaining part of an organized electrical assembly.
The four-pin structure allows the connector to accommodate compatible circuits requiring four electrical positions within a single connection interface. Depending on the application design, the connector can be positioned between a wiring branch and an electrical component, between separate harness sections, or within a dedicated accessory cable. The detachable male-to-female arrangement also allows the connected sections to be separated when the application requires component access or cable replacement.
As a member of the BM Series Automotive & Motorcycle Connectors range, the M7 4-Pin Male & Female Connector is suitable for selected vehicle-related connection projects. XUNPU can integrate the connector into customized cable and wiring assemblies according to customer drawings, cable requirements, connection layouts and specific OEM project requirements.
Product type: M7 4-pin male and female electrical connector.
Interface size: M7.
Contact configuration: 4-pin.
Mating configuration: Corresponding male and female connector interfaces.
Housing color: Blue.
Connection format: Detachable male-to-female mating connection.
Electrical configuration: Designed for compatible four-position circuit requirements.
Product category: BM Series Automotive & Motorcycle Connectors.
Assembly compatibility: Suitable for compatible wires, cables and customized vehicle wiring assemblies.
OEM integration: Can be incorporated into application-specific cable assemblies according to customer requirements.
Application-specific electrical ratings: Voltage, current, cable size and other detailed parameters should be confirmed according to the exact connector configuration and intended application.
Four-Pin Connection Structure: The four-position interface accommodates compatible circuits that require four electrical connection points, providing a more versatile connection format for selected vehicle wiring arrangements.
M7 Compact Interface: The M7 configuration offers a compact connection format for applications where a defined multi-pin interface needs to be incorporated into a relatively space-conscious wiring structure.
Paired Male & Female Interfaces: The matching connector structure creates a dedicated mating relationship between the two sides of the electrical assembly, allowing the connection to be separated without dismantling the entire wiring section.
Blue Housing Identification: The blue housing makes the connector visually distinguishable within a harness. This can assist operators when tracing wiring branches, identifying connection points or carrying out assembly and service procedures.
Suitable for Vehicle Wiring: The connector is included in XUNPU's BM Series and is intended for compatible automotive, motorcycle and vehicle-related electrical connection applications.
Modular Harness Integration: The connector can divide selected wiring sections into separate modules, helping manufacturers organize component leads, accessory branches and harness connections according to the overall vehicle architecture.
Accessible Connection Design: A dedicated mating interface provides an identifiable point where a component or cable branch can be disconnected when installation, replacement or servicing requires access to the relevant section.
OEM Cable Assembly Compatibility: XUNPU can incorporate the M7 connector into customized cable assemblies based on application drawings, wiring layouts, cable specifications and customer-defined connection requirements.
The M7 4-Pin Male & Female Connector creates a dedicated four-position electrical connection between compatible wiring sections or electrical components. Its four-pin arrangement enables several circuit positions to be brought together through one connector interface, helping keep the relevant wiring organized within the larger electrical system.
The mating structure also provides a practical way to separate connected components from their associated wiring. When a compatible component or accessory needs to be installed, replaced or inspected, the connector can serve as the designated access point between the component-side connection and the harness-side connection.
For wiring harness construction, the connector can function as an intermediate connection point between different cable sections. This makes it possible to organize a harness according to individual components, functional branches or installation zones instead of treating the complete wiring system as one continuous assembly.
The blue housing can also support visual identification within a complex wiring environment. When different connection points are positioned close together, the housing color can provide an additional reference for technicians and assembly personnel when locating the intended connector.
When integrated into customized cable assemblies, the connector becomes part of a complete wiring interface tailored to the customer's system architecture. XUNPU can develop the related cable configuration around the required connector arrangement and application-specific wiring requirements.
Motorcycle Wiring Harnesses: The M7 4-pin connector can be incorporated into compatible motorcycle harnesses where four electrical positions are required between a wiring branch and a corresponding component or subsystem.
Motorcycle Accessories: Compatible motorcycle accessories can use the connector as part of their wiring interface, providing a defined connection point between the accessory cable and the vehicle-side harness.
Automotive Electrical Assemblies: The connector can be integrated into selected automotive wiring structures where the required electrical and mechanical interface corresponds with the M7 4-pin configuration.
Vehicle Component Connections: Electrical components with compatible four-position connection requirements can be linked to their cable assemblies through the matching male and female connector arrangement.
Customized Vehicle Harnesses: Wiring harness manufacturers can incorporate the connector into application-specific harnesses according to cable routing, connector placement and the overall electrical architecture of the vehicle.
Aftermarket Vehicle Wiring: Replacement cables and compatible vehicle accessories can utilize the connector when the original or target system specifies an M7 four-pin interface and the complete configuration is mechanically and electrically suitable.
Motorcycle Component Manufacturing: Component manufacturers can integrate the connector into dedicated cable assemblies used with compatible motorcycle electrical products and accessory systems.
Automotive Accessory Cables: Manufacturers of vehicle accessories can incorporate the M7 4-pin interface into finished cables where a detachable connection is needed between the accessory and the associated wiring system.
Prototype Wiring Development: During the development of vehicle electrical assemblies, the connector can be incorporated into prototype harnesses to create defined connection points between selected components and wiring branches.
1. What is the M7 4-Pin Male & Female Connector?
It is a four-position electrical connector with matching male and female interfaces, designed for compatible automotive, motorcycle and vehicle wiring applications.
2. How many pins does the M7 connector have?
The specified connector has four pins and is intended for compatible electrical systems requiring a four-position connection interface.
3. What color is this M7 connector?
The specified version has a blue housing. The color provides a visually distinctive reference that can assist identification within a wiring assembly.
4. Does the product include both male and female interfaces?
The product is defined as an M7 4-pin male and female connector configuration, providing corresponding interfaces for a compatible detachable connection.
5. Can this connector be used for motorcycle wiring?
Yes. It belongs to the BM Series Automotive & Motorcycle Connectors category and can be incorporated into compatible motorcycle harnesses, accessory cables and electrical component connections.
6. Can the M7 4-pin connector be used in automotive wiring?
It can be used in compatible automotive applications where the M7 four-pin interface meets the required mechanical and electrical specifications of the wiring system.
7. Can XUNPU provide this connector as part of a cable assembly?
Yes. XUNPU can integrate the connector into customized cable and wiring assemblies according to customer drawings, cable specifications, connection layouts and application requirements.
8. Does the blue housing indicate a particular electrical rating?
No specific electrical rating should be inferred from the housing color. Blue is the specified housing color, while voltage, current and other electrical parameters should be confirmed from the exact product configuration.
9. Does this product have a specified waterproof rating?
No specific IP protection rating has been provided for this product. If environmental protection is required, the exact connector configuration and complete cable assembly should be evaluated according to the intended operating conditions.
10. Can XUNPU customize the M7 connector assembly for OEM applications?
Yes. XUNPU can support customized wiring and cable assembly projects based on customer drawings, cable requirements, connector configurations, wiring layouts and OEM application specifications.
