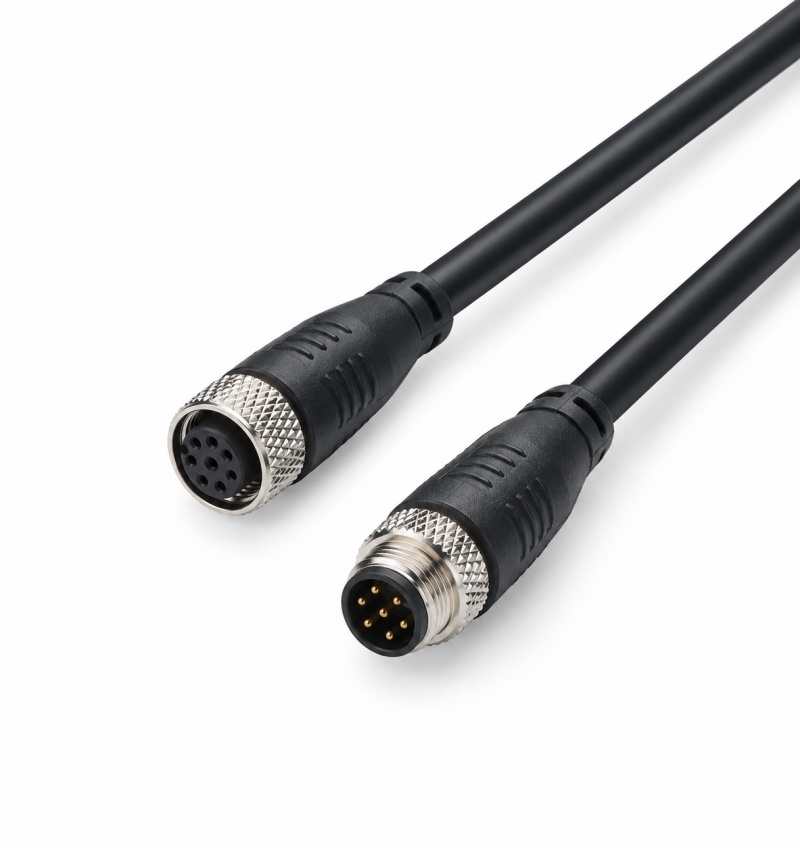

The M12 9-Pin Metal Threaded Molded Extension Cable is a purpose-built cable assembly for extending compatible 9-pin M12 connections while maintaining a mechanically secured interface. The assembly uses one M12 9-pin male connector and one M12 9-pin female connector, allowing it to be installed between compatible equipment interfaces when additional cable length is required. Both connector-to-cable junctions are formed through an integrated molding process, creating a finished cable assembly rather than a loose connector and separate cable combination.
The M12 connection ends feature metal threaded locking structures that can be tightened onto matching interfaces. This fastening method helps keep the connection firmly engaged in equipment subjected to movement, vibration or routine mechanical disturbance. Compared with an unsecured plug connection, the threaded interface provides a defined locking action that is useful for industrial installations where accidental loosening needs to be minimized.
With IP67 protection, the cable assembly is designed for suitable applications where resistance to dust and temporary water exposure is required. The molded construction also provides an integrated transition between the cable and connector, supporting cleaner equipment wiring and reducing the need for additional connection components. XUNPU can adapt cable length and conductor specifications to customer drawings, equipment interfaces and application requirements.
Product type: M12 9-pin male-to-female extension cable assembly.
Connector configuration: One M12 9-pin male connector and one M12 9-pin female connector.
Connector construction: Metal threaded locking connector with a knurled exterior structure for secure tightening and handling.
Cable construction: Connector and cable are integrated through molded overmolding construction.
Protection rating: IP67 for suitable installed applications.
Connection format: Male-to-female extension configuration for compatible M12 9-pin interfaces.
Cable length: Customizable according to equipment layout and customer requirements.
Conductor specifications: Cable core specifications can be configured according to the required electrical connection and customer drawings.
Customization: Cable length, conductor configuration and other assembly requirements can be developed according to OEM application needs.
9-Pin M12 Extension Design: The nine-pin male-to-female configuration allows compatible M12 connections to be extended without changing the basic interface arrangement of the equipment.
Metal Threaded Locking: The metal threaded connector structure provides a positive mechanical fastening method. The threaded connection can be tightened against the mating interface to help maintain connection stability during equipment operation.
Integrated Molded Construction: The cable and connector junctions are injection molded as an integrated assembly. This creates a clean transition between the connector and cable while supporting consistent assembly quality.
IP67 Protection: The specified IP67 configuration provides protection against dust ingress and water exposure within the applicable conditions of the rating, making the assembly suitable for compatible industrial environments.
Vibration-Resistant Connection Structure: The threaded locking mechanism helps reduce the possibility of accidental connector loosening caused by vibration or mechanical movement when correctly mated and tightened.
Application-Specific Configuration: XUNPU can adjust cable length and conductor specifications to accommodate different equipment layouts, connection distances and OEM wiring requirements.
The primary function of this cable assembly is to extend an existing compatible M12 9-pin connection. It creates additional distance between two connection points while retaining the M12 interface at both ends.
The threaded connectors provide mechanical retention at both ends of the extension. Once the male and female connectors are correctly matched with compatible equipment interfaces and tightened, the connection is better suited to installations where ordinary vibration or movement may occur.
The molded cable structure provides a ready-to-install connection component that can simplify equipment wiring. Instead of separately sourcing connectors and cable and assembling them during installation, the finished extension cable can be incorporated directly into the relevant wiring layout.
The assembly can also help reposition connection points when sensors, modules or other electrical components are located farther away from the original equipment interface. Custom cable lengths allow the extension to be matched more closely to the actual installation distance.
Industrial Automation: The cable can be used to extend compatible M12 connections between sensors, control components and automation equipment. Its threaded locking structure is suitable for machinery where wiring may be exposed to routine vibration.
Industrial Sensors: When an M12-connected sensor needs to be positioned farther from its control or interface point, the extension cable can provide additional connection length while retaining the compatible 9-pin interface.
Energy Storage Equipment: The assembly can be incorporated into suitable signal and control wiring arrangements within energy storage equipment where protected M12 connections and organized cable routing are required.
Electric Mobility Equipment: The cable is suitable for compatible signal connection requirements in electric mobility equipment where M12 interfaces are used and additional cable reach is necessary.
Machine Wiring and Control Systems: Equipment designers can use the extension assembly to bridge the distance between M12 connection points while maintaining a standardized circular connector interface.
Outdoor Industrial Installations: The IP67 configuration can be considered for compatible outdoor or moisture-exposed industrial installations where the complete connection system is designed and installed within the applicable protection conditions.
OEM Equipment Integration: For equipment manufacturers with defined wiring drawings, XUNPU can configure cable length, conductor specifications and related assembly requirements to support batch production and application-specific integration.
1. What is the connector configuration of this M12 extension cable?
The standard configuration described for this product is one M12 9-pin male connector and one M12 9-pin female connector, forming a male-to-female extension assembly.
2. Is the M12 9-Pin Extension Cable waterproof?
Yes. The specified product configuration has an IP67 protection rating, making it suitable for applications requiring dust protection and protection against temporary water exposure under the applicable IP67 conditions.
3. Does the cable use metal threaded connectors?
Yes. Both ends use M12 metal connectors with threaded locking structures. The threaded connection is designed to engage with compatible mating interfaces and provide mechanical retention after proper tightening.
4. What does molded cable construction mean?
Molded cable construction means the connector and cable junction are formed as an integrated molded assembly. This creates a finished connection component with a consistent connector-to-cable transition.
5. Can the cable length be customized?
Yes. XUNPU can customize the cable length according to the required installation distance, equipment layout and customer specifications.
6. Can the conductor specifications be customized?
Yes. Conductor and cable specifications can be discussed according to the electrical requirements, wiring diagram and application conditions of the customer's equipment.
7. Where can this M12 9-pin extension cable be used?
Typical applications include compatible industrial automation systems, sensor wiring, energy storage equipment, electric mobility equipment, machine control systems and OEM equipment assemblies.
8. Is this cable suitable for vibrating equipment?
The metal threaded locking structure is intended to provide a mechanically secured connection when properly mated and tightened, making it suitable for compatible equipment where vibration or movement is part of the operating environment.
9. Can XUNPU manufacture this cable according to customer drawings?
Yes. XUNPU supports application-specific cable assemblies and can develop configurations based on customer drawings, including cable length, conductor specifications and connector requirements.
10. What information should be provided for a customized M12 cable?
Customers can provide the required connector configuration, cable length, conductor specifications, wiring definition, equipment interface and application requirements. Technical details can then be confirmed according to the project requirements.
