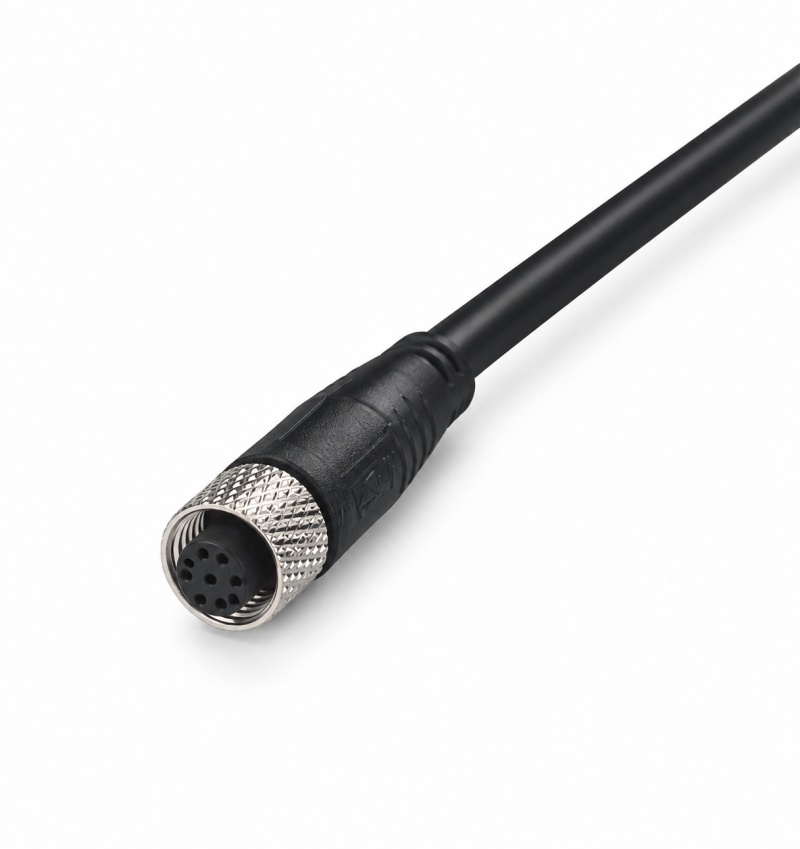

The Ebike 9-Pin 1-to-3 Waterproof Wiring Harness is an integrated electrical cable assembly developed for electric bicycles that require a centralized main connection with three downstream wiring paths. Rather than routing several independent cables through the bicycle frame, this harness combines the required connections into one structured assembly, helping manufacturers create a more orderly electrical installation.
The nine-pin main interface is designed to accommodate compatible multi-circuit e-bike electrical connections, while the 1-to-3 branch configuration provides three separate cable paths for connected components. This arrangement can be adapted to different electrical architectures depending on the controller, motor and auxiliary components used in the specific bicycle model.
The waterproof-oriented construction is intended for electric bicycles operating in outdoor environments where wiring may encounter humidity, water splash or changing weather conditions. The complete waterproof performance depends on the connector design, cable construction and finished assembly, so the required protection level should be confirmed according to the final application.
Beyond its electrical connection role, the harness is also designed to support practical cable management during e-bike assembly. The three branches can be positioned according to the locations of compatible components, allowing the wiring system to follow the actual structure of the bicycle frame rather than relying on excessive cable loops or multiple independent harnesses.
Product Name: Ebike 9-Pin 1-to-3 Waterproof Wiring Harness
Product Type: Multi-branch wiring harness for electric bicycles
Main Interface: 9-pin electrical connector configuration
Wiring Structure: One main connection with three branch outputs
Branch Format: 1-to-3 cable distribution structure
Application: Compatible electric bicycle electrical systems
Environmental Design: Waterproof-oriented construction for suitable outdoor e-bike applications
Cable Length: Configurable according to installation distance and bicycle frame requirements
Branch Length: Can be adjusted according to the position of connected electrical components
Connector Configuration: Available according to the required e-bike interface and wiring architecture
Customization: Cable length, branch dimensions, connector arrangement, conductor configuration and termination details can be developed for OEM requirements.
The exact voltage rating, current capacity, conductor gauge, pin assignment, connector specifications and waterproof protection level should be confirmed according to the customer's electrical system and final product configuration.

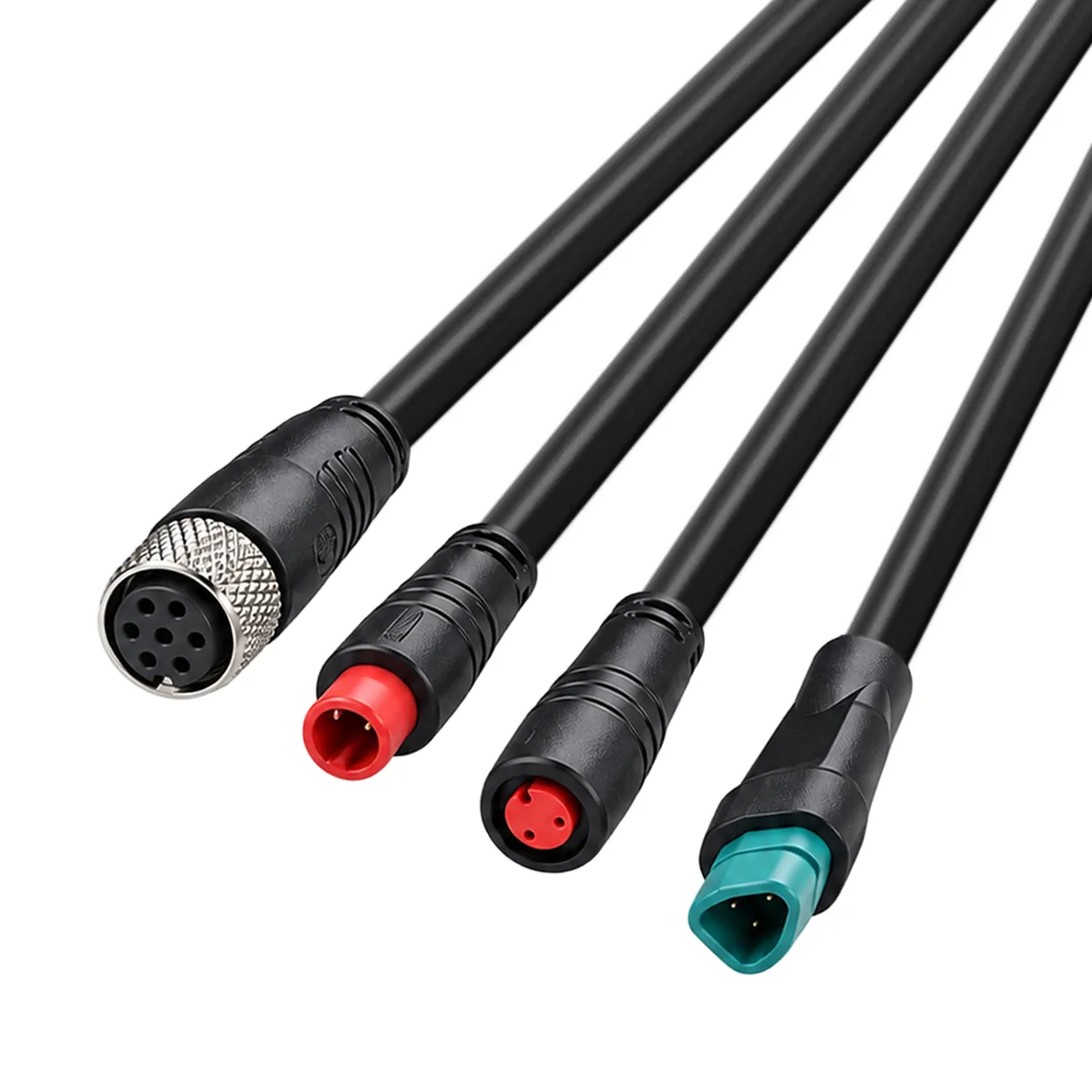

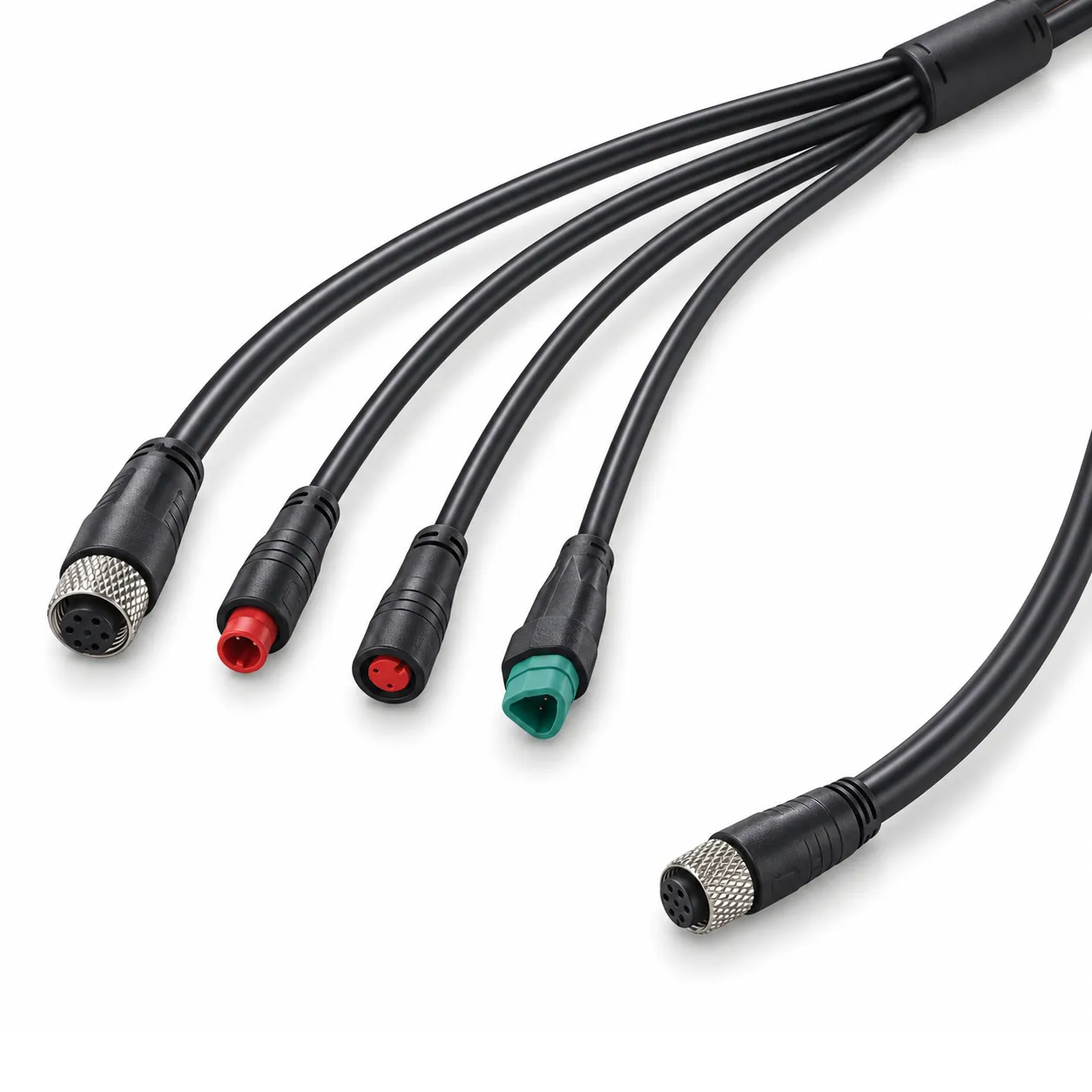

Three-Branch Electrical Architecture: The 1-to-3 structure brings three connection paths together within one harness, making it suitable for e-bike designs that require several coordinated electrical connections.
Nine-Pin Main Connection: The 9-pin interface provides a dedicated multi-contact connection point for compatible electric bicycle electrical systems and can be configured around the customer's wiring requirements.
Integrated Harness Construction: The three branches are assembled as one cable harness rather than separate loose wires, creating a more manageable component for bicycle assembly and electrical integration.
Waterproof-Oriented Design: The harness is developed for compatible applications where exposure to outdoor moisture and water splash needs to be considered during cable system design.
Cleaner Internal Routing: The branch structure can help guide individual cable paths toward their respective components, reducing unnecessary crossing and improving the organization of wiring inside the e-bike.
Model-Specific Cable Configuration: Different bicycle models can require different branch distances. XUNPU can develop cable dimensions around the customer's frame structure and component arrangement.
Production-Oriented Assembly: A prepared main harness can reduce the amount of individual cable handling required during e-bike assembly and provide a consistent wiring component for repeated production.
OEM Customization: The harness can be developed from customer drawings, samples, wiring diagrams or specified electrical interfaces for application-specific projects.
The primary function of the Ebike 9-Pin 1-to-3 Waterproof Wiring Harness is to create a centralized electrical connection point from which three compatible wiring paths can be routed. This allows multiple electrical components to be integrated into an e-bike wiring architecture through a single prepared harness.
The harness can also serve as a cable distribution component. Instead of independently installing several cables from different points of the electrical system, the 1-to-3 configuration provides a predefined branch arrangement that can be positioned according to the bicycle's internal layout.
For e-bike manufacturers, the harness can contribute to more consistent assembly procedures. A correctly configured harness can be supplied as a ready-to-install component, allowing production personnel to follow a defined wiring arrangement rather than manually creating multiple individual connections during assembly.
The harness also provides flexibility when different components need to be located at different positions within the bicycle. Customized branch lengths can help accommodate variations in frame dimensions, electrical compartment layouts and component placement.
E-Bike Main Wiring Systems: The harness can be integrated into compatible electric bicycle electrical architectures as a centralized main wiring component connecting multiple downstream circuits.
Controller-Based Electrical Systems: In compatible designs, the harness can be incorporated around the controller wiring architecture to distribute connections toward multiple electrical components. The actual pin assignment must match the controller system.
Motor-Related Wiring: The three branch configuration can be evaluated for compatible motor-related connections when the connector type, electrical characteristics and wiring assignment correspond to the motor system.
Electric Bicycle Manufacturing: E-bike production facilities can use a preassembled main harness to simplify wiring operations and maintain a consistent connection arrangement across compatible bicycle models.
Urban Commuter E-Bikes: For commuter-oriented bicycle designs, the harness can help organize internal electrical connections while accommodating the compact space available inside the frame.
Outdoor E-Bike Applications: The waterproof-oriented construction is intended for compatible bicycles used in outdoor environments where moisture exposure and water splash are considerations in electrical system design.
E-Bike Replacement Wiring: The harness can be evaluated as a replacement component when an existing main wiring assembly requires a compatible 9-pin, multi-branch configuration.
OEM Electric Mobility Projects: Manufacturers can specify branch lengths, cable routing and connector arrangements according to individual bicycle platforms, electrical diagrams and production requirements.
1. What is an Ebike 9-Pin 1-to-3 Waterproof Wiring Harness?
It is an integrated e-bike cable assembly with a 9-pin main connection and three branch wiring paths. It is designed to organize multiple compatible electrical connections within an electric bicycle.
2. What does 1-to-3 mean?
The term 1-to-3 refers to the physical harness arrangement, where one main wiring connection is distributed into three separate cable branches. The electrical purpose of each branch depends on the customer's system design.
3. Why use a 1-to-3 harness instead of separate cables?
A prepared multi-branch harness can make internal wiring more organized and reduce the number of individual cable assemblies that need to be routed and installed separately.
4. Is the harness compatible with all e-bikes?
No. Compatibility depends on the connector interface, pin assignment, electrical specifications and wiring architecture of the particular bicycle. These details should be checked before ordering.
5. Is this a waterproof wiring harness?
The product is designed with a waterproof-oriented construction for suitable e-bike applications. The actual waterproof protection level depends on the complete cable and connector configuration and should be confirmed for the intended operating environment.
6. Can the three branch lengths be customized?
Yes. XUNPU can develop different branch lengths according to the positions of the controller, motor and other compatible components within the bicycle frame.
7. Can the connector configuration be customized?
Connector configurations can be discussed according to the customer's existing electrical interfaces, wiring diagrams, product drawings or samples. Final compatibility needs to be confirmed before production.
8. Can this harness be used as an e-bike controller main cable?
It may be suitable for compatible controller-related wiring systems where the 9-pin interface, circuit assignment and electrical specifications match the application. XUNPU can review the wiring information provided by the customer.
9. Can XUNPU produce customized versions?
Yes. XUNPU can develop customized e-bike wiring harnesses based on customer requirements, including cable length, branch dimensions, connector configuration, conductor arrangement and termination details.
10. What information is needed for a customized harness?
Customers can provide connector specifications, pin assignment, cable length, branch dimensions, wiring diagrams, drawings, samples, required quantity and application information. These details allow the harness configuration to be evaluated accurately.
